Chiral gels derived from secondary ammonium salts of (1R,3S)-(+)-camphoric acid

  1. Tapas Kumar Adalder1,
  2. N. N. Adarsh1,
  3. Ravish Sankolli2 and
  4. Parthasarathi Dastidar1

1Indian Association for the Cultivation of Science, Kolkata, India
2Indian Institute of Science, Bangalore, India

  1. Author email
  2. Corresponding author email

Guest Editor: J.-P. Desvergne
Beilstein J. Org. Chem. 2010, 6, 848–858. doi:10.3762/bjoc.6.100
Received 01 Jul 2010, Accepted 09 Sep 2010, Published 21 Sep 2010


In order to have access to chiral gels, a series of salts derived from (1R,3S)-(+)-camphoric acid and various secondary amines were prepared based on supramolecular synthon rationale. Out of seven salts prepared, two showed moderate gelation abilities. The gels were characterized by differential scanning calorimetry, table top rheology, scanning electron microscopy, single crystal and powder X-ray diffraction. Structure property correlation based on X-ray diffraction techniques remain inconclusive indicating that some of the integrated part associated with the gelation phenomena requires a better understanding.

Keywords: crystal engineering; LMOG; single crystal X-ray diffraction; supramolecular gels; supramolecular synthon


A gel is a two component system which is mainly liquid with a very little amount of solid. In gel state, gelator molecules form 3-D networks within which solvent molecules are trapped thus resulting in a gel. Depending on the nature of the network, gels can be of two kinds – chemical or polymeric and physical or supramolecular. While covalent bonds are responsible for the formation of 3-D networks in chemical gels, various non-covalent interactions such as hydrogen bonding, π-π stacking, hydrophobic, van der Waals forces etc. are required to form gel network in supramolecular gels. It is believed that in supramolecular gels, the gelator molecules self-assemble to form self-assembled fibrilar networks (SAFINs) which, by some means, are entangled to form 3-D gel networks within which the solvent molecules are immobilized via capillary force action to form gel. A gel with an organic solvent is called organogel whereas that obtained from water or an aqueous solvent mixture is known as a hydrogel. Among the various classes of supramolecular gelators, interest in low molecular mass organic gelators (LMOGs) [1-10] is a continuous expanding area on account of their various promising applications [11-13]. Broadly, LMOGs are used in cosmetics [14], tissue engineering [15], drug delivery and biomedical applications [16-19], art conservation [20-22], templated synthesis of nanoparticles [23,24], capture and removal of pollutants [25], catalysis [26], sensors [27], electrooptics/photonics [28], structure-directing agents [29,30] etc. The gelator molecules form SAFINs typically when a hot solution containing a small amount of gelator is cooled below a critical temperature (sol-gel temperature); the SAFINs then start to entangle themselves to form a three dimensional network within which the solvent molecules are immobilized by capillary force interactions resulting in gel formation. The elegance of a LMOG lies in the reversible nature of the gel forming network and it is possible to tune the physical properties of the gel by applying external stimuli such as temperature, pH, sound waves [31], anions [32] etc.

The lack of understanding of the mechanism of gel formation at the molecular level makes it difficult to design a gelator. Most of gelling agents have been discovered serendipitously or derived from a known gelator scaffold. But recent advances in the supramolecular chemistry [33] and crystal engineering [34] has made it possible to design a gelator molecule in a rational manner by exploiting a supramolecular synthon [35] approach, at least for certain classes of gelling agents [3]. We have shown by correlating many single crystal structures of organic salts derived from various organic acids (both mono- and di-basic) and amines (both primary and secondary) with their gelling and non-gelling behavior that 1-D and 2-D forming supramolecular synthons such as secondary ammonium monocarboxylate (SAM) [36,37], secondary ammonium dicarboxylate (SAD) [38,39], primary ammonium monocarboxylate (PAM) [40,41] and primary ammonium dicarboxylate (PAD) [42,43] appear to play a crucial role in gel formation (Scheme 1).


Scheme 1: Different types of 1-D and 2-D HBN forming supramolecular synthons.

In the present work we intend to exploit SAD synthons to make chiral gels. Supramolecular chirality is an important aspect in the development of chiral catalysts [26], chiro-optical switches [44], helical crystallization of proteins and inorganic replicas [45], chiral resolution [46] etc. For this purpose, we have reacted a dibasic acid such as (1R,3S)-(+)-camphoric acid with various secondary amines namely, dicyclohexylamine (DCHA), dipropylamine (DPA), dibutylamine (DBUA), diisobutylamine (DIBUA), dihexylamine (DHA), dibenzylamine (DBA) and di-sec-butylamine (DSBUA) in a 1:2 molar ratio (Scheme 2).


Scheme 2: Salts studied in the present report.

These salts were then used in gelation studies and the resulting gels characterized by table top rheology, differential scanning calorimetry (DSC), scanning electron microscopy (SEM), single- and powder X-ray diffraction (SXRD and PXRD, respectively). Single crystal structures of two gelators and one nongelator, i.e., DBUAMC 3, DBAMC 6, and DCHADC 1, respectively were determined and discussed in the context of structure-property correlation.

Results and Discussions


The salts were isolated as crystalline solids by the slow evaporation of a methanolic solution of the acid and the corresponding amine taken in an appropriate molar ratio. FT-IR spectra indicated that both the protons of the dicarboxylic acids were absent as was evident from the presence of the characteristic band of COO (1622–1635 cm−1) and absence of COOH (1699 cm−1) in salts 1, 2, 4 and 5. However, the presence of FT-IR bands at 1701, 1631 cm−1 for salt 3, 1705, 1548 cm−1 for salt 6 and 1701, 1620 cm−1 for salt 7 clearly indicated that 1:1 acid:amine salts were formed in these cases; satisfactory elemental analysis also support the formation of 1:1 salts 6 and 7 when the corresponding acid and the amines were deliberately reacted in a 1:1 molar ratio. However, that was not the case with salt 3 whose elemental analysis data did not match a 1:1 stoichiometry (see Experimental).

Gelation Studies

All the salts were scanned for gelation in various solvents. In a typical procedure, 20 mg of a salt was taken in a test tube (10 mm × 100 mm) and dissolved in 0.5 ml of the solvent of choice by heating on a hot plate. The gel was obtained by keeping the solution undisturbed under ambient conditions (Table 1).

Table 1: Gelation data (CS = Clear solution, GP = Gelatinous precipitate, FC = Fibrous crystal, CP = crystalline precipitate, AP = Amorphous precipitate, WP = White precipitate, YP = Yellow precipitate, PG = Partial gel, WG = Weak gel, FGN = Fibrous gelatinous network, PLC = plate like crystal, WT = White turbidity).

  MGC/Wt % MGC/Wt % MGC/Wt %
MGC/Wt % MGC/Wt % MGC/Wt %
MGC/Wt %
Bromobenzene CS FC PG FGP WT 4.00 (98) FC
Chlorobenzene CS WP PG FGP WT 4.00 (110) FC
1,2-Dichloro-benzene CS FC PG FC WT 2.22 (106) FC
Mesitylene CS CS GP CS CS WP CS
Nitrobenzene GP YP 4.00 (78) PLC WG YP FC
1,4-Dioxane FC WP FGN FC WG AP CS
Methylsalicylate CS CS WG PLC CS WP SC

The salts DBUAMC 3 and DBAMC 6 gave stable gels with polar solvents such as nitrobenzene, and bromobenzene, chlorobenzene and 1,2-dichlorobenzene, respectively. The salt DBUAMC 3 also gave a partial gel (PG) with bromobenzene, chlorobenzene, 1,2-dichlorobenzene; a gel is called PG when the top layer of the solution becomes gel-like entrapping the flowing liquid underneath [47]. DHADC 5 gave a weak gel with nitrobenzene and 1,4 dioxane. Representative photomicrographs of the organogels are depicted in Figure 1.


Figure 1: Photomicrographs of the organogels (from left to right: nitrobenzene gel of DBUAMC 3; 1,2-dichlorobenzene gel of DBAMC 6; chlorobenzene gel of DBAMC 6; bromobenzene gel of DBAMC 6).

To ascertain the thermoreversibility of the gel network, DSC was recorded on a selected gel sample derived from a ~4.0 wt % 1,2-dichlorobenzene solution of DBAMC 6 (Figure 2).


Figure 2: DSC of a 4.0 wt % 1,2-dichlorobenzene gel of DBAMC 6.

It is clear from the DSC data that the gelation was indeed thermoreversible. However, both the sol-gel and gel-sol transitions occur over a broad range of temperature making it difficult to assess the enthalpy change associated with this process. To get some idea about the enthalpy change associated with gel-sol, we carried out table top rheology [48] on some selected gels (Figure 3).


Figure 3: LeftTgel vs [gelator] plot; right – semilog plot of mole fraction of the gelators against 1/T; 1,2-Dichlorobenzene and nitrobenzene gels were used for DBAMC 6 and DBUAMC 3, respectively.

Tgel (gel-sol dissociation temperature) vs [gelator] plots on some selected gels displayed a steady increase of Tgel with the increase in [gelator] which indicated that, in the present cases, self-assembly in the gel state was driven by strong supramolecular interactions such as hydrogen bonding. Application of the Schroeder-van Laar equation (Equation 1) resulted in a linear semilog plot (Figure 3), when the mole fraction of the gelator at each concentration was plotted against 1/Tgel K−1.


Where ΔHm and Tgel are the enthalpy change and temperature associated with the gel-sol transition process, respectively and R is universal gas constant. Here it is considered that gel-sol transition is first order in nature on the assumption that the gel melts into an ideal solution wherein the exact amount of gel involved in the transition is known. The calculated ΔH value for DBAMC 6 is 60.9 kJ/mol and that of DBUAMC 3 is 56.5 kJ/mol, respectively which clearly indicates that 1,2-dichlorobenzene gel of DBAMC 6 is stronger than the nitrobenzene gel of DBUAMC 3.

To see the morphological features of the gel fibers, some selected xerogels were subjected to SEM (Figure 4). Highly entangled networks of fibers were seen in the chlorobenzene and 1,2-dichlorobenzene xerogels of DBAMC 6, whereas relatively short plate like morphology was observed in the nitrobenzene xerogel of DBUAMC 3. Understandably, the solvent molecules are immobilized in these networks to form gel.


Figure 4: SEM micrographs of the xerogels. (a) & (b) 0.5 wt % 1,2-dichlorobenzene gel of DBAMC 6; (c) 0.8 wt % chlorobenzene gel of DBAMC 6; d) 0.5 wt % nitrobenzene gel of DBUAMC 3.

To prove structure-property correlation in these gelators, we tried to crystallize as many salts as possible. However, our best efforts resulted in the crystallization of only three salts, DBUAMC 3, DBAMC 6 and DCHADC 1, which were examined by single crystal X-ray diffraction (Table 2).

Table 2: Crystallographic data.

Crystal parameters DBUAMC 3 DBAMC 6 DCHADC 1
Empirical formula C18H33NO4 C24H31NO4 C34H62N2O4
Formula weight 327.45 397.50 562.86
Crystal size/mm 0.46 × 0.38 × 0.28 0.24 × 0.19 × 0.12 0.28 × 0.16 × 0.12
Crystal system Orthorhombic Monoclinic Monoclinic
Space group P212121 P21 P21
a / Å 8.6977(9) 6.6454(3) 12.2424(15)
b / Å 12.5877(13) 17.9624(9) 17.278(2)
c / Å 18.8825(19) 9.3062(4) 16.7260(19)
α / ° 90.00 90.00 90.00
β / ° 90.00 98.981(4) 98.199(2)
γ / ° 90.00 90.00 90.00
Volume / Å3 2067.3(4) 1097.24(9) 3501.8(7)
Z 4 2 4
F(000) 720 428 1248
μ MoKα / mm−1 0.073 0.081 0.068
Temperature / K 298(2) 100(2) 298(2)
Rint 0.0368 0.0397 0.0453
Range of h, k, l −10/10, −14/9, −17/22 −10/10, −7/7, −18/17 −12/13, −18/13, −17/16
θmin / max / ° 1.94 /25.00 2.49/26.00 1.23 / 22.50
Reflections collected/unique/observed [I>2σ(I)] 8622 /3609 /3015 11570/4209/2685 11933/6369/5344
Data/restraints/parameters 3609/0/204 4209/1/266 6369/1/727
Goodness of fit on F2 1.090 0.923 1.219
Final R indices [I>2σ(I)] R1 = 0.0724
wR2 = 0.2043
R1 = 0.0462
wR2 = 0.1039
R1 = 0.1042
wR2 = 0.2406
R indices (all data) R1 = 0.0820
wR2 = 0.2230
R1 = 0.0845
wR2 = 0.1153
R1 = 0.1194
wR2 = 0.2529

The crystal of DBUAMC 3 isolated from ethylene glycol/methanol mixture belongs to the orthorhombic space group P212121. The carboxylic acid moiety shows the C–O distances as 1.241(3)–1.272(3) and 1.197(4)–1.300(4) Å which is indicative of the presence of both COOH and COO. FT-IR data also support this observation (1701 and 1631 cm−1). The presence of a secondary ammonium cation is also evident from the strong peak at 2960 cm−1 with multiple bands extending to 2411 cm−1. In the crystal structure, the butylammonium cation is disordered over two positions. The strongest hydrogen bonding donor, the charge assisted secondary ammonium cation, form hydrogen bonds with the strongest hydrogen bonding acceptor COO; interestingly, the COO forms hydrogen bonding with two crystallographically equivalent dibutylammonium cations [N…O = 2.725(7)–3.040(6) Å]. On the other hand, the COOH moiety forms hydrogen bonding only with COO [O…O = 2.614(3) Å; [Graphic 1] O–H…O = 176.9°]. Such hydrogen bonding interactions lead to the formation of a 3-D hydrogen bonded network (Figure 5).

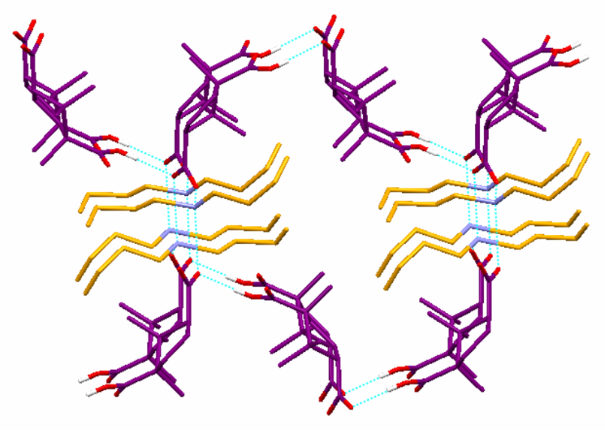

Figure 5: Crystal structure illustration of DBUAMC 3; 3-D hydrogen bonded network; only one part of the disordered ammonium cation and hydrogen atom associated with carboxylic moiety are shown for clarity.
