Chiral gels derived from secondary ammonium salts of (1R,3S)-(+)-camphoric acid

Tapas Kumar Adalder1, N. N. Adarsh1, Ravish Sankolli2 and Parthasarathi Dastidar1
1Indian Association for the Cultivation of Science, Kolkata, India
2Indian Institute of Science, Bangalore, India
Email of author Author email      Email of corresponding author Corresponding author email
Guest Editor: J.-P. Desvergne
Beilstein J. Org. Chem. 2010, 6, 848–858.
doi:10.3762/bjoc.6.100





Abstract

In order to have access to chiral gels, a series of salts derived from (1R,3S)-(+)-camphoric acid and various secondary amines were prepared based on supramolecular synthon rationale. Out of seven salts prepared, two showed moderate gelation abilities. The gels were characterized by differential scanning calorimetry, table top rheology, scanning electron microscopy, single crystal and powder X-ray diffraction. Structure property correlation based on X-ray diffraction techniques remain inconclusive indicating that some of the integrated part associated with the gelation phenomena requires a better understanding.

Keywords: crystal engineering; LMOG; single crystal X-ray diffraction; supramolecular gels; supramolecular synthon

Top

Introduction

A gel is a two component system which is mainly liquid with a very little amount of solid. In gel state, gelator molecules form 3-D networks within which solvent molecules are trapped thus resulting in a gel. Depending on the nature of the network, gels can be of two kinds – chemical or polymeric and physical or supramolecular. While covalent bonds are responsible for the formation of 3-D networks in chemical gels, various non-covalent interactions such as hydrogen bonding, π-π stacking, hydrophobic, van der Waals forces etc. are required to form gel network in supramolecular gels. It is believed that in supramolecular gels, the gelator molecules self-assemble to form self-assembled fibrilar networks (SAFINs) which, by some means, are entangled to form 3-D gel networks within which the solvent molecules are immobilized via capillary force action to form gel. A gel with an organic solvent is called organogel whereas that obtained from water or an aqueous solvent mixture is known as a hydrogel. Among the various classes of supramolecular gelators, interest in low molecular mass organic gelators (LMOGs) [1-10] is a continuous expanding area on account of their various promising applications [11-13]. Broadly, LMOGs are used in cosmetics [14], tissue engineering [15], drug delivery and biomedical applications [16-19], art conservation [20-22], templated synthesis of nanoparticles [23,24], capture and removal of pollutants [25], catalysis [26], sensors [27], electrooptics/photonics [28], structure-directing agents [29,30] etc. The gelator molecules form SAFINs typically when a hot solution containing a small amount of gelator is cooled below a critical temperature (sol-gel temperature); the SAFINs then start to entangle themselves to form a three dimensional network within which the solvent molecules are immobilized by capillary force interactions resulting in gel formation. The elegance of a LMOG lies in the reversible nature of the gel forming network and it is possible to tune the physical properties of the gel by applying external stimuli such as temperature, pH, sound waves [31], anions [32] etc.

The lack of understanding of the mechanism of gel formation at the molecular level makes it difficult to design a gelator. Most of gelling agents have been discovered serendipitously or derived from a known gelator scaffold. But recent advances in the supramolecular chemistry [33] and crystal engineering [34] has made it possible to design a gelator molecule in a rational manner by exploiting a supramolecular synthon [35] approach, at least for certain classes of gelling agents [3]. We have shown by correlating many single crystal structures of organic salts derived from various organic acids (both mono- and di-basic) and amines (both primary and secondary) with their gelling and non-gelling behavior that 1-D and 2-D forming supramolecular synthons such as secondary ammonium monocarboxylate (SAM) [36,37], secondary ammonium dicarboxylate (SAD) [38,39], primary ammonium monocarboxylate (PAM) [40,41] and primary ammonium dicarboxylate (PAD) [42,43] appear to play a crucial role in gel formation (Scheme 1).

[1860-5397-6-100-i1]

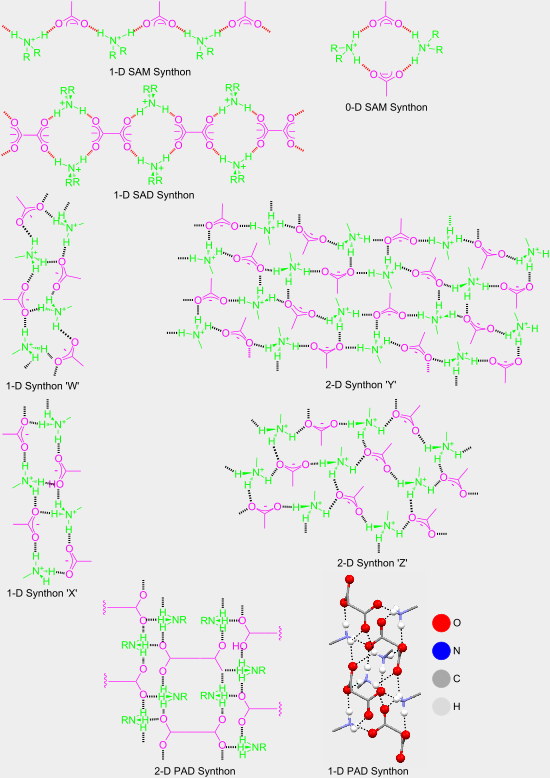

Scheme 1: Different types of 1-D and 2-D HBN forming supramolecular synthons.

In the present work we intend to exploit SAD synthons to make chiral gels. Supramolecular chirality is an important aspect in the development of chiral catalysts [26], chiro-optical switches [44], helical crystallization of proteins and inorganic replicas [45], chiral resolution [46] etc. For this purpose, we have reacted a dibasic acid such as (1R,3S)-(+)-camphoric acid with various secondary amines namely, dicyclohexylamine (DCHA), dipropylamine (DPA), dibutylamine (DBUA), diisobutylamine (DIBUA), dihexylamine (DHA), dibenzylamine (DBA) and di-sec-butylamine (DSBUA) in a 1:2 molar ratio (Scheme 2).

[1860-5397-6-100-i2]

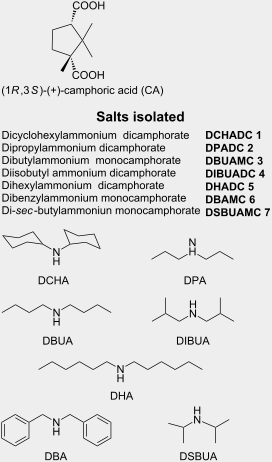

Scheme 2: Salts studied in the present report.

These salts were then used in gelation studies and the resulting gels characterized by table top rheology, differential scanning calorimetry (DSC), scanning electron microscopy (SEM), single- and powder X-ray diffraction (SXRD and PXRD, respectively). Single crystal structures of two gelators and one nongelator, i.e., DBUAMC 3, DBAMC 6, and DCHADC 1, respectively were determined and discussed in the context of structure-property correlation.

Top

Results and Discussions

Synthesis

The salts were isolated as crystalline solids by the slow evaporation of a methanolic solution of the acid and the corresponding amine taken in an appropriate molar ratio. FT-IR spectra indicated that both the protons of the dicarboxylic acids were absent as was evident from the presence of the characteristic band of COO (1622–1635 cm−1) and absence of COOH (1699 cm−1) in salts 1, 2, 4 and 5. However, the presence of FT-IR bands at 1701, 1631 cm−1 for salt 3, 1705, 1548 cm−1 for salt 6 and 1701, 1620 cm−1 for salt 7 clearly indicated that 1:1 acid:amine salts were formed in these cases; satisfactory elemental analysis also support the formation of 1:1 salts 6 and 7 when the corresponding acid and the amines were deliberately reacted in a 1:1 molar ratio. However, that was not the case with salt 3 whose elemental analysis data did not match a 1:1 stoichiometry (see Experimental).

Gelation Studies

All the salts were scanned for gelation in various solvents. In a typical procedure, 20 mg of a salt was taken in a test tube (10 mm × 100 mm) and dissolved in 0.5 ml of the solvent of choice by heating on a hot plate. The gel was obtained by keeping the solution undisturbed under ambient conditions (Table 1).

Table 1: Gelation data (CS = Clear solution, GP = Gelatinous precipitate, FC = Fibrous crystal, CP = crystalline precipitate, AP = Amorphous precipitate, WP = White precipitate, YP = Yellow precipitate, PG = Partial gel, WG = Weak gel, FGN = Fibrous gelatinous network, PLC = plate like crystal, WT = White turbidity).
SolventDCHDC 1DPADC 2DBUAMC 3DIBUADC 4DHADC 5DBAMC 6DSBUAMC 7
 MGC/Wt %MGC/Wt %MGC/Wt %
(Tgel/°C)
MGC/Wt %MGC/Wt %MGC/Wt %
(Tgel/°C)
MGC/Wt %
BromobenzeneCSFCPGFGPWT4.00 (98)FC
ChlorobenzeneCSWPPGFGPWT4.00 (110)FC
1,2-Dichloro-benzeneCSFCPGFCWT2.22 (106)FC
TolueneGPCSCSCSCSAPCS
o-XyleneCSCSCSCSCSAPCS
m-XyleneCSCSGPCSCSCPCS
p-XyleneCSCSGPCSCSCPCS
MesityleneCSCSGPCSCSWPCS
NitrobenzeneGPYP4.00 (78)PLCWGYPFC
1,4-DioxaneFCWPFGNFCWGAPCS
MethylsalicylateCSCSWGPLCCSWPSC
DMSOFCCSFCCSFCCSCS
DMFCPCSFCCSFCCSCS
EGCSCSCSCSCSFCCS

The salts DBUAMC 3 and DBAMC 6 gave stable gels with polar solvents such as nitrobenzene, and bromobenzene, chlorobenzene and 1,2-dichlorobenzene, respectively. The salt DBUAMC 3 also gave a partial gel (PG) with bromobenzene, chlorobenzene, 1,2-dichlorobenzene; a gel is called PG when the top layer of the solution becomes gel-like entrapping the flowing liquid underneath [47]. DHADC 5 gave a weak gel with nitrobenzene and 1,4 dioxane. Representative photomicrographs of the organogels are depicted in Figure 1.

[1860-5397-6-100-1]

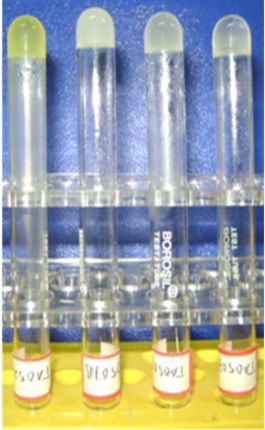

Figure 1: Photomicrographs of the organogels (from left to right: nitrobenzene gel of DBUAMC 3; 1,2-dichlorobenzene gel of DBAMC 6; chlorobenzene gel of DBAMC 6; bromobenzene gel of DBAMC 6).

To ascertain the thermoreversibility of the gel network, DSC was recorded on a selected gel sample derived from a ~4.0 wt % 1,2-dichlorobenzene solution of DBAMC 6 (Figure 2).

[1860-5397-6-100-2]

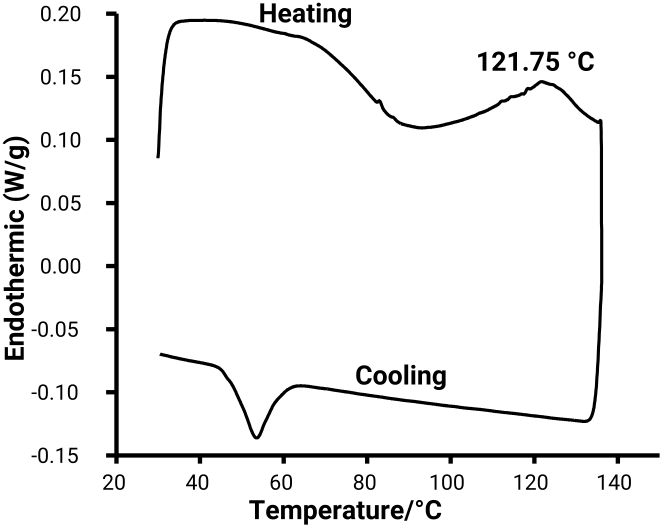

Figure 2: DSC of a 4.0 wt % 1,2-dichlorobenzene gel of DBAMC 6.

It is clear from the DSC data that the gelation was indeed thermoreversible. However, both the sol-gel and gel-sol transitions occur over a broad range of temperature making it difficult to assess the enthalpy change associated with this process. To get some idea about the enthalpy change associated with gel-sol, we carried out table top rheology [48] on some selected gels (Figure 3).

[1860-5397-6-100-3]

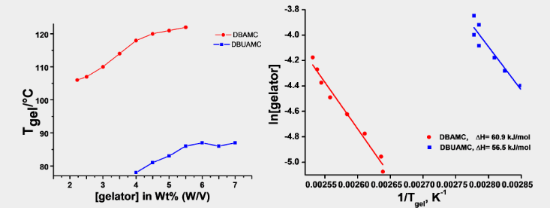

Figure 3: LeftTgel vs [gelator] plot; right – semilog plot of mole fraction of the gelators against 1/T; 1,2-Dichlorobenzene and nitrobenzene gels were used for DBAMC 6 and DBUAMC 3, respectively.

Tgel (gel-sol dissociation temperature) vs [gelator] plots on some selected gels displayed a steady increase of Tgel with the increase in [gelator] which indicated that, in the present cases, self-assembly in the gel state was driven by strong supramolecular interactions such as hydrogen bonding. Application of the Schroeder-van Laar equation (Equation 1) resulted in a linear semilog plot (Figure 3), when the mole fraction of the gelator at each concentration was plotted against 1/Tgel K−1.

[1860-5397-6-100-i3](1)

Where ΔHm and Tgel are the enthalpy change and temperature associated with the gel-sol transition process, respectively and R is universal gas constant. Here it is considered that gel-sol transition is first order in nature on the assumption that the gel melts into an ideal solution wherein the exact amount of gel involved in the transition is known. The calculated ΔH value for DBAMC 6 is 60.9 kJ/mol and that of DBUAMC 3 is 56.5 kJ/mol, respectively which clearly indicates that 1,2-dichlorobenzene gel of DBAMC 6 is stronger than the nitrobenzene gel of DBUAMC 3.

To see the morphological features of the gel fibers, some selected xerogels were subjected to SEM (Figure 4). Highly entangled networks of fibers were seen in the chlorobenzene and 1,2-dichlorobenzene xerogels of DBAMC 6, whereas relatively short plate like morphology was observed in the nitrobenzene xerogel of DBUAMC 3. Understandably, the solvent molecules are immobilized in these networks to form gel.

[1860-5397-6-100-4]

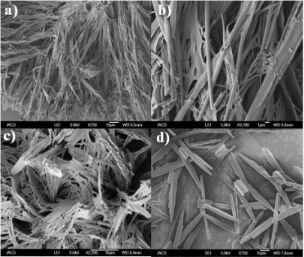

Figure 4: SEM micrographs of the xerogels. (a) & (b) 0.5 wt % 1,2-dichlorobenzene gel of DBAMC 6; (c) 0.8 wt % chlorobenzene gel of DBAMC 6; d) 0.5 wt % nitrobenzene gel of DBUAMC 3.

To prove structure-property correlation in these gelators, we tried to crystallize as many salts as possible. However, our best efforts resulted in the crystallization of only three salts, DBUAMC 3, DBAMC 6 and DCHADC 1, which were examined by single crystal X-ray diffraction (Table 2).

Table 2: Crystallographic data.
Crystal parametersDBUAMC 3DBAMC 6DCHADC 1
Empirical formulaC18H33NO4C24H31NO4C34H62N2O4
Formula weight327.45397.50562.86
Crystal size/mm0.46 × 0.38 × 0.280.24 × 0.19 × 0.120.28 × 0.16 × 0.12
Crystal systemOrthorhombicMonoclinicMonoclinic
Space groupP212121P21P21
a / Å8.6977(9)6.6454(3)12.2424(15)
b / Å12.5877(13)17.9624(9)17.278(2)
c / Å18.8825(19)9.3062(4)16.7260(19)
α / °90.0090.0090.00
β / °90.0098.981(4)98.199(2)
γ / °90.0090.0090.00
Volume / Å32067.3(4)1097.24(9)3501.8(7)
Z424
F(000)7204281248
μ MoKα / mm−10.0730.0810.068
Temperature / K298(2)100(2)298(2)
Rint0.03680.03970.0453
Range of h, k, l−10/10, −14/9, −17/22−10/10, −7/7, −18/17−12/13, −18/13, −17/16
θmin / max / °1.94 /25.002.49/26.001.23 / 22.50
Reflections collected/unique/observed [I>2σ(I)]8622 /3609 /301511570/4209/268511933/6369/5344
Data/restraints/parameters3609/0/2044209/1/2666369/1/727
Goodness of fit on F21.0900.9231.219
Final R indices [I>2σ(I)]R1 = 0.0724
wR2 = 0.2043
R1 = 0.0462
wR2 = 0.1039
R1 = 0.1042
wR2 = 0.2406
R indices (all data)R1 = 0.0820
wR2 = 0.2230
R1 = 0.0845
wR2 = 0.1153
R1 = 0.1194
wR2 = 0.2529

The crystal of DBUAMC 3 isolated from ethylene glycol/methanol mixture belongs to the orthorhombic space group P212121. The carboxylic acid moiety shows the C–O distances as 1.241(3)–1.272(3) and 1.197(4)–1.300(4) Å which is indicative of the presence of both COOH and COO. FT-IR data also support this observation (1701 and 1631 cm−1). The presence of a secondary ammonium cation is also evident from the strong peak at 2960 cm−1 with multiple bands extending to 2411 cm−1. In the crystal structure, the butylammonium cation is disordered over two positions. The strongest hydrogen bonding donor, the charge assisted secondary ammonium cation, form hydrogen bonds with the strongest hydrogen bonding acceptor COO; interestingly, the COO forms hydrogen bonding with two crystallographically equivalent dibutylammonium cations [N…O = 2.725(7)–3.040(6) Å]. On the other hand, the COOH moiety forms hydrogen bonding only with COO [O…O = 2.614(3) Å; [Graphic 1] O–H…O = 176.9°]. Such hydrogen bonding interactions lead to the formation of a 3-D hydrogen bonded network (Figure 5).

[1860-5397-6-100-5]
Figure 5: Crystal structure illustration of DBUAMC 3; 3-D hydrogen bonded network; only one part of the disordered ammonium cation and hydrogen atom associated with carboxylic moiety are shown for clarity.

Crystals of DBAMC 6 suitable for single crystal X-ray diffraction study were grown from mesitylene. It crystallized in the non-centrosymmetric monoclinic space group P21. The C–O distances of the carboxylic acid moieties are 1.237(2)–1.270(3) Å and 1.193(3)–1.309(3) Å indicating that only one COOH group is deprotonated. This is also evident in the FT-IR spectra of 6 wherein bands characteristic of COOH (1705 cm−1) and COO (1548 cm−1) were observed. A strong band at 2974 cm−1 with multiple bands extending to 2445 cm−1 also supports the existence of secondary ammonium cation. In the crystal structure, the strongest hydrogen bonding donor, the charge assisted secondary ammonium cation, and the acceptor (the carboxylate anion) are involved in hydrogen bonding [N…O = 2.711(2)–2.752(2) Å; [Graphic 1] N+–H…O = 161.3–168.6°] resulting in 1-D hydrogen bonded network. The COOH group bridges such 1-D chains by O–H…O hydrogen bonding [O…O = 2.570(2) Å; [Graphic 1] O–H…O = 161.38°] involving COOH and COO resulting into a overall 2-D hydrogen bonded sheet that runs along the c-axis. The 2-D sheets are further packed in a parallel fashion along the b-axis sustained by weak π-π stacking interactions (3.926 Å) involving the phenyl groups of the neighboring 2-D sheets (Figure 6).

[1860-5397-6-100-6]
Figure 6: Crystal structure illustrations of DBAMC 6; top – propagation 1-D network involving ammonium and carboxylate ions; bottom – overall 2-D hydrogen bonded network.

Crystals of DCHADC 1 was grown from m-xylene. It was crystallized in the non-centrosymmetric monoclinic space group P21. The C–O distance of the carboxylic acid moieties are 1.226(10)–1.259(10)) Å and 1.226(10)–1.233(11) Å indicating that both the COOH groups are deprotonated which is consistent with the FT-IR data. The appearance of one band at 1622 cm−1 and absence of COOH band at 1699 cm−1 for the parent acid suggest that both the carboxylic acid groups are deprotonated. A strong band at 2928 cm−1 with multiple bands extending to 2362 cm−1 also supports the existence of secondary ammonium cation. In the crystal structure, the strongest hydrogen bonding donor, the charge assisted secondary ammonium cation, and the acceptor – the carboxylate anion – undergo hydrogen bonding [N…O = 2.653(9)–2.742(10) Å; [Graphic 1] N+–H…O = 159.5–169.1°] resulting in 1-D zigzag hydrogen bonded network. Because of the bifunctionality of the camphorate moiety, this network propagates in one direction, resulting in 1-D zigzag networks, which are arranged in a parallel fashion in the crystal lattice (Figure 7).

[1860-5397-6-100-7]
Figure 7: Illustration of crystal structure of DCHADC 1; top – 1-D hydrogen bonded zigzag chain displaying SAD synthon; bottom – packing of such zigzag chains.

Thus, it is clear that both salts 3 and 6 are1:1 acid:base salts and obviously do not possess SAD moieties, whereas salt 1, which is a 1:2 acid:amine salt, does indeed have a SAD synthon. However, salts 3 and 6 were able to gel a few solvents, whilst salt 1 failed to gel any of the solvents studied herein. It may be recalled here that 2-D hydrogen bonded networks (such as in the salts 3 and 6) have been shown to play a crucial role in gelation [3]. The failure of the salt 1, displaying 1-D SAD synthon, to form gels once again points to the need for a better understanding of gel fiber and solvent interactions.

To see if these crystal structures of 3 and 6 (as discussed above) truly represent the bulk solid as well as the xerogels, we undertook detailed PXRD studies. The comparison plot involving simulated, bulk and xerogel PXRDs for both the salts do not match which indicate the presence of other morphs in the bulk as well as in the corresponding xerogels. The single crystal structure of the salt 1 also appears to be unrepresentative of its bulk as evident from the PXRD comparison plots of the simulated and bulk solid (Figure 8).

[1860-5397-6-100-8]

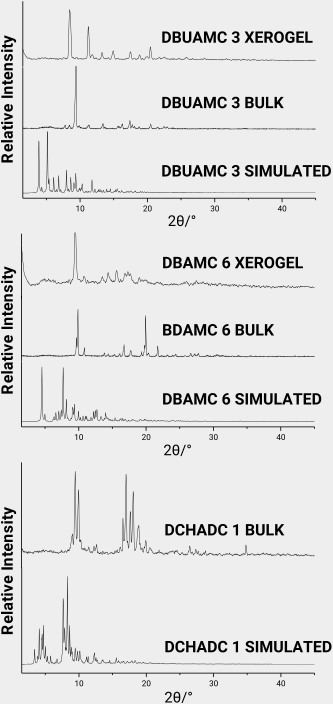

Figure 8: PXRD patterns of salts 3, 6 and 1 under various conditions.
Top

Conclusion

We have synthesized a series of secondary ammonium salts of (1R,3S)-(+)-camphoric acid following the rationale of supramolecular synthon in order to have an easy access to chiral gels. Out of seven salts prepared, four were 1:2 acid:amine salts, whereas the others were 1:1 salts. Two 1:1 salts, i.e., DBUAMC 3 and DBAMC 6 were found to be moderate gelling agents. The rest of the salts were either non-gelators or showed weak gelation abilities. Table top rheology data suggest that the 1,2-dichlorobenzene gel of DBAMC 6 is stronger than the nitrobenzene gel of DBUAMC 3. Attempts to correlate the structure with gelling/non-gelling behavior based on various X-ray diffraction techniques was inconclusive as the PXRD patterns of the simulated, bulk and xerogel do not match in both the gelators. Moreover, salt 1 which displayed 1-D SAD synthon failed to gel any of the solvents studied herein indicating that many factors that might be crucial for gelation such as the nucleation of gel fiber, kinetics of gel fiber growth, their self-assembly to form SAFINs and their interactions with the solvent molecules etc. are needed for a deeper understanding. Although we were successful in achieving an easy access to few chiral gels following this supramolecular synthon approach, this study clearly indicates that some of the integrated parts associated with the gelation phenomena require to be better understood before a straightforward design strategy for synthesizing gelling agents can be formulated.

Top

Experimental

Materials and physical measurements

All the reagents were obtained from various commercial sources (Sigma-Alrdrich, S. D. Fine Chemical,India etc.) and used as such without further purification. Solvents were of L. R. grade (Ranchem, Spectrochem, India etc.) and were used without further distillation. Melting points were determined by Veego programmable melting point apparatus, India. IR spectra were obtained on a FT-IR instrument (FTIR-8300, Shimadzu). The elemental compositions of the purified compounds were confirmed by elemental analysis (Perkin-Elmer Precisely, Series-II, CHNO/S Analyzer-2400). Scanning electron microscopy (SEM) was carried out with a JEOL, JMS-6700F, Field Emission Scanning Electro Microscope. Differential Scanning Calorimetry (DSC) was recorded with a Perkin-Elmer, Diamond DSC. Powder X-ray patterns were recorded on a Bruker AXS D8 Advance Powder (Cu Kα1 radiation, λ = 1.5406 Å) diffractometer.

General Synthetic Procedure

The salts were synthesized by reacting the acid and the corresponding amine in a 1:2 molar ratio (except for DBUAMC 3, DBAMC 6 and DSBUAMC 7 where the stoichiometry of acid and amine were 1:1) in MeOH in a beaker. The resultant mixture was subjected to sonication for a few minutes to ensure the homogeneous mixing of the two components. The resulting mixture was then kept at room temperature from which a white solid was collected in near-quantitative yield after 1–2 days and then subjected to various physicochemical analyses and gelation test. All the salts were fully characterized by FT-IR and elemental analysis (except for DBUAMC 3 for which the elemental analysis data did match; however, other data such as FT-IR and single crystal X-ray indicated the formation of a 1:1 acid:amine salt).

Tgel Measurements

In a typical experiment, the salt was dissolved in the targeted solvent by heating. The solution was then allowed to cool to room temperature. Gel formation was confirmed by tube inversion. Tgel was measured by the dropping ball method; a glass ball weighing 242.0 mg was placed on a 0.5 mL gel in a test tube (10 × 100 mm). The tube was then immersed in an oil bath placed on a magnetic stirrer in order to ensure uniform heating. The temperature was noted when the ball touched the bottom of the tube.

Analytical data

DCHADC 1: mp: 169–170 °C; FT-IR (cm−1): 2928, 2854, 2793, 2725, 2698, 2667, 2521, 2440, 2422, 2362, 2343, 2206, 2104, 1622, 1535, 1498, 1452, 1386, 1354, 1311, 1282, 1267, 1236, 1215, 1172, 1124, 1068, 1053, 1033, 1010, 977, 922, 889, 848, 798, 750, 597, 559, 499, 449, 412; Elemental analysis calculated for C34H62N2O4: C, 72.55; H, 11.10; N, 4.98; Found: C, 72.42; H, 11.15; N, 5.05.

DPADC 2: mp: 157–158 °C ; FT-IR (cm−1): 2966, 2939, 2879, 2845, 2806, 2704, 2565, 2443, 1633, 1533, 1467, 1458, 1384, 1354, 1327, 1309, 1280, 1182, 1122, 1057, 916, 877, 798, 756, 690, 551, 532, 482, 434; Elemental analysis calculated for C22H46N2O4: C, 65.63; H, 11.52; N, 6.96; Found: C, 65.62; H, 11.36; N, 6.86.

DBUAMC 3: mp: 167–168 °C ; FT-IR (cm-1): 2960, 2933, 2874, 2837, 2785, 2580, 2478, 2411, 1701, 1631, 1537, 1462, 1383, 1354, 1329, 1311, 1284, 1259, 1172, 1124, 1080, 1057, 993, 914, 792, 754, 736, 476.

DIBUADC 4: mp: 156–158 °C ; FT-IR (cm−1): 2964, 2875, 2850, 2559, 2428, 2360, 2339, 1635, 1535, 1465, 1381, 1352, 1307, 1282, 1172, 1120, 1080, 1035, 993, 796,758, 682, 673, 476, 430; Elemental analysis calculated for C26H54N2O4: C, 68.08; H, 11.87; N, 6.11; Found: C,67.56; H,11.50; N, 5.77.

DHADC 5: mp: 114–115 °C; FT-IR (cm−1): 2958, 2931, 2860, 2575, 2459, 2418, 2364, 2341, 1631, 1539, 1464, 1381, 1354, 1327, 1313, 1280, 1215, 1170, 1122, 1080, 1062, 916, 796, 759, 729, 694, 547, 476; Elemental analysis calculated for C33H68N2O4: C, 71.17; H, 12.31; N, 5.03; Found: C,71.62; H,11.84; N, 4.97.

DBAMC 6: mp: 184 °C; FT-IR (cm−1): 3053, 3032, 2974, 2928, 2879, 2744, 2590, 2445, 1952, 1705, 1548, 1498, 1458, 1396, 1369, 1294, 1234, 1207, 1114, 1082, 1049, 1026, 983, 910, 881, 779, 742, 694, 484, 455. Elemental analysis calculated for C24H31NO4: C, 72.52; H, 7.86; N, 3.52; Found: C, 72.27; H, 7.86; N, 3.37.

DSBUAMC 7: mp: 116–117 °C; FT-IR (cm−1): 2976, 2941, 2881, 2779, 2737, 2600, 2497, 2434, 1701, 1620, 1552, 1456, 1392, 1371, 1300, 1244, 1207, 1112, 1035,1008, 977, 792, 725, 547, 466, 435. Elemental analysis calculated for C18H35NO4: C, 65.62; H, 10.71; N, 4.25; Found: C, 65.62; H, 10.14; N, 4.01.

X-ray single crystal data

Data were collected using MoKα (λ = 0.7107 Å) radiation on a BRUKER APEX II diffractometer equipped with CCD area detector. Data collection, data reduction, structure solution/refinement were carried out using the software package of SMART APEX. All structures were solved by the direct method and refined in a routine manner. In most of the cases, non-hydrogen atoms were treated anisotropically. All the hydrogen atoms were geometrically fixed. CCDC (CCDC No. 782834–782836) contains the supplementary crystallographic data for this paper. These data can be obtained free of charge via http://www.ccdc.cam.ac.uk/conts/retrieving.html (or from the Cambridge Crystallographic Data Centre, 12 Union Road, Cambridge CB21EZ, UK; fax: (+44) 1223-336-033; or deposit@ccdc.cam.ac.uk).

Top

Supporting Information

Supporting Information File 1: Cif file of crystal structure of DBAMC 6.
Format: CIF   Size: 16.9 KB   Download

Supporting Information File 2: Cif file of crystal structure of DBUAMC 3.
Format: CIF   Size: 14.0 KB   Download

Supporting Information File 3: Cif file of crystal structure of DCHADC 1.
Format: CIF   Size: 40.2 KB   Download

Top

Acknowledgements

TKA and PD thank CSIR, New Delhi for a JRF fellowship and financial grant, respectively.

Top

References

  1. Weiss, R. G.; Terech, P., Eds. Molecular Gels. Materials with Self-Assembled Fibrillar Networks; Springer: Dordrecht, The Netherlands, 2005.
    Return to citation in text: [1]
  2. Fages, F., Ed. Low molecular mass gelators: Design, self-assembly, function; Topics in Current Chemistry, Vol. 256; Springer: Berlin, Germany, 2005.
    Return to citation in text: [1]
  3. Dastidar, P. Chem. Soc. Rev. 2008, 37, 2699–2715. doi:10.1039/b807346e
    Return to citation in text: [1] [2] [3]
  4. Abdallah, D. J.; Weiss, R. G. Adv. Mater. 2000, 12, 1237–1247. doi:10.1002/1521-4095(200009)12:17<1237::AID-ADMA1237>3.0.CO;2-B
    Return to citation in text: [1]
  5. Terech, P.; Weiss, R. G. Chem. Rev. 1997, 97, 3133–3160. doi:10.1021/cr9700282
    Return to citation in text: [1]
  6. de Loos, M.; Feringa, B. L.; van Esch, J. H. Eur. J. Org. Chem. 2005, 3615–3631. doi:10.1002/ejoc.200400723
    Return to citation in text: [1]
  7. Sangeetha, N. M.; Maitra, U. Chem. Soc. Rev. 2005, 34, 821–836. doi:10.1039/b417081b
    Return to citation in text: [1]
  8. Suzuki, M.; Hanabusa, K. Chem. Soc. Rev. 2009, 38, 967–975. doi:10.1039/b816192e
    Return to citation in text: [1]
  9. Estroff, L. A.; Hamilton, A. D. Chem. Rev. 2004, 104, 1201–1218. doi:10.1021/cr0302049
    Return to citation in text: [1]
  10. Piepenbrock, M. O. M.; Lloyd, G. O.; Clarke, N.; Steed, J. W. Chem. Rev. 2010, 110, 1960–2004. doi:10.1021/cr9003067
    Return to citation in text: [1]
  11. Hirst, A. R.; Escuder, B.; Miravet, J. F.; Smith, D. K. Angew. Chem., Int. Ed. 2008, 47, 8002–8018. doi:10.1002/anie.200800022
    Return to citation in text: [1]
  12. Smith, D. K. Molecular Gels - Nanostructured Soft Materials. In Organic Nanostructures; Atwood, J. L.; Steed, J. W., Eds.; Wiley-VCH: Weinheim, Germany, 2008.
    Return to citation in text: [1]
  13. Banerjee, S.; Das, R. K.; Maitra, U. J. Mater. Chem. 2009, 19, 6649–6687. doi:10.1039/b819218a
    Return to citation in text: [1]
  14. Wynne, A.; Whitefield, M.; Dixon, A. J.; Anderson, S. J. Dermatol. Treat. 2002, 13, 61–66. doi:10.1080/095466302317584403
    Return to citation in text: [1]
  15. Lee, K. Y.; Mooney, D. J. Chem. Rev. 2001, 101, 1869–1880. doi:10.1021/cr000108x
    Return to citation in text: [1]
  16. Bhuniya, S.; Seo, Y. J.; Kim, B. H. Tetrahedron Lett. 2006, 47, 7153–7156. doi:10.1016/j.tetlet.2006.08.002
    Return to citation in text: [1]
  17. Vemula, P. K.; Cruikshank, G. A.; Karp, J. M.; John, G. Biomaterials 2009, 30, 383–393. doi:10.1016/j.biomaterials.2008.09.045
    Return to citation in text: [1]
  18. Zhao, F.; Ma, M. L.; Xu, B. Chem. Soc. Rev. 2009, 38, 883–891. doi:10.1039/b806410p
    Return to citation in text: [1]
  19. Sreenivasachary, N.; Lehn, J.-M. Chem.–Asian J. 2008, 3, 134–139. doi:10.1002/asia.200700041
    Return to citation in text: [1]
  20. Carretti, E.; Dei, L. In Molecular Gels. Materials with Self-Assembled Fibrillar Networks; Weiss, R. G.; Terech, P., Eds.; Springer: Dordrecht, The Netherlands, 2005; pp 929–938.
    Return to citation in text: [1]
  21. Carretti, E.; Fratini, E.; Berti, D.; Dei, L.; Baglioni, P. Angew. Chem., Int. Ed. 2009, 48, 8966–8969. doi:10.1002/anie.200904244
    Return to citation in text: [1]
  22. Carretti, E.; Grassi, S.; Cossalter, M.; Natali, I.; Caminati, G.; Weiss, R. G.; Baglioni, P.; Dei, L. Langmuir 2009, 25, 8656–8662. doi:10.1021/la804306w
    Return to citation in text: [1]
  23. Palui, G.; Nanda, J.; Ray, S.; Banerjee, A. Chem.–Eur. J. 2009, 6902–6909. doi:10.1002/chem.200900149
    Return to citation in text: [1]
  24. Ray, S.; Das, A. K.; Banerjee, A. Chem. Commun. 2006, 2816–2818. doi:10.1039/b605498f
    Return to citation in text: [1]
  25. Adhikari, B.; Palui, G.; Banerjee, A. Soft Matter 2009, 5, 3452–3460. doi:10.1039/b905985g
    Return to citation in text: [1]
  26. Rodríguez-Llansola, F.; Miravet, J. F.; Escuder, B. Chem. Commun. 2009, 7303–7305. doi:10.1039/b916250j
    Return to citation in text: [1] [2]
  27. Murata, K.; Aoki, M.; Nishi, T.; Ikeda, A.; Shinkai, S. J. Chem. Soc., Chem. Commun. 1991, 1715–1718. doi:10.1039/C39910001715
    Return to citation in text: [1]
  28. Ajayaghosh, A.; Praveen, V. K.; Vijayakumar, C. Chem. Soc. Rev. 2008, 37, 109–122. doi:10.1039/b704456a
    Return to citation in text: [1]
  29. van Bommel, K. J. C.; Friggeri, A.; Shinkai, S. Angew. Chem., Int. Ed. 2003, 42, 980–999. doi:10.1002/anie.200390284
    Return to citation in text: [1]
  30. Sreenivasachary, N.; Lehn, J.-M. Proc. Natl. Acad. Sci. U. S. A. 2005, 102, 5938–5943. doi:10.1073/pnas.0501663102
    Return to citation in text: [1]
  31. Cravotto, G.; Cintas, P. Chem. Soc. Rev. 2009, 38, 2684–2697. doi:10.1039/b901840a
    Return to citation in text: [1]
  32. Maeda, H. Chem.–Eur. J. 2008, 11274–11282. doi:10.1002/chem.200801333
    Return to citation in text: [1]
  33. Lehn, J.-M. Angew. Chem., Int. Ed. 1988, 27, 89–112. doi:10.1002/anie.198800891
    Return to citation in text: [1]
  34. Desiraju, G. R. Angew. Chem., Int. Ed. 2007, 46, 8342–8356. doi:10.1002/anie.200700534
    Return to citation in text: [1]
  35. Desiraju, G. R. Angew. Chem., Int. Ed. 1995, 34, 2311–2327. doi:10.1002/anie.199523111
    Return to citation in text: [1]
  36. Trivedi, D. R.; Dastidar, P. Cryst. Growth Des. 2006, 6, 2114–2121. doi:10.1021/cg060325c
    Return to citation in text: [1]
  37. Trivedi, D. R.; Ballabh, A.; Dastidar, P. J. Mater. Chem. 2005, 15, 2606–2614. doi:10.1039/b504969e
    Return to citation in text: [1]
  38. Sahoo, P.; Kumar, D. K.; Trivedi, D. R.; Dastidar, P. Tetrahedron Lett. 2008, 49, 3052–3055. doi:10.1016/j.tetlet.2008.03.060
    Return to citation in text: [1]
  39. Trivedi, D. R.; Ballabh, A.; Dastidar, P. Cryst. Growth Des. 2006, 6, 763–768. doi:10.1021/cg050590i
    Return to citation in text: [1]
  40. Das, U. K.; Trivedi, D. R.; Adarsh, N. N.; Dastidar, P. J. Org. Chem. 2009, 74, 7111–7121. doi:10.1021/jo901463k
    Return to citation in text: [1]
  41. Ballabh, A.; Adalder, T. K.; Dastidar, P. Cryst. Growth Des. 2008, 8, 4144–4149. doi:10.1021/cg800613d
    Return to citation in text: [1]
  42. Sahoo, P.; Adarsh, N. N.; Chacko, G. E.; Raghavan, S. R.; Puranik, V. G.; Dastidar, P. Langmuir 2009, 25, 8742–8750. doi:10.1021/la9001362
    Return to citation in text: [1]
  43. Ballabh, A.; Trivedi, D. R.; Dastidar, P. Org. Lett. 2006, 8, 1271–1274. doi:10.1021/ol053000i
    Return to citation in text: [1]
  44. Guo, P.; Zhang, L.; Liu, M. Adv. Mater. 2006, 18, 177–180. doi:10.1002/adma.200501047
    Return to citation in text: [1]
  45. Ihara, H.; Takafuji, M.; Sakurai, T. In Encyclopedia of Nanoscience and Nanotechnology; Nalwa, H. S., Ed.; American Scientific Publishers: Stevenson Ranch, CA, 2004; Vol. 9, pp 473–495.
    Return to citation in text: [1]
  46. Bunzen, J.; Kiehne, U.; Benkhäuser-Schunk, C.; Lützen, A. Org. Lett. 2009, 11, 4786–4789. doi:10.1021/ol901958v
    Return to citation in text: [1]
  47. Yamanaka, M.; Fujii, H. J. Org. Chem. 2009, 74, 5390–5394. doi:10.1021/jo900894q
    Return to citation in text: [1]
  48. Raghavan, S. R.; Cipriano, B. H. In Molecular Gels. Materials with Self-Assembled Fibrillar Networks; Weiss, G.; Terech, P., Eds.; Springer: Dordrecht, The Netherlands, 2005; p 241.
    Return to citation in text: [1]
Top
Figure 1: Photomicrographs of the organogels (from left to right: nitrobenzene gel of DBUAMC 3; 1,2-dichlorobenzene gel of DBAMC 6; chlorobenzene gel of DBAMC 6; bromobenzene gel of DBAMC 6). Move  Close
Figure 2: DSC of a 4.0 wt % 1,2-dichlorobenzene gel of DBAMC 6. Move  Close
Figure 3: LeftTgel vs [gelator] plot; right – semilog plot of mole fraction of the gelators against 1/T; 1,2-Dichlorobenzene and nitrobenzene gels were used for DBAMC 6 and DBUAMC 3, respectively. Move  Close
Figure 4: SEM micrographs of the xerogels. (a) & (b) 0.5 wt % 1,2-dichlorobenzene gel of DBAMC 6; (c) 0.8 wt % chlorobenzene gel of DBAMC 6; d) 0.5 wt % nitrobenzene gel of DBUAMC 3. Move  Close
Figure 5: Crystal structure illustration of DBUAMC 3; 3-D hydrogen bonded network; only one part of the disordered ammonium cation and hydrogen atom associated with carboxylic moiety are shown for clarity. Move  Close
Figure 6: Crystal structure illustrations of DBAMC 6; top – propagation 1-D network involving ammonium and carboxylate ions; bottom – overall 2-D hydrogen bonded network. Move  Close
Figure 7: Illustration of crystal structure of DCHADC 1; top – 1-D hydrogen bonded zigzag chain displaying SAD synthon; bottom – packing of such zigzag chains. Move  Close
Figure 8: PXRD patterns of salts 3, 6 and 1 under various conditions. Move  Close
Scheme 1: Different types of 1-D and 2-D HBN forming supramolecular synthons. Move  Close
Scheme 2: Salts studied in the present report. Move  Close
Table 1: Gelation data (CS = Clear solution, GP = Gelatinous precipitate, FC = Fibrous crystal, CP = crystalline precipitate, AP = Amorphous precipitate, WP = White precipitate, YP = Yellow precipitate, PG = Partial gel, WG = Weak gel, FGN = Fibrous gelatinous network, PLC = plate like crystal, WT = White turbidity). Move  Close
SolventDCHDC 1DPADC 2DBUAMC 3DIBUADC 4DHADC 5DBAMC 6DSBUAMC 7
 MGC/Wt %MGC/Wt %MGC/Wt %
(Tgel/°C)
MGC/Wt %MGC/Wt %MGC/Wt %
(Tgel/°C)
MGC/Wt %
BromobenzeneCSFCPGFGPWT4.00 (98)FC
ChlorobenzeneCSWPPGFGPWT4.00 (110)FC
1,2-Dichloro-benzeneCSFCPGFCWT2.22 (106)FC
TolueneGPCSCSCSCSAPCS
o-XyleneCSCSCSCSCSAPCS
m-XyleneCSCSGPCSCSCPCS
p-XyleneCSCSGPCSCSCPCS
MesityleneCSCSGPCSCSWPCS
NitrobenzeneGPYP4.00 (78)PLCWGYPFC
1,4-DioxaneFCWPFGNFCWGAPCS
MethylsalicylateCSCSWGPLCCSWPSC
DMSOFCCSFCCSFCCSCS
DMFCPCSFCCSFCCSCS
EGCSCSCSCSCSFCCS
Table 2: Crystallographic data. Move  Close
Crystal parametersDBUAMC 3DBAMC 6DCHADC 1
Empirical formulaC18H33NO4C24H31NO4C34H62N2O4
Formula weight327.45397.50562.86
Crystal size/mm0.46 × 0.38 × 0.280.24 × 0.19 × 0.120.28 × 0.16 × 0.12
Crystal systemOrthorhombicMonoclinicMonoclinic
Space groupP212121P21P21
a / Å8.6977(9)6.6454(3)12.2424(15)
b / Å12.5877(13)17.9624(9)17.278(2)
c / Å18.8825(19)9.3062(4)16.7260(19)
α / °90.0090.0090.00
β / °90.0098.981(4)98.199(2)
γ / °90.0090.0090.00
Volume / Å32067.3(4)1097.24(9)3501.8(7)
Z424
F(000)7204281248
μ MoKα / mm−10.0730.0810.068
Temperature / K298(2)100(2)298(2)
Rint0.03680.03970.0453
Range of h, k, l−10/10, −14/9, −17/22−10/10, −7/7, −18/17−12/13, −18/13, −17/16
θmin / max / °1.94 /25.002.49/26.001.23 / 22.50
Reflections collected/unique/observed [I>2σ(I)]8622 /3609 /301511570/4209/268511933/6369/5344
Data/restraints/parameters3609/0/2044209/1/2666369/1/727
Goodness of fit on F21.0900.9231.219
Final R indices [I>2σ(I)]R1 = 0.0724
wR2 = 0.2043
R1 = 0.0462
wR2 = 0.1039
R1 = 0.1042
wR2 = 0.2406
R indices (all data)R1 = 0.0820
wR2 = 0.2230
R1 = 0.0845
wR2 = 0.1153
R1 = 0.1194
wR2 = 0.2529
36.Trivedi, D. R.; Dastidar, P. Cryst. Growth Des. 2006, 6, 2114–2121. doi:10.1021/cg060325c
37.Trivedi, D. R.; Ballabh, A.; Dastidar, P. J. Mater. Chem. 2005, 15, 2606–2614. doi:10.1039/b504969e
Go to references 36,37
3.Dastidar, P. Chem. Soc. Rev. 2008, 37, 2699–2715. doi:10.1039/b807346e
Go to reference 3
35.Desiraju, G. R. Angew. Chem., Int. Ed. 1995, 34, 2311–2327. doi:10.1002/anie.199523111
Go to reference 35
46.Bunzen, J.; Kiehne, U.; Benkhäuser-Schunk, C.; Lützen, A. Org. Lett. 2009, 11, 4786–4789. doi:10.1021/ol901958v
Go to reference 46
47.Yamanaka, M.; Fujii, H. J. Org. Chem. 2009, 74, 5390–5394. doi:10.1021/jo900894q
Go to reference 47
44.Guo, P.; Zhang, L.; Liu, M. Adv. Mater. 2006, 18, 177–180. doi:10.1002/adma.200501047
Go to reference 44
45.Ihara, H.; Takafuji, M.; Sakurai, T. In Encyclopedia of Nanoscience and Nanotechnology; Nalwa, H. S., Ed.; American Scientific Publishers: Stevenson Ranch, CA, 2004; Vol. 9, pp 473–495.
Go to reference 45
42.Sahoo, P.; Adarsh, N. N.; Chacko, G. E.; Raghavan, S. R.; Puranik, V. G.; Dastidar, P. Langmuir 2009, 25, 8742–8750. doi:10.1021/la9001362
43.Ballabh, A.; Trivedi, D. R.; Dastidar, P. Org. Lett. 2006, 8, 1271–1274. doi:10.1021/ol053000i
Go to references 42,43
26.Rodríguez-Llansola, F.; Miravet, J. F.; Escuder, B. Chem. Commun. 2009, 7303–7305. doi:10.1039/b916250j
Go to reference 26
38.Sahoo, P.; Kumar, D. K.; Trivedi, D. R.; Dastidar, P. Tetrahedron Lett. 2008, 49, 3052–3055. doi:10.1016/j.tetlet.2008.03.060
39.Trivedi, D. R.; Ballabh, A.; Dastidar, P. Cryst. Growth Des. 2006, 6, 763–768. doi:10.1021/cg050590i
Go to references 38,39
40.Das, U. K.; Trivedi, D. R.; Adarsh, N. N.; Dastidar, P. J. Org. Chem. 2009, 74, 7111–7121. doi:10.1021/jo901463k
41.Ballabh, A.; Adalder, T. K.; Dastidar, P. Cryst. Growth Des. 2008, 8, 4144–4149. doi:10.1021/cg800613d
Go to references 40,41
25.Adhikari, B.; Palui, G.; Banerjee, A. Soft Matter 2009, 5, 3452–3460. doi:10.1039/b905985g
Go to reference 25
26.Rodríguez-Llansola, F.; Miravet, J. F.; Escuder, B. Chem. Commun. 2009, 7303–7305. doi:10.1039/b916250j
Go to reference 26
20.Carretti, E.; Dei, L. In Molecular Gels. Materials with Self-Assembled Fibrillar Networks; Weiss, R. G.; Terech, P., Eds.; Springer: Dordrecht, The Netherlands, 2005; pp 929–938.
21.Carretti, E.; Fratini, E.; Berti, D.; Dei, L.; Baglioni, P. Angew. Chem., Int. Ed. 2009, 48, 8966–8969. doi:10.1002/anie.200904244
22.Carretti, E.; Grassi, S.; Cossalter, M.; Natali, I.; Caminati, G.; Weiss, R. G.; Baglioni, P.; Dei, L. Langmuir 2009, 25, 8656–8662. doi:10.1021/la804306w
Go to references 20-22
23.Palui, G.; Nanda, J.; Ray, S.; Banerjee, A. Chem.–Eur. J. 2009, 6902–6909. doi:10.1002/chem.200900149
24.Ray, S.; Das, A. K.; Banerjee, A. Chem. Commun. 2006, 2816–2818. doi:10.1039/b605498f
Go to references 23,24
15.Lee, K. Y.; Mooney, D. J. Chem. Rev. 2001, 101, 1869–1880. doi:10.1021/cr000108x
Go to reference 15
16.Bhuniya, S.; Seo, Y. J.; Kim, B. H. Tetrahedron Lett. 2006, 47, 7153–7156. doi:10.1016/j.tetlet.2006.08.002
17.Vemula, P. K.; Cruikshank, G. A.; Karp, J. M.; John, G. Biomaterials 2009, 30, 383–393. doi:10.1016/j.biomaterials.2008.09.045
18.Zhao, F.; Ma, M. L.; Xu, B. Chem. Soc. Rev. 2009, 38, 883–891. doi:10.1039/b806410p
19.Sreenivasachary, N.; Lehn, J.-M. Chem.–Asian J. 2008, 3, 134–139. doi:10.1002/asia.200700041
Go to references 16-19
11.Hirst, A. R.; Escuder, B.; Miravet, J. F.; Smith, D. K. Angew. Chem., Int. Ed. 2008, 47, 8002–8018. doi:10.1002/anie.200800022
12.Smith, D. K. Molecular Gels - Nanostructured Soft Materials. In Organic Nanostructures; Atwood, J. L.; Steed, J. W., Eds.; Wiley-VCH: Weinheim, Germany, 2008.
13.Banerjee, S.; Das, R. K.; Maitra, U. J. Mater. Chem. 2009, 19, 6649–6687. doi:10.1039/b819218a
Go to references 11-13
14.Wynne, A.; Whitefield, M.; Dixon, A. J.; Anderson, S. J. Dermatol. Treat. 2002, 13, 61–66. doi:10.1080/095466302317584403
Go to reference 14
3.Dastidar, P. Chem. Soc. Rev. 2008, 37, 2699–2715. doi:10.1039/b807346e
Go to reference 3
48.Raghavan, S. R.; Cipriano, B. H. In Molecular Gels. Materials with Self-Assembled Fibrillar Networks; Weiss, G.; Terech, P., Eds.; Springer: Dordrecht, The Netherlands, 2005; p 241.
Go to reference 48
1.Weiss, R. G.; Terech, P., Eds. Molecular Gels. Materials with Self-Assembled Fibrillar Networks; Springer: Dordrecht, The Netherlands, 2005.
2.Fages, F., Ed. Low molecular mass gelators: Design, self-assembly, function; Topics in Current Chemistry, Vol. 256; Springer: Berlin, Germany, 2005.
3.Dastidar, P. Chem. Soc. Rev. 2008, 37, 2699–2715. doi:10.1039/b807346e
4.Abdallah, D. J.; Weiss, R. G. Adv. Mater. 2000, 12, 1237–1247. doi:10.1002/1521-4095(200009)12:17<1237::AID-ADMA1237>3.0.CO;2-B
5.Terech, P.; Weiss, R. G. Chem. Rev. 1997, 97, 3133–3160. doi:10.1021/cr9700282
6.de Loos, M.; Feringa, B. L.; van Esch, J. H. Eur. J. Org. Chem. 2005, 3615–3631. doi:10.1002/ejoc.200400723
7.Sangeetha, N. M.; Maitra, U. Chem. Soc. Rev. 2005, 34, 821–836. doi:10.1039/b417081b
8.Suzuki, M.; Hanabusa, K. Chem. Soc. Rev. 2009, 38, 967–975. doi:10.1039/b816192e
9.Estroff, L. A.; Hamilton, A. D. Chem. Rev. 2004, 104, 1201–1218. doi:10.1021/cr0302049
10.Piepenbrock, M. O. M.; Lloyd, G. O.; Clarke, N.; Steed, J. W. Chem. Rev. 2010, 110, 1960–2004. doi:10.1021/cr9003067
Go to references 1-10
31.Cravotto, G.; Cintas, P. Chem. Soc. Rev. 2009, 38, 2684–2697. doi:10.1039/b901840a
Go to reference 31
32.Maeda, H. Chem.–Eur. J. 2008, 11274–11282. doi:10.1002/chem.200801333
Go to reference 32
33.Lehn, J.-M. Angew. Chem., Int. Ed. 1988, 27, 89–112. doi:10.1002/anie.198800891
Go to reference 33
34.Desiraju, G. R. Angew. Chem., Int. Ed. 2007, 46, 8342–8356. doi:10.1002/anie.200700534
Go to reference 34
27.Murata, K.; Aoki, M.; Nishi, T.; Ikeda, A.; Shinkai, S. J. Chem. Soc., Chem. Commun. 1991, 1715–1718. doi:10.1039/C39910001715
Go to reference 27
28.Ajayaghosh, A.; Praveen, V. K.; Vijayakumar, C. Chem. Soc. Rev. 2008, 37, 109–122. doi:10.1039/b704456a
Go to reference 28
29.van Bommel, K. J. C.; Friggeri, A.; Shinkai, S. Angew. Chem., Int. Ed. 2003, 42, 980–999. doi:10.1002/anie.200390284
30.Sreenivasachary, N.; Lehn, J.-M. Proc. Natl. Acad. Sci. U. S. A. 2005, 102, 5938–5943. doi:10.1073/pnas.0501663102
Go to references 29,30
© 2010 Adalder et al; licensee Beilstein-Institut.
This is an Open Access article under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/2.0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
The license is subject to the Beilstein Journal of Organic Chemistry terms and conditions: (http://www.beilstein-journals.org/bjoc)
