Synthesis and stereochemical analysis of dynamic planar chiral oxa[7]orthocyclophene

Introduction

In the course of our study on planar chiral medium-sized cyclic molecules [1-10], we previously synthesized hetera[7]orthocyclophenes 1 having a heteroatom-embedded ansa-chain (X = O or NR) and an (E)-alkene moiety (Figure 1) [6,9], and found that the orthocyclophenes exhibit dynamic planar chirality in a wide range of stereochemical stability depending on the differences of the heteroatom and substituents on the (E)-alkene moiety [11,12]. The half-lives of the optical activity _optt_1/2 of 1aa (X = O, Y = H) and 1ba (X = NTs, Y = H) were 380 h and 56.7 h at 25 °C, respectively, indicating that the stereochemical stability of the oxygen-containing cycle is higher than that of the nitrogen cycle: _optt_1/2 is one order of magnitude longer. On the other hand, C6-methyl-substituted nitrogen cycle 1bb (X = NTs, Y = Me) exhibits highly dynamic planar chirality (_optt_1/2 = 0.6 h at 25 °C), indicating that a C6-substituent decreases the stereochemical stability: _optt_1/2 is two orders of magnitude shorter. This planar chirality is too dynamic to handle the enantioenriched form without loss of enantiomeric purity in standard experimental operations. Based on these trends of the stereochemical stability of the hetera[7]orthocyclophenes, we expected that C6-substituted oxa[7]orthocyclophenes could exhibit reasonable dynamic planar chirality with _optt_1/2 approximately 10 h at 25 °C, which is dynamic but can be handled maintaining the enantiomeric purity in careful experimental operations [13,14].

In this study, we have designed, synthesized, and analyzed C6-substituted oxacyclophenes 1ab (X = O, Y = Me), 1ac (X = O, Y = Ph), and 1ad (X = O, Y = I), in which 1ad was used as the key intermediate for the synthesis of 1ab and 1ac via Kumada–Tamao coupling with Grignard reagents (Figure 2).

Results and Discussion

Retrosynthesis and synthesis of the C6-iodo-substituted oxacyclophene 1ad

We planned to construct the nine-membered cyclic ether skeleton of 1ad in the final step by an intramolecular Williamson etherification of haloalcohol 2 (Scheme 1). The iodine-substituted Z-alkene moiety of 2 was planned to be introduced through a trans-selective hydroiodination of propargyl alcohol 3 and the alkyne moiety in 3 can be introduced by an alkynylation of the formyl group of aldehyde 4. Thus, we started this synthesis from O-protected 2-bromobenzyl alcohol derivative 5 for the introduction of the propanal moiety of 4 by a Heck reaction with allyl alcohol.

The synthetic route for the C6-iodo-substituted 1ad is shown in Scheme 2. The Heck reaction of O-TIPS-protected 5a with allyl alcohol in the presence of a palladium catalyst provided the aldehyde 4a in 78% yield [9]. The reaction of 4a with CBr₄ and PPh₃, followed by treatment with n-BuLi, afforded the terminal alkyne 6. Subsequent preparation of the lithium acetylide using n-BuLi, followed by treatment with formaldehyde, afforded propargyl alcohol 3a in 70% yield over three steps. The reaction of 3a with Red-Al generated a vinyl aluminum species, which was then treated with iodine to provide the iodinated Z-alkene 7 in 81% yield. The hydroxy group of 7 was substituted with chlorine using oxalyl chloride in DMF, and the TIPS group was removed by treatment with hydrochloric acid to afford the chloroalcohol 2a (74% yield in two steps). After several attempts to cyclize compound 2a via Williamson etherification, the treatment with iPrMgBr for preparation of the magnesium alkoxide at highly dilute conditions (10 mM) and sequential cyclization successfully proceeded to provide the C6-iodo-substituted oxacyclophene 1ad in 79% yield.

Synthesis of C6-methyl and C6-phenyl-substituted oxacyclophenes

The Kumada–Tamao coupling of compound 1ad with MeMgBr and PhMgBr in the presence of a catalytic amount of NiCl₂(PPh₃)₂ proceeded smoothly to provide the C6-methyl-substituted 1ab in 79% yield and the C6-phenyl-substituted 1ac in 99% yield (Scheme 3) [15,16]. Suitable single crystals were obtained from racemic 1ac, and its X-ray crystallographic analysis was performed (CCDC 2513894). The solid-state structure of 1ac shows that the phenyl group on the E-alkene is directed antiparallel to the fused benzene ring. The dihedral angle of the alkene moiety (∠C4–C5–C6–C7) of 1ac is 146.4°, which is distorted by 33.6° from an ideal alkene plane.

Stereochemical analysis of C6-substituted oxacyclophenes

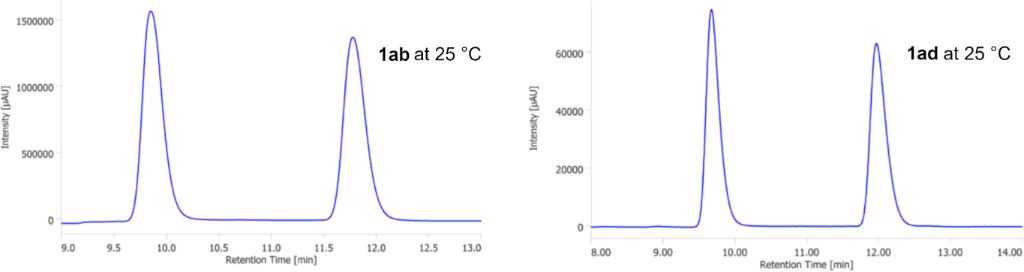

Next, HPLC analyses using a chiral stationary phase (chiral column) of the C6-substituted oxacyclophenes were conducted. The baseline separations of the enantiomers of 1ab and 1ad were achieved by using CHIRALCEL OJ-H as the chiral column at 25 °C (Figure 3) [17].

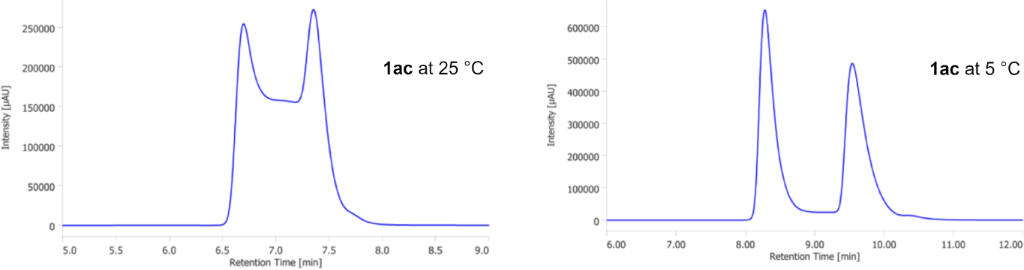

In sharp contrast to 1ab and 1ad, the HPLC analysis of 1ac showed a plateau between the peaks of the enantiomers at 25 °C, indicating that the interconversion of the enantiomers proceeds on the separation time scale (Figure 4) [18]. The interconversion plateau was still observed in the measurement at 5 °C, albeit only slightly.

The phenyl-substituent effect on the stereochemical stability can be understood as a destabilization of the ground state due to the transannular repulsion, and a stabilization of the transition state for racemization by a conjugation effect of the phenyl group with the distorted alkene for a jump-rope rotation-type ring-flip (Figure 5) [10].

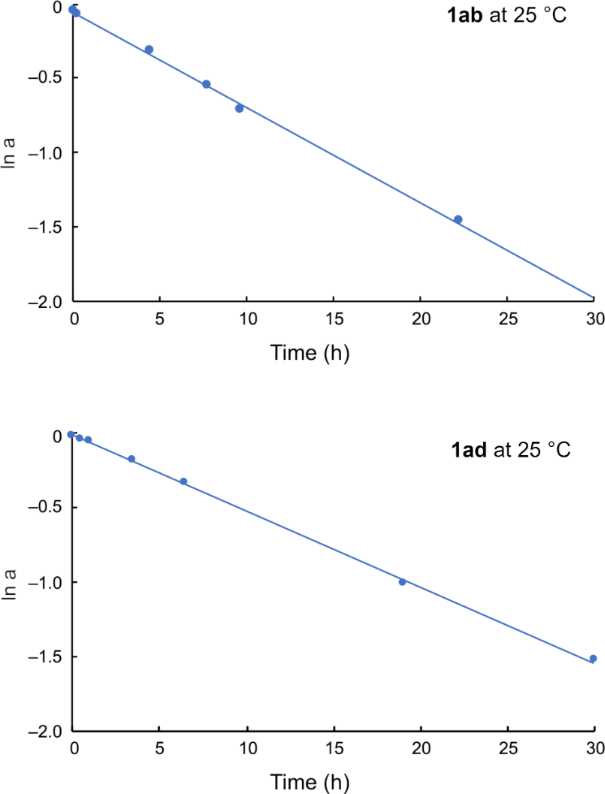

Enantioenriched samples of compounds 1ab and 1ad were obtained by HPLC separation using preparative scale chiral columns. We evaluated the stereochemical stability of 1ab and 1ad at 25 °C using the eluted samples (solvent: hexane/iPrOH 95:5). The plot of ln a (a = |R − S|/|R + S|) versus time furnished a straight line, affording the first-order rate constant k of racemization. The half-lives of the optical activity of 1ab and 1ad are 10.8 h (ΔG^‡ at 25 °C: 24.4 kcal/mol) and 13.6 h (ΔG^‡ at 25 °C: 24.5 kcal/mol), respectively, which are within the predicted range of stereochemical stability (Figure 6).

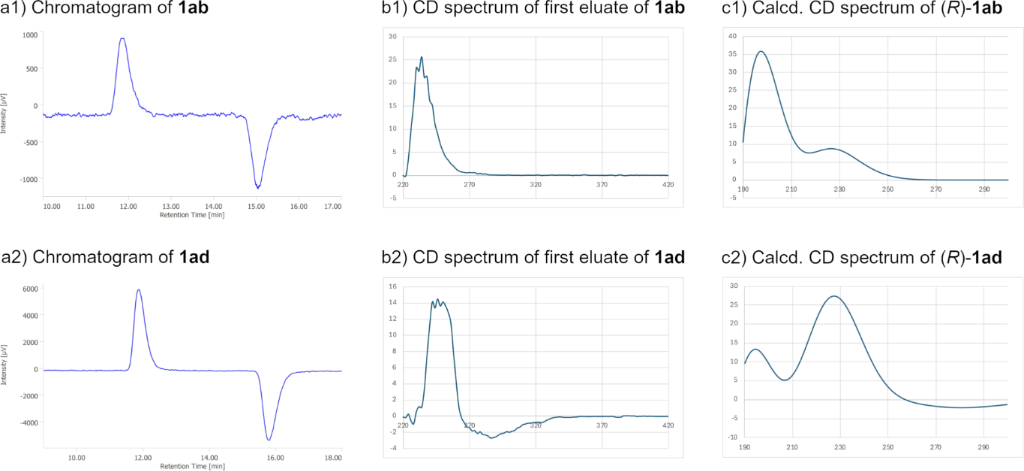

For the determination of absolute stereochemistry of 1ab and 1ad, we performed HPLC analysis using circular dichroism (CD) detector [17]. The HPLC analyses with OJ-H column of 1ab and 1ad showed similar sense of CD signals, in which the first eluates were detected as a positive signal, and the second eluates detected as a negative signal using the monitoring wavelength at 254 nm (Figure 7). Moreover, the direct CD spectra measurements in a flow cell showed characteristic Cotton effects. The CD spectrum of 1ab showed a weak positive Cotton effect around 270 nm and a strong Cotton effect around 230 nm, and that of 1ad showed a weak negative Cotton effect around 290 nm and a strong Cotton effect around 250 nm. Each TD-DFT calculations for (R)-1ab and (R)-1ad showed good agreement in shape for the CD spectra of the first eluates, thus we determined that the absolute stereochemistry of the first and second eluates corresponds to the (R)- and (S)-isomers, respectively.

Transformation of planar chirality of 1ab to central chirality

The planar chirality of the methyl-substituted oxacyclophene can be transformed into central chirality without loss of enantiomeric purity. For example, (S)-1ab obtained by chiral HPLC separation using an OJ-H column was treated with m-CPBA, in which (S)-1ab was smoothly consumed at 0 °C within 30 minutus to afford epoxide 8 in 61% yield (Scheme 4). HPLC analysis of the obtained product 8 using chiral column showed an enantiomeric purity of >99% ee. In this reaction, m-CPBA can only approach from the outside of the ring skeleton of 1ab, so (5R,6R)-8 should be obtained from (S)-1ab.

Conclusion

In summary, we synthesized C6-substituted oxa[7]orthocyclophenes and revealed their dynamic planar chirality. By using the C6-iodo-substituted oxacyclophene as a common intermediate, C6-methyl- and C6-phenyl-substituted oxacyclophenes were synthesized efficiently. The enantiomers of the iodo- and methyl-substituted oxacyclophenes are isolable yet interconvertible at ambient temperature. The phenyl-substituted oxacyclophene showed more pronounced dynamic planar chirality than the iodo- and methyl-substituted derivatives. The planar chirality of the oxacyclophene was successfully transformed into central chirality by epoxidation without loss of enantiomeric purity.
