Abstract
Nanoparticle synthesis via pulsed laser ablation in liquids has gained prominence as a versatile and environmentally friendly approach for producing ligand-free colloids with controlled composition, size, and morphology. While pulsed laser ablation in liquids offers unparalleled advantages in terms of nanoparticle purity and material versatility, enhancing the size control and productivity require modifications of the standard pulsed laser ablation in liquids technique, such as the incorporation of beam shaping techniques. Recent developments in spatial and temporal beam shaping have demonstrated their potential to revolutionise pulsed laser ablation in liquids by enabling more precise energy deposition and modified nanoparticle production dynamics. This review highlights the critical role of beam shaping, encompassing spatial shaping of the beam to influence laser–material interaction and temporal modification to optimise pulse duration and energy delivery. The current advancements in beam shaping techniques, their impact on the nanoparticle characteristics, and their broader implications for scaling pulsed laser ablation in liquids to meet industrial demands are highlighted, offering a comprehensive perspective on the future of this dynamic field.
Review
Introduction
Pulsed laser ablation in liquids (PLAL) [1-5] is an increasingly employed nanoparticle synthesis technique, first established in the 1990s [6,7]. This method involves focusing high-energy laser pulses onto a solid target submerged in a liquid medium [8]. As the laser interacts with the target, it triggers rapid ionisation, heating, and evaporation of the material, leading to plasma formation. The plasma cools down in the surrounding liquid releasing nanoparticles (NPs) into the liquid; the cooling process also generates gas bubbles from the liquid environment. These gas bubbles nucleate, forming a cavitation bubble (CB). Additional NPs are formed within this bubble until it collapses, releasing and ejecting the remaining NPs into the liquid [9-11]. Although nanomaterials can be produced by alternative physical, chemical, or biological methods [12], PLAL offers several advantages [13]. Chemical methods are effective at controlling NP size and shape but often require reducing agents and stabilising or capping agents to ensure colloidal stability, which may introduce impurities and raise environmental concerns. Biological routes for synthesising nanomaterials, such as those based on plant extracts, bacteria, or fungi, are indeed eco-friendly and offer advantages like low toxicity and reduced environmental impact; however, they generally offer less control over NP properties. Moreover, other physical methods such as milling, pyrolysis, sputtering, and arc discharge, or gas-phase processes such as flame spray pyrolysis or gas aggregation are highly scalable and productive, though they typically require high temperatures or vacuum systems and may offer limited control over surface chemistry.
Compared with these approaches, PLAL provides high-purity colloids with reduced impurities and byproducts, even allowing for tuning NP size, crystallinity, defects, and optical properties. Conventional batch PLAL setups often exhibit lower productivity than large-scale chemical or gas-phase syntheses; however, recent advances using megahertz-repetition-rate lasers and continuous-flow configurations have significantly increased yield, demonstrating that scale-up is feasible and cost-effective [14].
Figure 1 provides a comparative overview of these methods, considering the key factors: elemental flexibility, environmental friendliness, synthesis purity, health and safety, productivity, process complexity, and degree of remote controllability. The latter refers to the ability to fully automate and operate the process under closed-loop control. PLAL lends itself naturally to remote monitoring and automation through computer-controlled lasers, scanning systems, and online spectroscopy [15], although similar automation can also be achieved in chemical synthesis using microfluidics-based reactors [14].

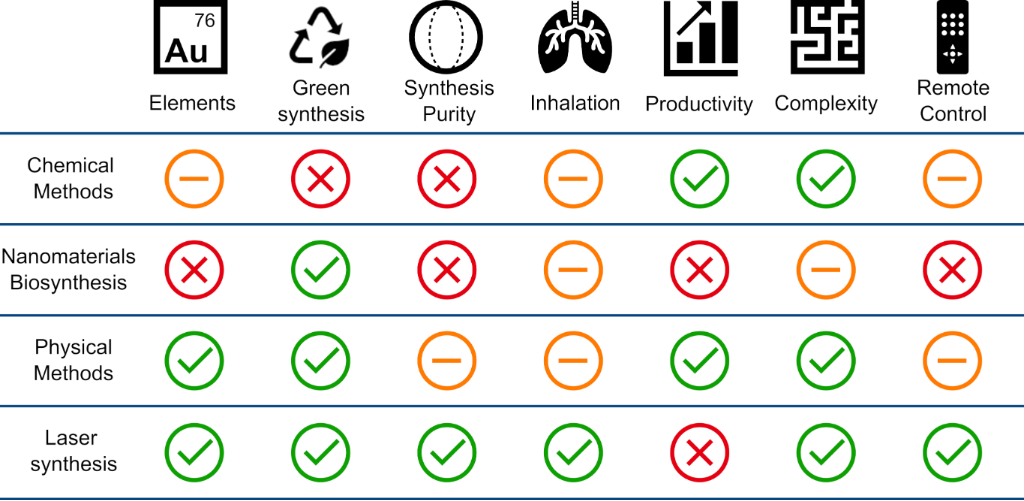

Figure 1: Comparative analysis of the main features of nanomaterial synthesis techniques, that is, chemical, biological, physical, and laser synthesis.
Figure 1: Comparative analysis of the main features of nanomaterial synthesis techniques, that is, chemical, ...
PLAL mechanisms and the ablation dynamics can be described starting with the pulsed emission from the laser source [16]. The laser beam travels through the transparent liquid layer, ideally minimising energy losses due to absorption and avoiding nonlinear optical effects [17]. Upon reaching the target, the laser pulse induces rapid electronic excitation, leading to the injection of electrons into the surrounding liquid, within the first few picoseconds, from 1 to 20 ps [18]. This triggers the formation of a dense plasma composed of the target material components, which remains active for 20 to 200 ps [19,20]. The plasma expands rapidly, generating a mechanical shockwave in both the target and the liquid, with pressures at the laser’s focal spot reaching tens of gigapascals, but strongly depending on the specific laser conditions [21]. The high pressures induce spallation of the target surface, while the plasma interacts with the liquid, vaporising it partially and forming a cavitation bubble (CB) on a nanosecond timescale [22-25]. Throughout microseconds, the CB grows and collapses, releasing NPs into the liquid environment [9]. The early stages of laser ablation, along with variations in material density, temperature, and phase states, can be effectively modelled using large-scale atomistic simulations [26,27].
PLAL is a simple, fast, and versatile technique that has been employed to produce ligand-free NPs [28], core–shell structures [29,30], heterostructures [31], nanoalloys [32,33], hybrid materials [34,35], and complex multielement nanomaterials such as high-entropy alloys [36-38]. This method enables the synthesis of nanomaterials with exceptional purity from virtually any solid target [39], including pure metals [40-43], semiconductors [44-47], or dielectric materials [48,49], in organic [41,50] or inorganic solvents [41,50-52]. Although initial NP production rates via PLAL were limited to a few milligram per hour, recent advancements in high-power, high-repetition-rate laser systems [53,54], as well as strategies such as the use of diffractive optical elements to create multifocal structures [55,56], CB bypassing [57], reducing the liquid layer [58,59], avoiding nonlinear effects [60], and optimising sample geometry [61], have significantly increased the production rates up to several grams per hour in specialised setups requiring fast scanning systems and high power (500 W) and repetition rate (10 MHz) picosecond laser sources [5,35,53,54]. Only recently, the employment of diffractive optical elements has enabled the gram-per-hour productivity scale with industrially available picosecond laser sources, still requiring high power sources (100 W) but removing the requirement for high repetition rate and faster scanning speeds [55].
PLAL-produced nanomaterials have broad applications across different nanotechnology fields, including X-ray radiotherapy [62], boron neutron capture therapy [62,63], viral [64,65] and microbial growth inhibition [42,66], antibacterial agents [67,68], anticancer treatments [67,69], magnetic resonance imaging contrast agent [70], photothermal therapy [71,72], cell imaging [73], proton therapy enhancement [74,75], fluorescence [76,77] and colorimetric sensors [78,79], surface-enhanced Raman spectroscopy detection [71,80,81], nanofluids for thermal applications [82-84], additive manufacturing [85-87], or catalysis [88,89]. The previously mentioned applications of PLAL-derived NPs can be grouped into four major categories, that is, catalysis [90], advanced materials [91], sensing and filtration [92], and bio-applications [93]. Figure 2 schematically illustrates this classification.

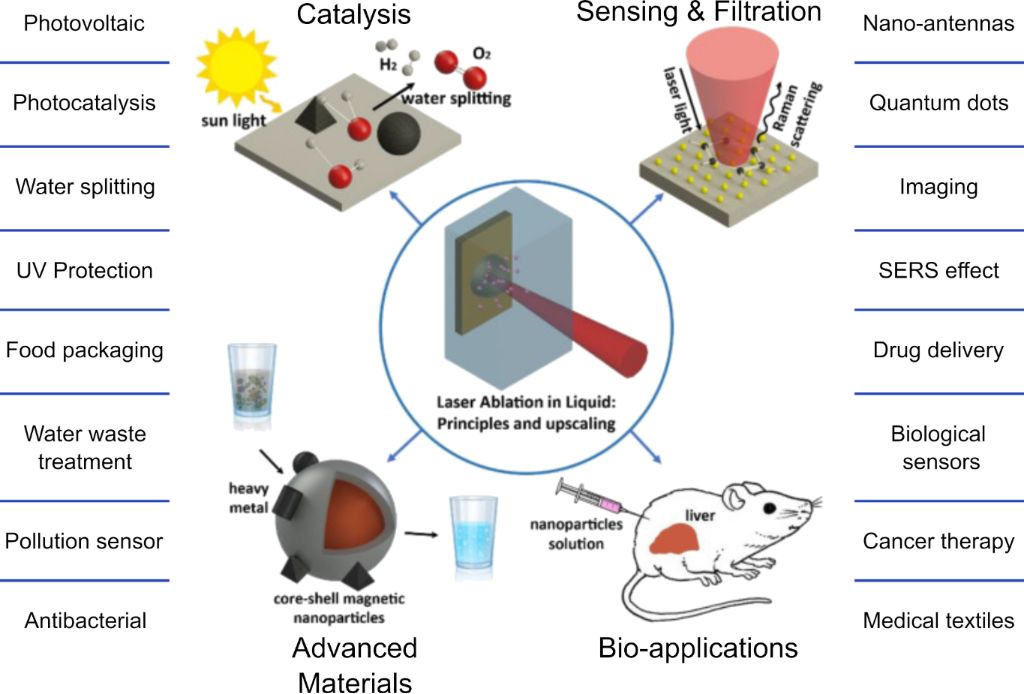

Figure 2: PLAL NP applications, arrows point outwards to the four defined areas, catalysis, advanced materials, sensing and filtration, and bio-applications. Figure 2 was reproduced from [2] (© 2020 E. Fazio et al., published by MDPI, distributed under the terms of the Creative Commons Attribution 4.0 International License, https://creativecommons.org/licenses/by/4.0).
Figure 2: PLAL NP applications, arrows point outwards to the four defined areas, catalysis, advanced material...
However, several limitations remain that hinder the widespread industrial adoption of PLAL, including the overall yield and scalability, particularly when attempting to synthesise complex nanostructures at industrial volumes, as well as the reproducibility and precise control over NP properties such as shape. As discussed by Jendrzej et al. [14], when scaling up PLAL, the cost of the laser becomes a negligible factor compared to process efficiency, throughput, and colloid stability. Therefore, optimising ablation conditions (e.g., using high-repetition-rate lasers, flow-through cells, and improved cavitation management) will be critical for enabling commercially viable production [94].
One promising strategy to overcome these limitations involves controlling the spatial and temporal profiles of the laser beam. Spatial beam shaping allows for fine adjustment of energy distribution on the target, influencing ablation efficiency and NP uniformity. Figure 3 provides an overview of representative approaches and the corresponding beam profiles they enable. Similarly, temporal pulse shaping modifies the interaction time and heat generation and dissipation, allowing for better control of overheat accumulation and nonlinear effects during ablation. These approaches provide a path toward more consistent and tunable NP synthesis, further unlocking the potential of PLAL.
Figure 3: Schematic illustration of spatial beam shaping strategies in PLAL. Different beam profiles can be generated from the standard Gaussian mode: top-hat, doughnut-shaped, and multiple-beam configurations. Such modifications influence the local fluence distribution on the target, thereby affecting ablation efficiency, NP size distribution, and colloid uniformity.
Figure 3: Schematic illustration of spatial beam shaping strategies in PLAL. Different beam profiles can be g...
Spatial and temporal beam shaping in material processing
The spatial focusing of the laser beam on the sample directly influences the ablation efficiency and the quality of the produced NPs. The most widely used PLAL system in different laboratories around the world consists on a convergent lens with the laser beam perpendicular to the target [5]. However, the laser ablation process is highly sensitive to both the spatial and temporal profiles of the beam. While there are already some studies exploring the effects of beam shaping, this field remains largely underexplored. Further advancements in spatiotemporal beam shaping techniques hold significant potential to greatly enhance control over NP synthesis by PLAL.
In the context of PLAL, the NP yield is typically defined as the mass of NPs collected per unit of time (milligram per hour) or per unit of laser energy (milligram per joule). The ablation rate corresponds to the total mass removed from the target per unit of time or per pulse (milligram per hour, milligram per pulse), while the collection efficiency denotes the fraction of this ablated mass ultimately recovered as colloidal NPs. Quantification can be carried out by gravimetric analysis of the colloid, either collecting the entire suspension, evaporating the solvent to dry it, and weighing the residue, or by measuring target mass loss before and after ablation, which allows for an estimation of collection efficiency. Greater precision is obtained by inductively coupled plasma-based (ICP) techniques (ICP mass spectrometry or ICP optical emission spectroscopy) and atomic absorption spectroscopy, particularly for metallic targets, as they determine the concentration in a representative colloidal aliquot. Complementary methods include UV–vis spectroscopy with calibration standards [95] or thermogravimetric analysis in the presence of organic species or adsorbates [73].
When reporting NP yields, several practical issues must be considered. Collection efficiencies are generally below unity, meaning that the ablated mass does not directly equal the NP mass in suspension. Incomplete solvent evaporation or residual organics can bias gravimetric results, making vacuum drying preferable. NP adhesion to container walls requires vessel washing, and aggregation during or after ablation may need sonication or size-separation steps. Overall, gravimetry provides accessible but sometimes overestimated values, whereas ICP-based approaches offer more accurate and reproducible quantification, facilitating reliable comparison of different PLAL conditions.
From a spatial perspective, the beam profile can be modified from the standard Gaussian profile into top-hat, doughnut-shaped, or multiple beams using optical elements, including cutting-edge technology such as metamaterials or refractive, reflective, or diffractive elements [96,97]. Beam shaping can be accomplished through a variety of advanced optical technologies, applied either individually or in combination, as shown in Figure 3. As a general strategy for imaging and material processing, beam shaping technologies represent a research field covered in numerous reviews [98,99]. In the subsequent sections, this review offers a more detailed discussion of beam-shaping methodologies for nanoparticle synthesis and the underlying optical mechanisms including its influence on ablation efficiency, size control, and colloidal stability.
Refractive elements rely on the interaction of light with a transparent material with a different refractive index than air. Standard refractive optics elements such as lenses often suffer from aberrations and can introduce temporal pulse broadening due to the wavelength dependence of the refractive index. Alternative refractive optics technologies include dynamic lenses and freeform optics (both in refraction and reflection) [100]. Unlike traditional lenses, freeform optics can generate complex and exotic light structures that go beyond simple focusing, allowing for custom-shaped intensity distributions at the target. This technology permits the creation of arbitrary beam shapes, enabling more intricate control of the laser interaction with the material, which is especially useful for advanced applications requiring customised energy deposition patterns. Diffractive elements offer the advantage of being thin and lightweight and allow for the generation of user-defined beam patterns through controlled light diffraction produced by micro- or nanostructured glasses or surfaces. However, they are specifically designed for a single wavelength, and their use with ultrashort pulses can lead to substantial temporal pulse broadening [101].
Laser beam shaping technologies can be also categorised into static and dynamic systems. Static systems include components such as microlens arrays, cylindrical lenses, diffractive lenses, and flat optics, which provide fixed spatial beam profiles [102]. For dynamic beam control, spatial light modulators (SLMs) are employed, with liquid crystal modulators, membrane mirrors, and digital micromirror devices (DMDs) being the most employed technologies [103]. Liquid crystal modulators are well suited for modulating both amplitude and phase [104], but they operate at relatively slow speeds, typically in the range of a few hertz. In contrast, DMDs offer very high modulation speed, though they encode information in a binary format, limiting their flexibility for some applications. Membrane mirrors, in contrast, allow for complete control of the beam including intensity and full surface actuation. Nevertheless, their low number of actuators restrict the precision of the modulation, making them primarily useful for correcting optical aberrations. Although SLMs have demonstrated their relevance in material processing, their application in PLAL remains largely underdeveloped and presents significant opportunities for further exploration.
From the temporal pulse perspective, the main strategies for material processing are the generation of double pulses or pulse bursts [105], as well as modifying the temporal profile of the pulsed beam. In the first case, the technological developments of lasers in the last decade have allowed for the generation of megahertz and gigahertz bursts using acousto-optic devices within the laser cavity. In the second case, pulse compressors enable the creation of user-defined temporal pulse profiles using Fourier space shaping [106] or direct space-to-time pulse shapers [107,108]. Temporal pulse shaping has been employed in laser material processing to reduce the required laser fluence for processing and to maximise ablation efficiency through minimisation of thermal dissipation [109]. However, pulse shaping in PLAL still represents a barely explored approach, being mostly limited to experiments with controlled temporal delays between pulses. Further evaluating the possibilities of pulse shaping in PLAL holds the potential to provide enhanced control over laser–matter interactions, facilitating more precise NP synthesis.
Advanced spatial beam shaping in PLAL
The role of spatial beam shaping in PLAL
The spatial profile of the laser beam plays a pivotal role in influencing all stages of the PLAL process. It governs critical features of PLAL, from the laser interaction with the liquid and the target to the subsequent modifications in the shape and dynamics of the CB, and rate, depth and area of ablation. These interdependent processes ultimately define the properties of the NPs, such as their size and distribution. The influence of these factors and their interrelations will be discussed in this section emphasising the role of the irradiance, also called intensity, (watt per square centimetre) and the fluence (joule per square centimetre) of the laser beam. Both variables strongly depend on beam size and shape and fundamentally describe the effect of beam shaping, in contrast to a parameter like pulse energy, which remains constant if the spatial beam profile is modified.
When the laser enters the liquid, it can be absorbed, that is, water and most of the organic solvents absorb radiation for wavelengths in the near infrared; this produces heat that can cause vaporisation of the liquid layer once the fluence threshold of vaporisation is reached [59]. At high irradiances, in the gigawatt per square centimetre range, nonlinear optical effects such as self-focusing, supercontinuum generation, multiphoton ionisation, filamentation, and optical breakdown can become significant [59,60,110]. These effects can influence how the beam propagates through the liquid and interacts with the target and have a strong dependence on the beam profile [111]. Self-focusing is a nonlinear optical process induced by a local modification of the refractive index of a material due to the propagation of an intense laser beam due to the Kerr effect [59,112]. Self-focusing is a power-dependent effect and occurs in water at a threshold laser power of the order of 1 MW that corresponds, for a typical irradiation spot size of 100 μm, to an irradiance threshold of ≈1010 W·cm−2 [112,113]. When the irradiance exceeds the self-focusing threshold at 1010 W·cm−2, several nonlinear processes such as self-phase modulation, four-wave mixing, Raman scattering, and self-steepening cause severe spectral broadening, generating a supercontinuum. In addition to self-focusing in the solvent, it is important to consider the influence of NPs already present in the liquid on the optical breakdown threshold. Dispersed NPs act as additional scattering and absorption centres, leading to local field enhancement in their vicinity. These effects facilitate multiphoton absorption and avalanche ionisation processes, effectively lowering the breakdown threshold of the liquid compared to NP-free conditions. This is shown by the fluence dependence of the generation rate of hydroxyl radicals during optical breakdown in water in the presence of terbium NPs. When the fluence increases from 60 to 140 J·cm−2, the radical yield with oxidised NPs rises by over an order of magnitude [114,115]. Moreover, according to Davletshin et al., plasmonic coupling in aqueous Au nanospheres leads to enhanced local fields. This leads to a reduction via near-field amplification of up to four orders of magnitudes in the effective optical breakdown threshold under 3 ps irradiation, compared to the base liquid without NPs (8.5 × 1011 W·cm−2) [116,117]. Several strategies, both statical [118] and dynamical [119], have been considered to modify the spatial beam profile of the laser with an impact on the supercontinuum effect. Considering that the supercontinuum can modify the size of the NPs in a colloid due to fragmentation [120-122], it can be a tool to control NP distribution during or after PLAL.
For irradiances that exceed 1012 W·cm−2, laser filamentation can occur. This is a complex process that results from the dynamic balance between self-focusing and plasma-defocusing. An example of filamentation produced in a PLAL setup can be observed in Figure 4 [110]. Initially, high-intensity laser irradiation inside the liquid medium triggers multiphoton ionisation and tunnel ionisation, generating free electrons due to the high peak power. The excess of electrons and ions induced by the multiphoton ionisation [121] has been used in reactive ablation for the fabrication of NPs [123,124] and hybrid colloidal NPs [125]. In other applications, dynamic control of the filaments can be achieved by employing spatial light modulation [126].

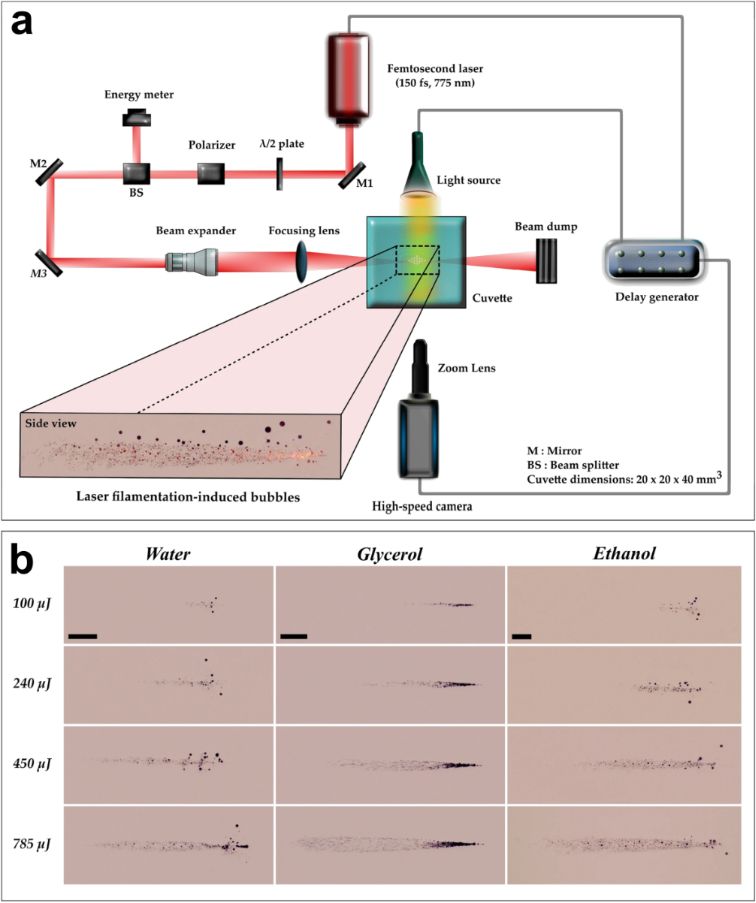

Figure 4: (a) Experimental setup for the record of filamentation produced in a liquid. (b) Laser focusing in water, glycerol, and ethanol; the laser is on the left-hand side. Pulse energies: 100, 240, 450, and 785 µJ; pulse duration: 150 fs; central wavelength: 775 nm. Figure 4a and Figure 4b were reproduced from [110] (© 2022 D. Chaitanya Kumar Rao et al., published by Springer Nature, distributed under the terms of the Creative Commons Attribution 4.0 International License, https://creativecommons.org/licenses/by/4.0).
Figure 4: (a) Experimental setup for the record of filamentation produced in a liquid. (b) Laser focusing in ...
Finally, the optical breakdown irradiance threshold in aqueous media is about 1 × 1010 W·cm−2 [127]. This process is physically observed by bubble formation in the liquid [128]. The dissociation of the liquid due to multiphoton ionisation leads to the formation of a hot plasma with temperatures reaching 104 K. Subsequently, plasma recombination begins, and the high-temperature plasma is replaced by vaporised fluid, leading to the creation of microbubbles and mechanical effects such as shock wave emission and cavitation. In general, these microbubbles cause laser energy losses and distortion of the laser spatial profile due to scattering and should be avoided to maximise PLAL productivity and control the irradiation parameters on the target.
The fluence (Φ0), that is, the energy per unit area, is another key parameter of the laser that can be modified by spatial shaping. The fluence directly influences most of the properties of the ablation process as the size of the CB, where the maximum bubble volume scales linearly with the laser fluence for the high-fluence range, 100–200 J·cm−2 [129]. The NP size distribution is also affected by the fluence, obtaining smaller NPs for low fluences of 0.5–4.0 J·cm−2 [130-132]. The NP composition is also affected by the fluence. An increase of the laser energy leads to a higher concentration of gas, for example oxygen atoms, that increase O content in the produced NPs [133] and affect the morphology [134,135]. Regarding the ablation efficiency, a maximum is reported for ablation in air for Φ0 = e2Φth, where Φth is the ablation threshold [53]. In liquids, ablation efficiency is usually determined experimentally due to energy losses and beam modification through confinement, plasma–liquid interactions, and cavitation bubbles. Dittrich et al. found that the ablation threshold for Au in air is ca. 1.9 times higher than in water [136], and Sun et al. reported a reduction from 2.22 J·cm−2 (air) to 1.02 J·cm−2 (liquid-assisted) [137]. Therefore, the air-related formula is often used, but complemented by an empirical correction factor to account for liquid effects as proved by Intartaglia et al. for Si NP production with a picosecond laser [138] and Kanitz et al. for Fe NP production with femtosecond laser [20]. Up to now, control of the fluence has been performed by varying the laser pulse energy [132,139]. In the last years, other approaches to modify the fluence through changing the spatial profile have emerged [134,140-142].
Focal spot shape conformation in PLAL
The interaction of the laser with the target and the generated colloid depends not only on the beam fluence but also on the shape. The focusing systems employed in the synthesis of the NPs affect their properties. Therefore, this section will review the main beam-shaping techniques that are used in PLAL for influencing NP formation. We will divide the section into two different subsections. In the first one, we will consider spatial beam profile variations in conventional PLAL systems (defocusing, tilting, and the incorporation of cylindrical lenses). In the second subsection, we will focus on systems where an external element is added to modify the beam profile into a non-Gaussian beam (Bessel beam, doughnut beam, and speckle pattern).
Conventional spatial beam control. Although the determination of the focused laser beams in air can be done directly from the ablated spots at different lens–target distances, in liquids and with ultrashort laser pulses this procedure is not so evident. The diameter of the ablated spots under different water layers for a 120 fs pulsed beam with a spherical lens of 40 mm focal length is shown in Figure 5. When ablation is carried out in air, the craters caused in the target have the smallest diameter when the relative geometric focal length of the lens coincides with the target, dzL = 0. The diameter of the craters increases when the relative position of the lens–objective system moves towards the target (dzL < 0) or away from it (dzL > 0). Consequently, the smaller the ablated spot, the higher the fluence, and a higher productivity can be achieved [59]. In comparison, when ablation takes place within a liquid, the ablated spot diminishes until vanishing with the increment of the lens position dzL. However, when NPs are generated in liquid using femtosecond pulses, the largest ablated mass does not occur for the lens–target position corresponding to the smallest ablated spot. In fact, the maximum NP productivity with a 10 mm liquid layer was achieved for dzL = +2 mm. According to Figure 5, the smallest spot found for these parameters was at dzL = +4 mm. This 2 mm difference in the lens position induces a 260 times higher Au colloid concentration. For this reason, defocusing is a simple, alternative technique to increase NP production by modifying the energy distribution when ablating the target. Defocusing plays a dual role depending on whether the local fluence is maintained. When the beam is defocused without power compensation, the fluence at the target decreases, leading to lower plasma temperatures and reduced ablation efficiency, which generally results in smaller NPs with narrower size distributions.

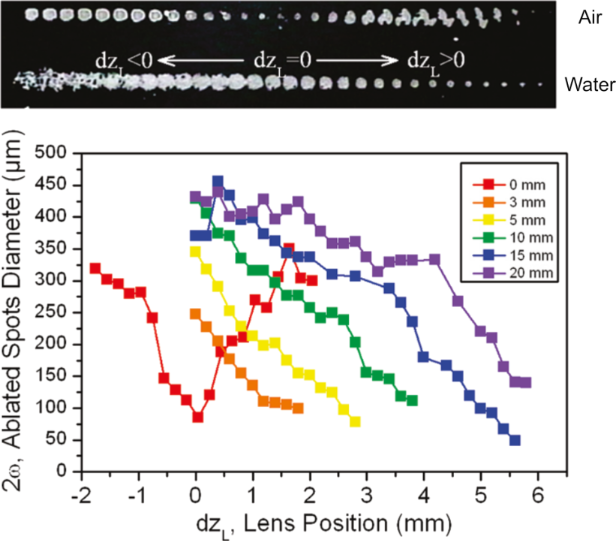

Figure 5: Top: Ablated spot diameter on a silicon wafer comparison between air and with 10 mm water layer. Bottom: Effect of lens position using a spherical lens with 40 mm of focal length in different liquid layers. Figure 5 was reproduced with permission from [59]. Copyright 2011 American Chemical Society. This content is not subject to CC BY 4.0.
Figure 5: Top: Ablated spot diameter on a silicon wafer comparison between air and with 10 mm water layer. Bo...
When the laser power is increased to compensate for the defocusing, the fluence is kept constant, but a larger ablation area is irradiated, which increases NP production. The higher colloidal concentration enhances aggregation, often resulting in larger mean particle sizes [143]. Furthermore, the precision of the focusing can play a crucial role in the physicochemical properties of the colloids. Ryabchikov et al. have demonstrated that the optical properties of Si/Au NPs, their structure, as well as their chemical composition can be modified by defocusing [143]. Defocusing 0.5 mm inside the target led to enhanced chemical stability of the colloids and increased concentration. Moreover, NP size control could be achieved by defocusing. The hydrodynamic diameter increases with defocusing, with the smallest diameter achieved when the focal spot is placed on the target surface (Figure 6). Therefore, the reported increase or decrease in NP size under defocusing is not contradictory but rather reflects the different strategies used to control fluence during the process.

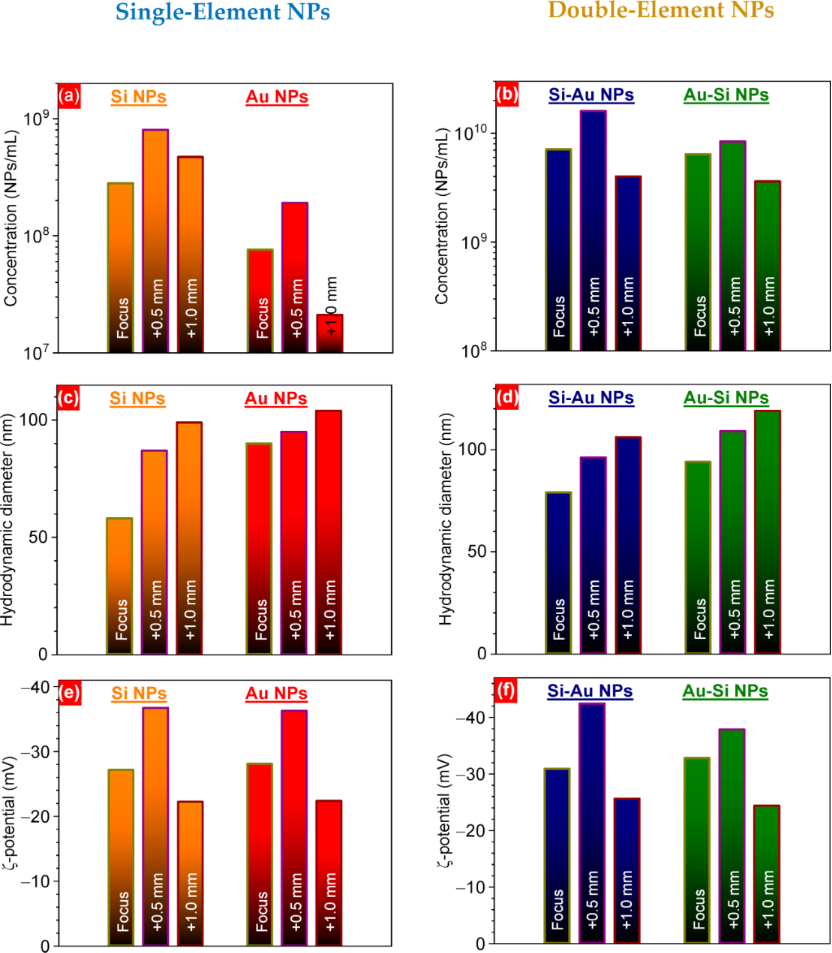

Figure 6: (a, b) Nanoparticle concentrations, (c, d) hydrodynamic diameters, and (e, f) ξ-potential of one and two-component NPs prepared by PLAL, at different focus positions. Figure 6a–f was reproduced from [143] (© 2025 Y. V. Ryabchikov et al., published by MDPI, distributed under the terms of the Creative Commons Attribution 4.0 International License, https://creativecommons.org/licenses/by/4.0).
Figure 6: (a, b) Nanoparticle concentrations, (c, d) hydrodynamic diameters, and (e, f) ξ-potential of one an...
Another way to modify the beam shape without changing the PLAL system is by tilting either the sample or the incident beam. The effect of target tilt along the laser irradiation direction has been investigated by Al-Mamun et al. while producing spherical Al2O3 NPs by nanosecond laser ablation in water [141]. Tilting the target results in smaller particles with a narrower distribution due to the larger spot and lower fluence [141]. Morphology and shape of the ablated NPs remain constant. The produced NPs were spherical with an average particle size ranging from 8 to 18 nm for different laser parameters.
Conventionally, spherical lenses are used in PLAL. Unlike ablation with spherical lenses, ablation with cylindrical lenses modifies the spot size into an elliptical shape, increasing the area. Marrapu et al. demonstrated that the use of cylindrical lenses in PLAL can lead to the formation of nanoribbons [140], and this may be attributed to two main mechanisms. First, the initially formed Ag nanospheres could undergo nanowelding under the influence of a line-shaped light sheet produced by cylindrical focusing, leading to chain- or ribbon-like structures. Second, the cavitation bubble generated during ablation and its subsequent oscillations play a critical role. Under cylindrical focusing, the cavitation bubble adopts an elongated shape that differs from the typical spherical morphology observed with circular beams [144]. This anisotropic geometry alters the internal pressure distribution and collapse dynamics, affecting the interaction between the plasma plume, shock waves, and the surrounding liquid. Consequently, both the light-induced welding and the anisotropic cavitation bubble dynamics are key factors determining the formation of the elongated nanostructures observed under cylindrical focusing.
The PLAL experiments with cylindrical lens were performed with a 2 ps laser and a cylindrical lens of 45 mm focal length, using pulse energies between sensing and filtration of 1.0 and 1.4 mJ at 800 nm wavelength [140]. It was observed that at 1.2 mJ pulse energy, the fabrication of Ag nanoribbons longer than 0.6 µm were synthesised (Figure 7).

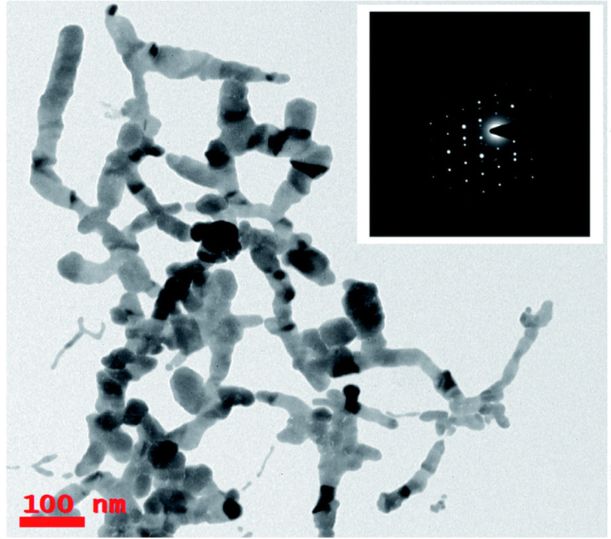

Figure 7: TEM images of Ag nanoribbons produced by cylindrical lens ablation at a pulse energy of 1.2 mJ. Ag nanowires/ribbons with an average length of 0.5–1.0 μm. The inset shows the SAED patterns, which reveal the crystalline phase of Ag nanowires. Figure 7 was reproduced from [140] (“Silver nanoribbons achieved by picosecond ablation using cylindrical focusing and SERS-based trace detection of TNT“, © 2020 H. Marrapu et al., published by The Royal Society of Chemistry, distributed under the terms of the Creative Commons Attribution-NonCommercial 3.0 Unported Deed License, https://creativecommons.org/licenses/by-nc/3.0/). This content is not subject to CC BY 4.0.
Figure 7: TEM images of Ag nanoribbons produced by cylindrical lens ablation at a pulse energy of 1.2 mJ. Ag ...
External elements for spatial beam shaping. The spatial profile of a beam plays a crucial role in laser–matter interaction, influencing the efficiency, precision, and morphology of the ablated material. Therefore, introducing external optical elements that modify the laser beam profile represents an interesting approach to provide further control to the PLAL process.
One of the beam profiles generated by external optical elements are Bessel beams. Bessel beams are widely used in various optical and engineering applications due to their ability to propagate long distances almost without diffraction. Compared to Gaussian pulses, the Bessel beams have a much longer focus and can be considered optical needles. Quasi-Bessel zeroth-order beams can be created by axicon optics (conical lenses), which generate interference of an incoming Gaussian laser beam along the optical axis, thus forming a long focal line. The radial distribution of intensity in a zeroth-order Bessel beam represents a central bright spot surrounded by rings of much smaller intensities so that their spacing can be approximated by the Bessel function J0 [145]. The anatomy of the quasi-Bessel beam propagation in space is shown in Figure 8 with a detailed view of its spatiotemporal shape including the evolution of the cross-sectional structure [146]. Two laser beams, one continuous wave (CW) and a femtosecond pulsed laser, have been compared showing very similar structures, underlying the long effective working distances of the intense laser needle.

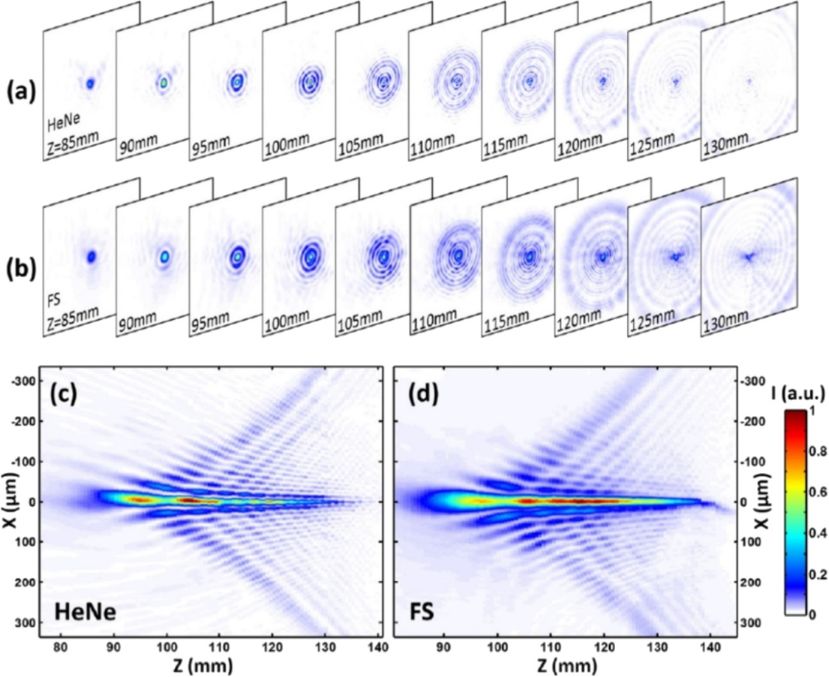

Figure 8: (a, b) Transverse distributions of Bessel-like beams observed at various distances (Z) from the axicon for (a) CW HeNe and (b) femtosecond (795 nm wavelength, 35 fs pulse duration) lasers. (c, d) Longitudinal profiles of CW and femtosecond laser beams, respectively. Intensities are normalised to the peak values in the two cases. Figure 8a–d was reproduced with permission from [146], © 2017 Optical Society of America. This content is not subject to CC BY 4.0.
Figure 8: (a, b) Transverse distributions of Bessel-like beams observed at various distances (Z) from the axi...
For PLAL, Bessel beams are still not widely used. This can be related to the very small effective diameter of the beam on the material surface. However, an axicon-generated laser beam has been shown to allow for better control of NP size and to offer an advantage in terms of alignment and reproducibility due to the long length of the central lobe of the Bessel beam [142]. A narrow size distribution of Ag NPs obtained by femtosecond Bessel beam irradiation of a silver target in acetone is shown in Figure 9. As an example, the Bessel-beam-processed surface results in a giant enhancement of the SERS signal of the explosive molecule CL-20 [142]. Thus, NP synthesis in liquids using Bessel beams can provide an additional opportunity for control over colloidal properties.

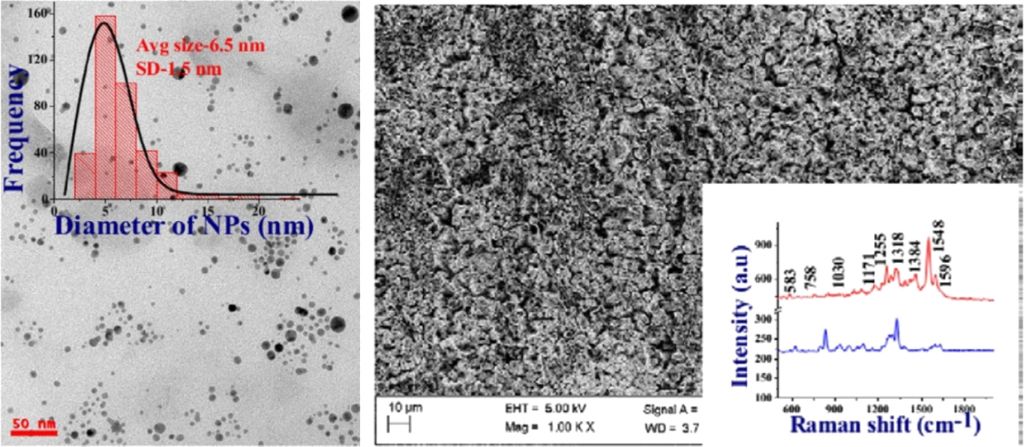

Figure 9: Left: TEM image of a Ag colloid prepared by laser ablation in acetone by femtosecond Bessel beams at a pulse energy of 1000 μJ. Right: Field-emission scanning electron microscopy image of a Ag target processed with Bessel beam at energy 1000 μJ. The inset shows the SERS spectrum of the explosive molecule CL-20 at 5 µM concentration (red curve) from the laser-exposed Ag surface. For comparison, the blue curve represents the 0.1 M CL-20 Raman spectra obtained from a silicon wafer. Figure 9 was used with permission from [142] (“Fabrication of nanoparticles and nanostructures using ultrafast laser ablation of silver with Bessel beams”, by G. K. Podagatlapalli et al., Laser Phys. Lett., vol. 12, article no. 036003, published on 13 February 2015; https://doi.org/10.1088/1612-2011/12/3/036003); © 2015 IOP Publishing; permission conveyed through Copyright Clearance Center, Inc. All rights reserved. This content is not subject to CC BY 4.0.
Figure 9: Left: TEM image of a Ag colloid prepared by laser ablation in acetone by femtosecond Bessel beams a...
Doughnut-shaped (DS) ring-like beams (also called dark-hollow beams) represent a wide class of spatially shaped light beams with controlled ring intensity and zero central intensity, that is, with phase singularity at the beam centre. Depending on the polarisation, the DS beams can be classified into two classes, those that carry optical angular momentum (OAM) and those that do not. The latter ones are usually radially or azimuthally polarised and, because of the cylindrical symmetry polarisation, they are also called cylindrical vector beams. The beams carrying OAM typically have circular polarisation and represent a subclass of vortex beams. Radially polarised DS beams can be focused on a spot size significantly smaller than conventional Gaussian beams [147,148] and avoid overheating of the central irradiated regions [149,150]. DS beams appear particularly attractive for PLAL with ultrashort laser pulses due to the high damage threshold and the possibility of simply switching from radial to azimuthal polarisation. To generate vortex beams with their helical/twisted wavefronts, spiral phase plates are typically used to produce beams with pre-defined OAM modes.
One of the schemes to create vortex beams is shown in Figure 10a [151]. The material ablated with such a beam has been shown to form twisted nanostructures on metal surfaces with controlled chirality [151,152]. They are formed due to the involvement of ablated/molten material in a spiral motion of the vector vortex beam as illustrated in Figure 10c.

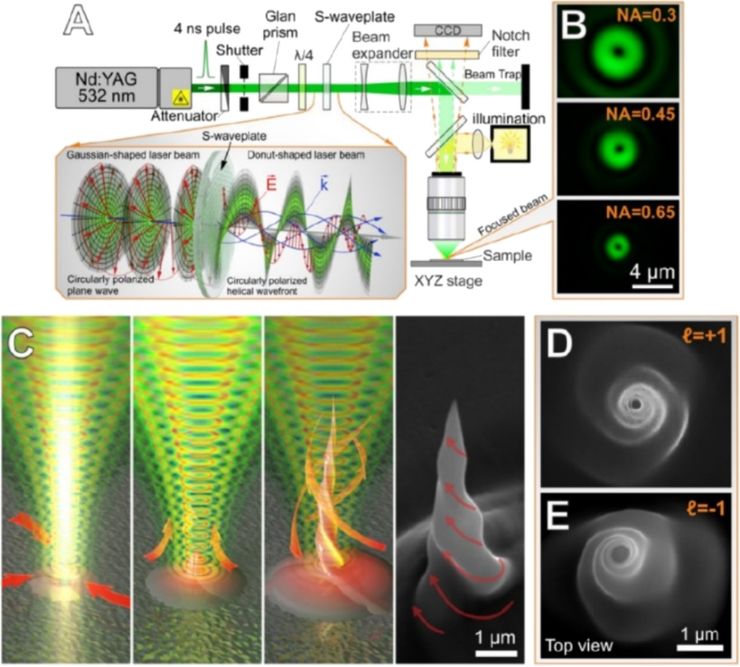

Figure 10: (a) A scheme of the experimental setup for nanostructuring with the nanosecond vortex beams. (b) Vortex-beam intensity distributions measured in the focal plane of the microscope objectives with different NAs. (c) A sketch of vortex-beam-induced formation of twisted Ag nanojets. A SEM image of a twisted nanojet is shown on the right with the red arrows indicating the rotation direction. (d, e) Top views of SEM images of twisted Ag nanojets produced under single-pulse ablation of 500 nm thick Ag film by nanosecond vortex pulses with opposite signs of helicity. Figure 10a–e was reproduced with permission from [151], © 2017 Optical Society of America. This content is not subject to CC BY 4.0.
Figure 10: (a) A scheme of the experimental setup for nanostructuring with the nanosecond vortex beams. (b) Vo...
The spatial distribution of the laser fluence Φ(r) of a DS beam along the radial coordinate r is well described by the following equation [147,153,154]:
where E0 is the pulse energy, and w0 is the waist of the corresponding Gaussian beam hosting the doughnut. According to Equation 1, the beam fluence is zero at the centre (r = 0) and has a maximum at a distance from the centre.
The pulse energy of a DS beam should be ≈2.7 times higher than the corresponding Gaussian beam to induce ablation if we assume that the ablation threshold is unaltered by the ring intensity distribution. Figure 11 shows simulated intensity distributions of a Gaussian and DS beam with the same pulse energy [154].

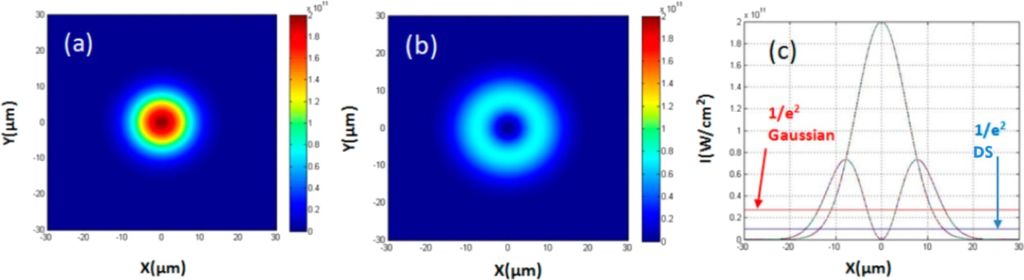

Figure 11: Simulated intensity distributions. (a) Gaussian beam; (b) DS beam with the same pulse energy; (c) cross-sectional intensity profiles of the Gaussian and DS beams. The lines show the 1/e2 intensity levels for both beams. Figure 11a–c was reproduced from [154] (© 2021 Y. Tang et al., published by MDPI, distributed under the terms of the Creative Commons Attribution 4.0 International License, https://creativecommons.org/licenses/by/4.0).
Figure 11: Simulated intensity distributions. (a) Gaussian beam; (b) DS beam with the same pulse energy; (c) c...
When a DS pulse is focused inside a liquid at a fluence above the liquid breakdown, a ring CB is generated, followed by a series of transient phenomena [155]. The evolution of the DS-laser-produced bubble is much more complicated than that of a typically semispherical bubble induced by a Gaussian beam. Figure 12 illustrates the early-stage dynamics of bubbles generated in water by two DS beams with 6 ns, 532 nm pulses (Figure 12a) and 150 ps, 800 nm pulses (Figure 12b). Under both irradiation conditions, the DS beam generates an annular CB and two shock waves, an outer wave moving outward and an inner wave converging toward the centre. After ≈50 ns, the inner wave reaches the focus, reverses direction, and triggers a secondary bubble. As this diverging wave interacts with the annular bubble, it induces a tertiary bubble cloud that vanishes within approx. 100 ns. Finally, the central bubble collapses after 1–2 µs, and the annular bubble fragments into cylindrical bubbles within approx. 100 µs. This evolution differs from Gaussian pulses in liquids, where a single bubble exhibits large-amplitude oscillations and only external shock waves are emitted [156].

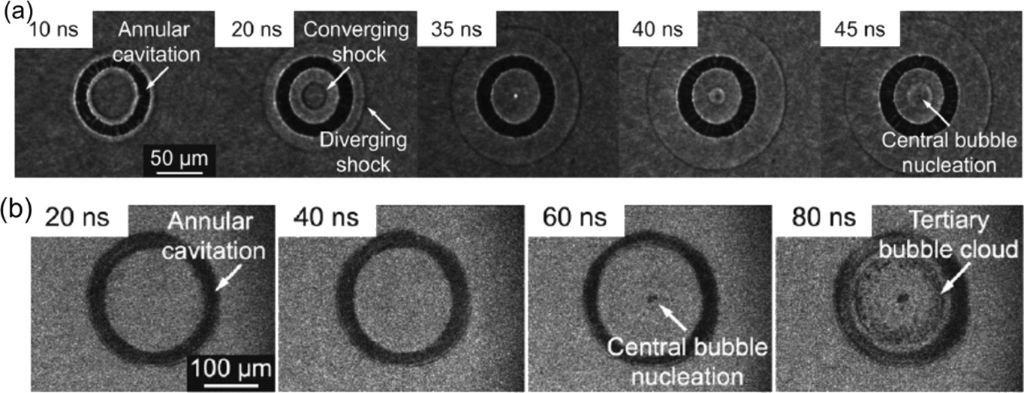

Figure 12: Time-resolved images of CBs in water produced by DS laser pulses at early evolution stages. (a) Laser wavelength 532 nm, pulse duration 6 ns, F0 = 25 J·cm−2, rD = 68 µm. (b) Wavelength 800 nm, pulse duration 150 ps, E0 = 0.5 mJ, rD = 95 µm. Figure 12a and Figure 12b were reprinted with permission from [155], Copyright 2011 by the American Physical Society. This content is not subject to CC BY 4.0.
Figure 12: Time-resolved images of CBs in water produced by DS laser pulses at early evolution stages. (a) Las...
The evolution of CBs induced by DS beams in liquids can influence NP formation in PLAL by acting as nanoscale reactors. Modifying CB dynamics directly affects nucleation, offering new ways to tailor NP properties [157]. Despite the advantages of DS beams in various laser applications, their use in PLAL for NP synthesis has only recently been explored by modifying the distribution size of metal NPs [158]. Studies comparing picosecond Gaussian and DS beams on different targets (metal, metal oxide, and alloy) showed that DS pulses significantly reduced NP size, narrowed size distribution, and improved sphericity. The NPs’ size distribution shows only weak dependence on pulse energy. No significant variation of the Au NP size distribution was observed using 85 and 217 µJ pulses [158]. Instead, the observed effects are linked to the modified geometry and dynamics of the cavitation bubble under DS irradiation. The ring-shaped energy deposition alters plasma confinement and leads to cavitation bubbles with asymmetric expansion and collapse, reducing the bubble lifetime. These modified bubble dynamics influence nucleation and quenching rates, thereby limiting coalescence and favouring the formation of smaller NPs. Figure 13 compares SEM images and size distributions of Au NPs produced by PLAL in water with both laser beams. SEM analysis of Au NPs revealed that DS pulses suppressed aggregation, eliminating large particles, unlike Gaussian beams, which produced size distributions with high-size tails. Additionally, DS-induced CBs had shorter lifetimes than those generated by Gaussian pulses, with the same pulse energy, possibly reducing NP aggregation. Therefore, DS laser pulses offer a promising approach for precise control over NP size and shape uniformity, although further studies are needed to elucidate the mechanisms involved.

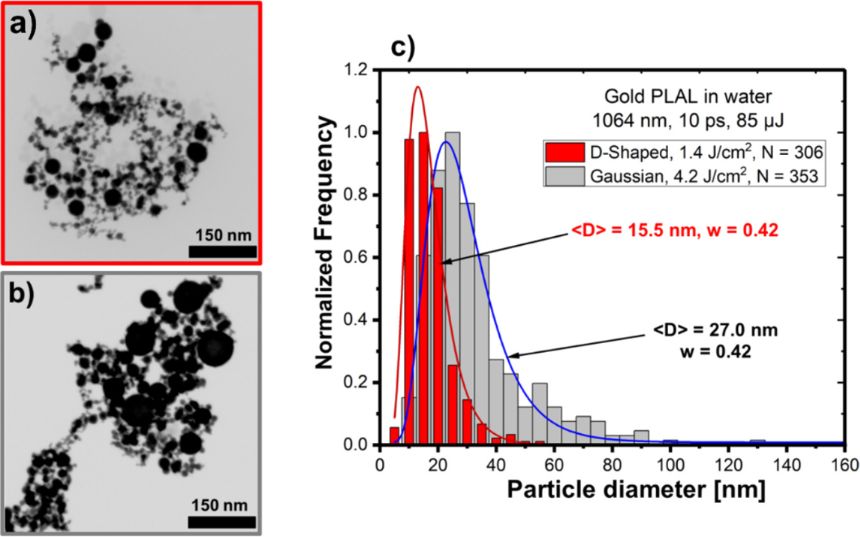

Figure 13: Comparison of gold NPs produced by PLAL with picosecond radially-polarised DS and linearly polarised Gaussian laser beams at the same pulse energy of 85 µJ. (a, b) SEM micrographs of NPs obtained using the DS and Gaussian beams, respectively. (c) NP size distributions showing the number of NPs analysed N, the median diameter ⟨D⟩, and polydispersity index w values derived from the log-normal approximations (solid lines). Figure 13a–c was reproduced from [158] (© 2025 A. R. Altakroury et al., published by Beilstein-Institut, distributed under the terms of the Creative Commons Attribution 4.0 International License, https://creativecommons.org/licenses/by/4.0).
Figure 13: Comparison of gold NPs produced by PLAL with picosecond radially-polarised DS and linearly polarise...
In addition to PLAL, related approaches such as laser fragmentation in liquids (LFL) can also be employed, in which preformed colloidal NPs are irradiated to induce size reduction or reshaping. Zheng et al. showed that the use of diffractive elements/diffusers can contribute to a more efficient control of the NP size, thanks to better energy redistribution [159]. Commonly, a laser beam with flat-top shape is considered to maximise laser–matter interaction. Instead, a diffused laser beam could be crucial if the process of interest has a fluence or intensity threshold. The efficiency of size-reduction of colloidal NPs was improved by a counterintuitive redistribution of laser energy, that is, the formation of speckle patterns by incorporating a diffuser (Figure 14).

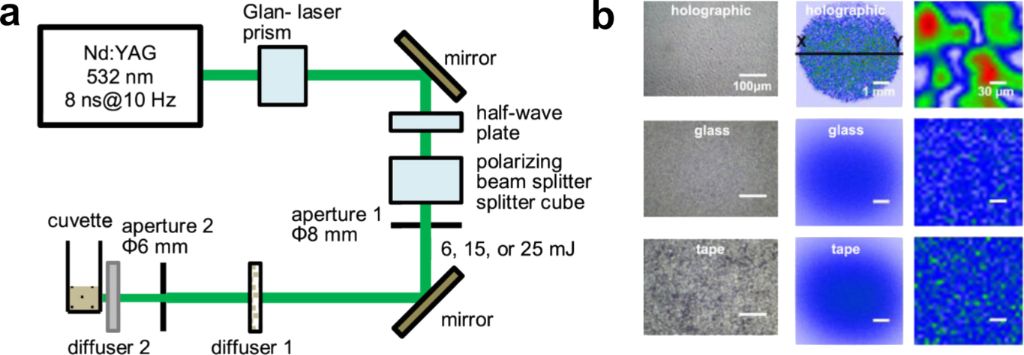

Figure 14: (a) Experimental setup. Diffuser 1: holographic. Diffuser 2: glass diffuser or Scotch tape. Pulse energies of 6, 15, and 25 mJ after aperture 1 correspond to laser fluences of 13, 34, and 56 mJ·cm−2 at the cuvette. (b) Optical images, spatial beam profiles, and X–Y cuts of the spatial beam profiles at cuvette position through holographic and glass diffuser, and Scotch tape. Figure 14a and Figure 14b were used with permission from [159] (“Enhancing laser-nanoparticle interactions by diffused laser beams: efficient size-reduction of nanoparticles”, by X. Zheng et al., J. Phys. D. Appl. Phys., vol 55, article no. 275106 published on 20 April 2022; https://doi.org/10.1088/1361-6463/ac6400); © 2022 IOP Publishing; permission conveyed through Copyright Clearance Center, Inc. All rights reserved. This content is not subject to CC BY 4.0.
Figure 14: (a) Experimental setup. Diffuser 1: holographic. Diffuser 2: glass diffuser or Scotch tape. Pulse e...
Systematic results for Ag and Au NPs have been reported. The physical origin of the efficiency of the diffused laser beam is the redistribution of laser energy so that the local laser fluence exceeds the size-reduction threshold. Figure 15 compares the UV–vis spectra of colloidal Ag NPs irradiated with normal and diffused beams at pulse energies of 15 and 25 mJ (fluences of 34 and 56 mJ·cm−2). As seen in Figure 15a, at 15 mJ, the standard beam has minimal impact on NP size, with the surface plasmon resonance (SPR) peak at 390 nm remaining weak even after 60 min of irradiation. In contrast, the diffused beam at the same energy reduces NP size rapidly, and the 490 nm peak disappears within 10 min (Figure 15b). A slight blue shift of the SPR peak between 10 and 60 min suggests further size reduction over time. At 25 mJ, the standard beam also induces size reduction (Figure 15c), but less effectively than the diffused beam at 15 mJ. The diffused beam at 25 mJ (Figure 15d) achieves even greater efficiency, further reducing NP size. Additionally, the SPR peak width narrows, indicating a more uniform size distribution. Overall, the diffused beam enhances both NP size reduction and distribution uniformity more effectively than the standard beam, showing the possibilities that spatial beam shaping can offer in NP control.

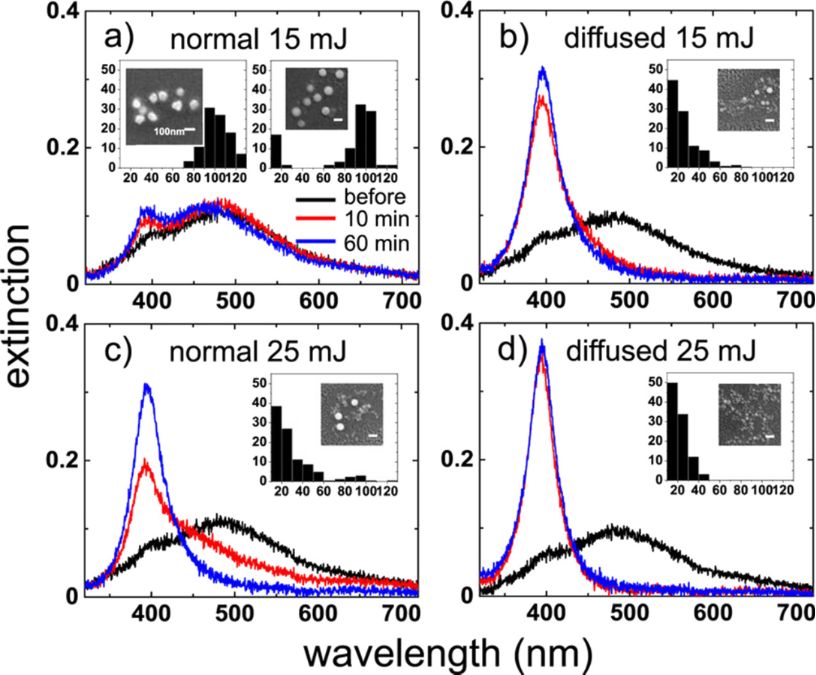

Figure 15: Ag NPs colloidal solutions UV–vis spectra. Without irradiation (black), after 10 min (red), and 60 min (blue) irradiation. (a) Normal and (b) diffused beams at 15 mJ, same for (c) and (d) at 25 mJ, correspondingly. Insets show the particle size distributions representing the diameter and SEM images. The left inset in (a) is the one before laser irradiation, while all others were determined after 10 min of irradiation. Figure 15a–d was used with permission from [159] (“Enhancing laser-nanoparticle interactions by diffused laser beams: efficient size-reduction of nanoparticles”, by X. Zheng et al., J. Phys. D. Appl. Phys., vol 55, article no. 275106; published on 20 April 2022; https://doi.org/10.1088/1361-6463/ac6400); © 2022 IOP Publishing; permission conveyed through Copyright Clearance Center, Inc. All rights reserved. This content is not subject to CC BY 4.0.
Figure 15: Ag NPs colloidal solutions UV–vis spectra. Without irradiation (black), after 10 min (red), and 60 ...
Spatial beam shaping directly modulates irradiance and fluence, thereby controlling bubble dynamics and NP formation. For instance, defocusing experiments demonstrate colloid concentrations up to 260 times higher when the lens is moved slightly beyond the focal plane, evidencing that maximum productivity does not always coincide with the smallest spot [59]. Reports of NP size either decreasing or increasing with defocusing can be reconciled: Without power compensation, the fluence drops, and smaller NPs (tens of nanometres) with narrower distributions are obtained; with compensation, a larger ablation area produces higher concentrations and larger mean sizes [143]. More advanced shaping, such as Bessel beams, narrows Ag NP distributions (≈10–20 nm) due to extended focal depth and reproducibility [142], while doughnut-shaped beams suppress aggregation of Au NPs, yielding diameters of ca. 30 nm versus broad, high-tail distributions under Gaussian irradiation [158]. Cylindrical focusing further enables anisotropic structures such as Ag nanoribbons up to 0.6–1.0 µm in length [140]. Altogether, these results highlight that spatial beam shaping offers powerful but highly parameter-dependent control. The same strategy can either fragment colloids or broaden distributions depending on local fluence, pulse duration, and liquid conditions.
Temporal pulse shaping in PLAL
Temporal pulse shaping is well established in laser material processing to create and modify new materials and enhance micro- and nanomachining processes [5,28]. However, PLAL innovations have been mostly focused on the evaluation of the pulse duration and repetition rate effect on the process. The range of available lasers from CW to ultrashort pulses offers a broad range of parameters. CW laser irradiation generally decreases NPs production yield compared to pulsed sources for continuous large-scale production. When a CW laser is employed, the technique is known as continuous-wave laser ablation in liquid (CLAL). Since CLAL deposits energy continuously, it can lead to the suppression of the cavitation bubble and monodisperse NP size distributions [160,161]. However, the constant emission of CW lasers heats the target, inducing boiling of the surrounding liquid. The boiling liquid and the generated bubbles scatter the incident beam, which makes CLAL unfeasible for continuous or large-scale nanoparticle production [5]. Nanosecond pulses significantly reduce the thermal interaction with the liquid, but their pulse duration is longer than the typical material electron–phonon relaxation time, of the order of 0.1–10 ps for metals, making thermal ablation processes dominant [162]. In the picosecond range, the pulse duration is short enough to reduce excessive heat transfer into the surrounding material, but it is still long enough to allow for localised heating, combining photomechanical and thermal effects in the ablation mechanism. While, in femtosecond pulses, due to their ultrashort nature, the energy is deposited instantaneously into the material. This enables non-thermal ablation, where ionisation and photomechanical effects dominate the material’s response [163,164].
The role of temporal beam shaping in PLAL
In this section, we will address the impact of pulse duration on the mechanisms underlying NP synthesis within liquid media. We will consider the different phenomena from pulse emission from the laser source to NP fabrication. First, we will start with the laser’s interaction with the liquid medium, alongside the nonlinear effects arising therein. Second, we will explore the energy and heat transfer to the ablation target. Finally, we will explore different ablation mechanisms relative to each distinct temporal pulse regime.
The laser beam, before reaching the liquid, propagates in air. If no extreme focusing is carried out, the propagation in air will not be affected by nonlinear effects, which require a high intensity above terawatt per square centimetre. The air–liquid interface represents the first difference between PLAL and material laser processing in air. The change in refractive index shifts the laser focus and introduces spherical aberration [165]. This leads to weaker focusing with higher spot sizes, which reduces the fluence at the focal plane [166]. Fluence at the liquid surface can be controlled by varying the distance between the lens and the ablation system, the focal length, the numerical aperture, or by processing out of focus. When the fluence on the liquid surface surpasses a specific threshold that depends on the liquid, 0.33 J·cm−2 for water, vaporisation occurs [59]. The distance between the lens and the liquid surface, d, to induce vaporisation can be correlated with the vaporisation threshold fluence of the material Φth,vap:
where Φ0 is the focal fluence of the incident laser beam, h is the thickness of the liquid layer over the target and ω is the size of the focused beam.
Intensity also plays a crucial role, defining the emergence of nonlinear interactions. The shorter the temporal duration of a pulse, the stronger the influence of nonlinear effects due to the higher intensities reached. As discussed above, nonlinear effects in liquid media depend on a threshold. In this section, the same optical system and target positioning is assumed, focusing on the temporal features of the pulse. Consequently, the size of the processing spot is the same in every situation considered. Therefore, the dependence of the intensity is the same as the peak power, Ppeak = Ep/τpulse, as it is determined by the duration of the pulse. Different temporal regimes favour the appearance of different nonlinear effects. For shorter pulses, it the easier to reach higher Ppeak [5]. In femtosecond lasers, nonlinear optical absorption is a prominent factor due to the high Ppeak [167], giving raise to self-focusing, filamentation, and optical breakdown [168-170]. The nonlinear effects reduce the energy reaching the target and affect the beam spatial and temporal profile. Picosecond lasers provide a balance between nonlinear optical absorption and thermal diffusion effects [171]. Self-focusing is less intense than with femtosecond pulses, achieving effective focus without significant filamentation when operating at subcritical Ppeak [172]. Nanosecond lasers, with longer pulse duration, have lower Ppeak and thus exhibit weaker nonlinear effects [173]. The longer interaction time shifts the process toward thermal effects, with substantial plasma formation occurring as the material absorbs more heat over time. Plasma screening effects become important, shielding laser energy from reaching the target. These plasma effects are not important with shorter pulses, such as picosecond or femtosecond lasers, allowing higher NP yields. In summary, while femtosecond lasers are highly precise, for PLAL the strong nonlinear effects limit the productivity. Nanosecond lasers exhibit thermal processes that can reduce efficiency. Picosecond lasers represent an intermediate regime where a balance between nonlinear optical absorption and thermal diffusion is achieved. This balance minimises adverse effects such as self-focusing and plasma screening, resulting in a higher NP production efficiency compared to the other pulse regimes. However, the experimental outcomes are strongly determined by the actual parameters including pulse duration and power, intensity and fluence regimes employed in the experiments. It is possible to find nonlinear effects for high-power nanosecond lasers and thermal effects for long femtosecond pulses with high power.
Each laser pulse duration offers a distinct interaction with the ablation target that differs significantly in terms of heat transfer and ablation mechanisms concerning their efficiency and accuracy in NP synthesis in liquids [174]. Pulse regime variations generate unique thermal dynamics affecting material interactions, energy absorption, and potential applications [1,175].
Femtosecond lasers facilitate swift heating that exceeds the pace of the electron–lattice coupling process. The energy deposition rate is sufficiently rapid to confine heat transfer to the irradiated area on the target, thereby restricting thermal conduction to the surrounding materials [175,176]. For laser pulses in the femtosecond range, two ablation mechanisms can be differentiated. Irradiation close to the ablation threshold characterises the “gentle” ablation phase [177]. The ablation rate is low and determined by the optical penetration depth [178]. The rapid ionisation of the material leads to the ejection of charged particles due to electrostatic repulsion, named Coulomb explosion. This process occurs within a few hundred femtoseconds, indicating a swift breakdown of material under the laser influence. Besides, at lower fluences, photomechanical spallation occurs, which involves moderate temperature and pressure, removing material with minimal vaporisation [179]. Surface ripples appear, and the machining area remains relatively smooth. At higher fluences, in the “strong” ablation regime, phase explosion becomes significant, for Au = 0.86 J·cm−2 [180], resulting in a rougher surface and an increased ablation rate [179].
Therefore, the ablated volume ΔV as a function of the fluence is related to the optical penetration depth δ and the electron-thermal penetration depth, l, related to electron heat conduction. Considering that the Gaussian beam fluence distribution follows Φ = Φ0exp(−r2/ω2), with ω being the radius of the beam and Φ0 = E0/πω2 the peak fluence, ΔV is given by:
where Φth is the threshold fluence, E0 is the absorbed energy and with Φth,δ and Φth,l are the threshold fluences regarding the two different penetration depths [20]. The constants A and B in Equation 3 are derived from the experimental data.
In comparison, picosecond pulse durations are in the range of the electron–phonon coupling time of common materials, 1–5 ps, resulting in a local heating process [181]. This energy transfer creates a state of nonthermal equilibrium, where the electron temperature rises quickly before the lattice (atomic structure) can respond, leading to localised heating. The energy is delivered quickly enough to limit significant thermal effects, yet there is still thermal diffusion [176]. For pulses longer than 1 ps, the ablation regime determined by the optical penetration depth is not observed [178]. In the nanosecond regime, the energy is deposited over an extended period, and heat has time to spread through the material. Prolonged energy deposition enables heat conduction, causing a significant increase in temperature over a wider area of the material, leading to gradual heating, melting, and vaporisation [182]. Since the pulse duration exceeds the thermalisation time of most metals [162], the nanosecond regime typically results in thermal effects that impact the irradiated and the surrounding material [174]. It also involves photothermal effects that result in vaporisation, as well as photoionisation, which facilitates plasma generation, ejecting material from the target surface [183]. At high laser fluences, the phase explosion mechanism can occur. The comparison of the different pulse durations, typical parameters, and the associated PLAL mechanisms are summarised in Table 1. Regarding the values displayed in Table 1, the same optical system is assumed consisting of a processing area of 100 µm beam diameter at the focal plane. The pulse durations considered for calculation have been chosen as the most common for each range, 4 ns, 3 ps, and 30 fs.
Table 1: Comparison of temporal pulsed laser ranges in PLAL. Nonlinear effect thresholds correspond to measurements and theoretical calculations performed for the laser interaction with water.
| Pulse duration | Pulse energy | Irradiance/intensity | Laser–target interaction | Ablation mechanism | Nonlinear effects threshold | |
| nanosecond lasers | 10−9 s | 10–500 mJ | 0.2–100 GW·cm−2 | heat conduction, temperature increase | heating, melting, and evaporation |
self-focusing
0.01 TW·cm−2 |
| picosecond lasers | 10−12 s | 10 µJ–10 mJ | 40 GW·cm−2–40 TW·cm−2 | localised heating, thermal diffusion | phase explosion |
filamentation
1 TW·cm−2 |
| femtosecond lasers | 10−15 s | 1 µJ–10 mJ | 0.4 TW·cm−2–4 PW·cm−2 | quick electron–lattice coupling | multiphoton ionisation/phase explosion |
optical breakdown
10 TW·cm−2 |
The role of the laser repetition rate in NP synthesis represents a key area of research within PLAL. The interaction between a laser and a solid target immersed in a liquid generates CBs during plasma cooling [18]. Understanding the dynamics of CB formation and the interaction with subsequent laser pulses is essential for optimising NP yield. Otherwise, the productivity for long-term PLAL experiments will be drastically reduced [184,185]. Therefore, increasing productivity requires higher repetition rates to spatially bypass the bubble [53]. This strategy involves matching the scanning velocity to the bubble size and the laser frequency according to the relationship v = r × f, where v is the scanning velocity, r is the bubble radius, and f is the repetition rate. Advanced laser systems, operating at megahertz frequencies, coupled with high-speed scanners, can reach the highest NP yields [128]. Indeed, the current maximum PLAL productivity was achieved by a fast polygon scanner (500 m·s−1) to spatially bypass the CB, achieving an ablation rate of 8.3 g·h−1 for platinum [54]. The repetition rate significantly affects energy accumulation and heat distribution in the target material [177,186], directly impacting the NP size, shape, and productivity. Studies using femtosecond lasers have highlighted that increasing the repetition rate tends to reduce the mean NP diameter. When the repetition rate is increased, pulse overlap increases proportionally, given that the scanning speed is kept constant. With increasing pulse overlap, the freshly generated NPs further absorb parts of the incoming laser energy from the subsequent pulses. This secondary irradiation can modify their crystallinity and typically results in smaller particle sizes due to laser fragmentation. The phenomenon is continuous and gradual; as the repetition rate increases, the cumulative overlap between successive pulses becomes more pronounced, leading to a progressive reduction in the NPs size [187]. Upon irradiation with a picosecond laser, the CB in water typically exhibits a lifetime of 100 µs and a diameter of 100 µm [53,188]. For nanosecond pulses, it has been reported that the lifetime of CBs can extend to approximately 250 µs, with a maximal radius reaching 1.4 mm [22]. Nonetheless, the CB features are associated with the structural and morphological characteristics of the irradiated sample [189], the fluence applied, and the solvent [10,22,129].
Temporal pulse shaping innovations in PLAL
The relevance of pulse shaping approaches in PLAL can be determined by time-resolved pump–probe measurements that allow to evaluate the early dynamics of PLAL with picosecond and even femtosecond resolution. Those initial features are key to understand the influence of the pulse duration on PLAL and how the interpulse delay in a double-pulse configuration influences the NP formation mechanisms.
Pump-probe microscopy in PLAL. Ultrafast pump–probe microscopy (PPM) is a key technique for understanding processes occurring during PLAL with temporal resolution reaching the femtosecond scale, particularly for providing extensive temporal information about the early moments involving the spallation layer and the initial stages of NP formation. PPM has been employed to monitor NP generation and microparticle fragmentation in liquid with a temporal resolution of 500 fs and a spatial resolution of 600 nm [190]. The whole ablation dynamics of gold irradiated with a peak fluence of Φ0 = 1.5 Φth in air and water was recorded for delay times Δt ranging from picoseconds to microseconds [191,192]. Φth denotes the single-pulse ablation threshold fluence [18]. The results of the transient reflectivity changes ΔR/R0, showed that the ablation dynamics can be divided into seven temporal domains (Figure 16a). PLAL dynamics differ significantly compared to laser ablation in air, following the labels included in Figure 16b and starting from domain . The water layer promotes high-density plasma generation by an interplay of thermionic emission from the hot Au surface and optical breakdown near it. Following plasma dilution in domain
, the target in regime
experiences spallation or phase explosion, depending on the incident peak fluence. In domain
, it could be shown that NPs already form several 100 ps after pump–pulse impact. After NPs are generated, a shock wave is emitted, and a CB is consequently formed at Δt = 1 ns. Therefore, the shock wave and CB dynamics govern the remaining temporal range in domain
, leading to the dispersion of NPs and microbubbles in water within domain
.
Figure 16: Comparison of pump–probe laser ablation experiments of gold immersed in air and water irradiated with an incident peak fluence of Φ0 = 1.5Φthr. (a) Schematic depiction of the ablation dynamics occurring within the seven temporal domains. (b) Transient relative reflectivity change (ΔR/R0) for gold in air and water, with seven temporal domains indicated by red encircled numbers. Figure 16a and Figure 16b were reproduced from [18] (© 2022 M. Spellauge et al., published by Springer Nature, distributed under the terms of the Creative Commons Attribution 4.0 International License, https://creativecommons.org/licenses/by/4.0).
Figure 16: Comparison of pump–probe laser ablation experiments of gold immersed in air and water irradiated wi...
PLAL dynamics span nine orders of magnitude in time, ranging from plasma generation on a picosecond timescale to CB collapse on a microsecond timescale. NP generation occurs on sub-nanosecond timescales, as predicted by computational studies [193,194]. Furthermore, the onset of CB formation could be identified to occur approximately 1 ns after the pulse impact [9,26].
Also, in the femtosecond range, the ablation process of iron in air and water was investigated by PPM for fluences of 0.5 and 2 J·cm−2 [195], as depicted in Figure 17a. As noted above, measurements of the relative change in reflectivity suggest that the surrounding liquid has a significant impact on the ablation process (Figure 17b). In the heating phase, 10 ps after laser impact, there are no significant changes in reflectivity. Once this period has elapsed, the reflectivity does not decrease because of the scattering and absorption of the confinement of the hot target material by the liquid. In contrast to ablation in air, reflectivity increases due to the hot dense metal layer at the plume–liquid interface, as shown in Figure 17c.

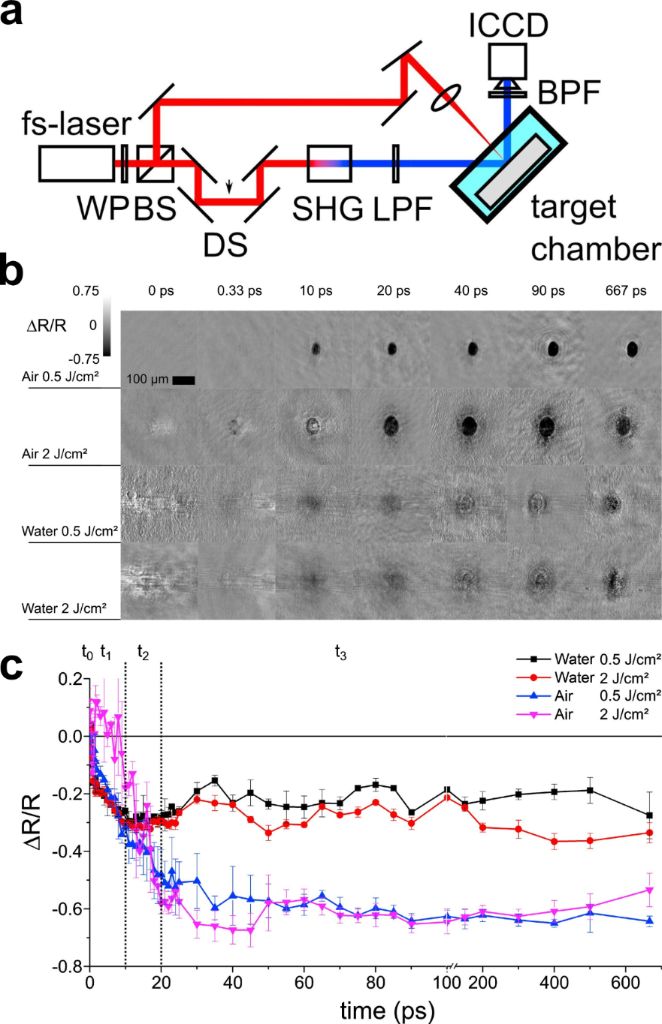

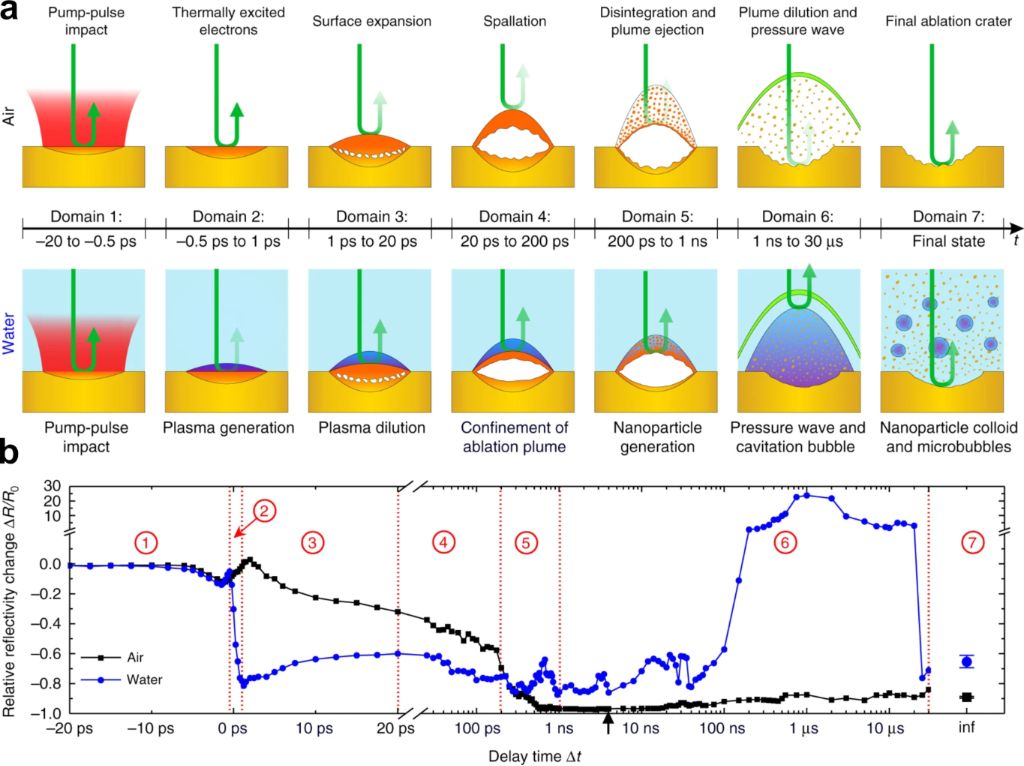

Figure 17: (a) Schematic depiction of the pump–probe experimental setup. (b) Microscopy images of the time-resolved ablation process in air and water for fluences of 0.5 and 2 J·cm−2. (c) Relative reflectivity changes mean-value for ablation in air and in water. Figure 17a–c was reprinted from [195], Applied Surface Science, vol 475, by A. Kanitz, D. J. Förster, J. S. Hoppius, R. Weber, A. Ostendorf, E. L. Gurevich “Pump-probe microscopy of femtosecond laser ablation in air and liquids”, Pages 204–210, Copyright (2018), with permission from Elsevier. This content is not subject to CC BY 4.0.
Figure 17: (a) Schematic depiction of the pump–probe experimental setup. (b) Microscopy images of the time-res...
The ultrafast temporal resolution provided by PPM enables a detailed, real-time understanding of the dynamics of plasma generation, NP formation, and shockwave propagation. PPM has also been successfully applied to probe NP generation by microparticle fragmentation in liquid [190]. PPM experiments also shed light on the influence of different confining liquids on the ablation process [195]. These studies enhance the control and optimisation of PLAL by controlling the ablation mechanism and providing direct information of the most suitable laser parameters, including fluence, pulse duration, and interpulse distance. Moreover, these results highlight the potential for temporal pulse shaping to influence and control the outcomes of PLAL.
A direct comparison between ablation in air and liquids highlights clear differences in thresholds, yields, and mechanisms. For gold, representative ablation thresholds under ultrashort irradiation are typically in the range of 1–2 J·cm−2 incident fluence in air (e.g., 1.3 J·cm−2 at 124 fs, 800 nm) [196]. For picosecond pulses, Spellauge et al. reported ≈1.4 J·cm−2 in air and ≈2.1 J·cm−2 in water, though the corresponding absorbed thresholds are comparable (≈0.04 and ≈0.06 J·cm−2) [18]. In the nanosecond regime, thresholds in water are often higher than in air by a factor of 1.2–1.6 [197]. Regarding NP yield, Dittrich et al. reported ≈5 µg·W−1·s−1 for 3 ps laser ablation of gold in water, which is lower than in air ≈40 µg·W−1·s−1 [136]. Streubel et al. achieved up to 4.0 and 8.3 g·h−1 production rates of Au and Pt NPs in water using high-power picosecond pulses with fast scanning [53,54]; simpler setups typically reach tens of milligrams per hour. This illustrates the strong influence of the laser and liquid parameters on NP yield. Mechanistically, ablation in air is governed by plasma expansion and shockwave emission, while, in liquids, the formation, oscillation, and collapse of cavitation bubbles influences NP nucleation and growth. Absolute threshold and yield values strongly depend on multiple parameters, including pulse duration, laser wavelength and power, liquid and layer thickness, surface preparation of the target, and measurement methodology. Therefore, reported numbers may vary significantly across studies and should be interpreted as representative ranges rather than definitive constants.
Double-pulse PLAL. The control of the interpulse delay represents an approach to tune the dynamics of PLAL by modifying with a second pulse the ablation mechanisms ongoing after the first pulse. PPM measurements provide further insights into the effect of the second pulse depending on the delay [18]. Indeed, different temporal delay regimes have been studied using double-pulse configurations in PLAL, shedding light on the interplay between pulse delay and NP formation and showing modifications of the productivity and NP size distribution [198-203].
Double-pulse laser ablation can be divided into two distinct regimes. In the first regime, the interpulse delay is approximately below 2 ns. The second pulse arrives before the CB is fully formed, and can interact with the spallation layer, the plasma, or the early CB, influencing the NP formation process [18,173]. Double-pulse PLAL Au experiments in the sub-nanosecond regime (300 to 1200 ps) have been performed with a 1064 nm, 10 ps, 100 kHz, 10 W laser, demonstrating that the NP size distribution is modified [204]. A bimodality reduction of up to 9 ± 1 wt % of the large NP fraction was achieved with an interpulse delay of 600 ps, as shown in Figure 18a. Productivity measurements as a function of the pulse delay confirm a reduction at 600 ps. Both findings indicate that the second pulse reaching the target at that pulse delay is likely to interact with the emerging spallation layer generated by the first pulse.

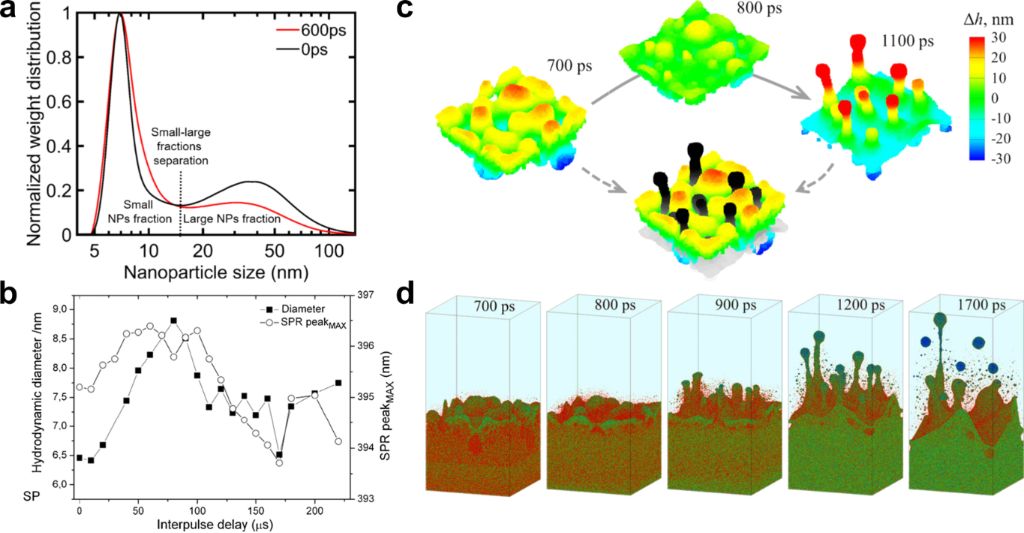

Figure 18: (a) Normalised NP weight distribution as a function of the particle diameter for double-pulse delay times of 0 ps (black line) and 600 ps (red line). The vertical red dotted line at 16 nm shows the selected value that separates the small NP fraction from the large NP fraction. Figure 18a was used with permission from [204] (“Double-pulse laser ablation in liquids: nanoparticle bimodality reduction by sub-nanosecond interpulse delay optimisation”, by C. Doñate-Buendia et al. J. Phys. D. Appl. Phys., vol 56, article no. 104001; published on 22 February 2023; https://doi.org/10.1088/1361-6463/acbaaa); © 2023 IOP Publishing; permission conveyed through Copyright Clearance Center, Inc. All rights reserved. This content is not subject to CC BY 4.0. (b) Hydrodynamic diameter of Ag NPs prepared by double-pulse PLAL as a function of interpulse delay in the µs-regime. Figure 18b was used with permission of Royal Society of Chemistry from [205]; permission conveyed through Copyright Clearance Center, Inc. (c) Surface reconstruction in the initial nanosecond time scale after single-pulse irradiation of a silver metal target for the generated hot metal layer–water interface. (d) Simulated evolution of the hot metal layer–water interface predicted a bulk Ag target with a subsurface void irradiated in water. Figure 18c and Figure 18d were reproduced from [193] (© 2017 Cheng-Yu Shih et al., published by ACS publication, distributed under the terms of the Creative Commons Attribution 4.0 International License, https://creativecommons.org/licenses/by/4.0).
Figure 18: (a) Normalised NP weight distribution as a function of the particle diameter for double-pulse delay...
In the second regime, the interpulse delay exceeds 2 ns, resulting in the irradiation of the CB, hence influencing the CB and NP coalescence and growth [204]. Double-pulse PLAL was used for the laser synthesis of Si NPs in ethanol, indicating an enhancement of NP productivity with better control over the NP size distribution [203]. For longer delays, it has been proved experimentally that it is possible to reduce the NP size distribution by controlling the temporal separation of the double pulse on the microsecond scale [205]. The second pulse interacts with the first expanding and collapsing CB, with a time scale of 0–200 µs [205], as shown in Figure 18b, reducing drastically the NP diameter. However, simulations developed for the temporal evolution of material ejected in PLAL (Figure 18c,d) indicate that material ejection can be more effectively influenced in a time scale of nanoseconds, that is, at the time scale before the CB is formed [193].
The physical origin of the modality change lies in the evolving state of the target–liquid interface after the first pulse. For interpulse delays below 2 ns, the surface remains in a highly non-equilibrium state. A molten layer persists, dense plasma clouds are present near the target, and cavitation bubble growth is still incipient. Under these conditions, it is hypothesised that for a specific interpulse delay, which is material-dependent (600 ps for Au), the second pulse couples into the spallation layer, interacting with it and reducing the formation of larger NPs [204]. In contrast, for delays exceeding 2 ns, the target surface has already cooled and partially re-solidified, and the dominant structure is the CB produced by the first pulse. The second pulse therefore interacts primarily with this bubble, changing its expansion and collapse dynamics, which govern NP aggregation and growth. Consequently, shorter delays mainly influence direct target modification, the spallation layer, and the initial material ejection dynamics. For longer delays, the second pulse interacts with the CB, influencing NP nucleation and formation. This mechanistic view explains the experimentally observed transition between the two regimes.
In addition to being able to temporarily adjust the interpulse delay, double-pulse PLAL experiments allow to adjust the lateral separation of synchronous pulses. When the separation between simultaneously irradiated spots is considerably larger than the maximum CB size, the ablation events can be considered independent, and the sizes of the produced NPs are identical to those obtained with a single beam [55,56]. However, if the spot separation and bubble size are comparable, the neighbouring bubbles start to interact, resulting in a modification of the bubbles dynamics. This technique, called synchronous double-pulse PLAL, has been used to understand bubble interaction effects on the NP size [206]. The dynamics of closely positioned bubbles were investigated for the case of dual-beam PLAL of gold and yttrium aluminium garnet (YAG) in water [207]. Figure 19a shows selected shadowgraph images of the interacting bubbles during their evolution at different interpulse distances ∆x. Synchronised bubble pairs are generated with the same pulse energy (Ep). At a small spot separation, two times the maximum bubble height (≈2Hmax), an internal wall between two adjacent bubbles is formed followed by bubble merging with the formation of a larger combined bubble. The bubble interaction dynamics essentially affect the NP formation process, significantly increasing NP hydrodynamic diameters by a factor of up to 3.7, as shown in Figure 19b. In contrast, bubbles separated at large distances of 4Hmax, result in NP size distributions like those produced by single-pulse experiments (no separation between synchronous beams). The merging and collapse of these bubbles lead to larger NP sizes, indicating that bubble dynamics influence the particle size distribution (Figure 19c–e). Therefore, the variation of the interpulse lateral distance in synchronous double-pulse PLAL allows one to control the NP size distribution. This technique represents an alternative approach to tune the size of colloidal NPs without affecting their purity [207].

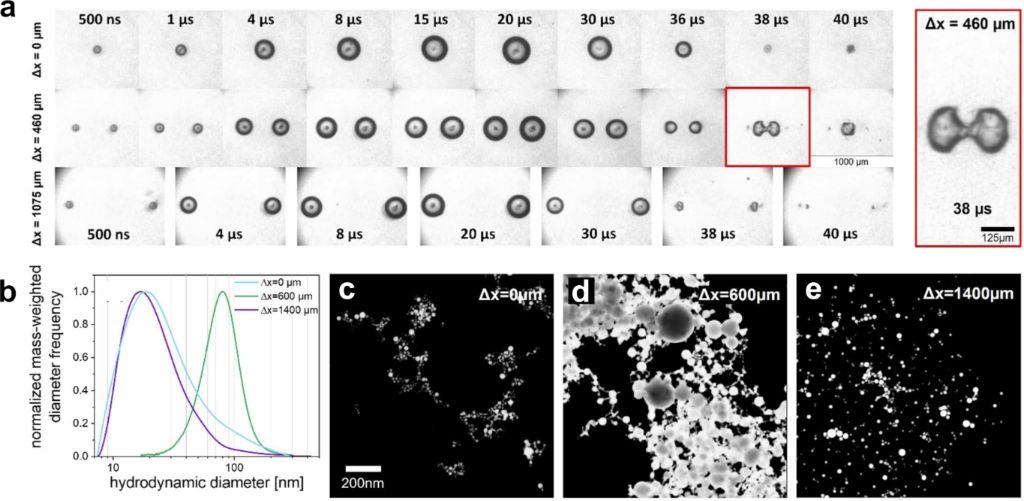

Figure 19: (a) Shadowgraph images of CBs produced by ps dual-beam PLAL of YAG in water at the energy in each pulse of 470 µJ and different interpulse distances at Δx = 0, 460, and 1075 µm. The 1000 μm scale bar is the same for all image series. The magnification of the bubble pair image at 2Hmax has been highlighted. (b) Hydrodynamic mass-weighted particle diameter distributions measured by analytical disk centrifuge for Au NPs. (c–e) HAADF-STEM images of Au NPs synthesised for interpulse distances Δx = 0, 600, and 1400 μm. The scale bar is the same for all images. Figure 19a–e was reproduced with permission from [206], © 2023 Chinese Laser Press. This content is not subject to CC BY 4.0.
Figure 19: (a) Shadowgraph images of CBs produced by ps dual-beam PLAL of YAG in water at the energy in each p...
Pulse duration effect on PLAL ablation rate and nanoparticle yield. In the previous sections, different approaches to control the NP size distribution have been described. However, in every case, the pulse duration was kept constant, and the nanoparticle yield remained the same compared to single-pulse experiments or was even reduced. Hence, ablation efficiency experiments are key for understanding the optimum laser pulse duration for each material. These experiments characterise the material removal and NP formation, providing insights into how pulse duration influences ablation efficiency and NP production.
Ablation efficiency exhibits a decline as the pulse duration increases beyond the picosecond range, shown in Figure 20, largely due to plasma shielding effects and enhanced heat conduction losses, which limit material removal efficiency and precision. Operating in the picosecond pulse regime mitigates nonlinear effects, typically observed at high power levels reached for femtosecond pulses. When subcritical conditions are maintained, picosecond pulses enable stable energy deposition, promoting a more controlled and efficient NP synthesis process [170].

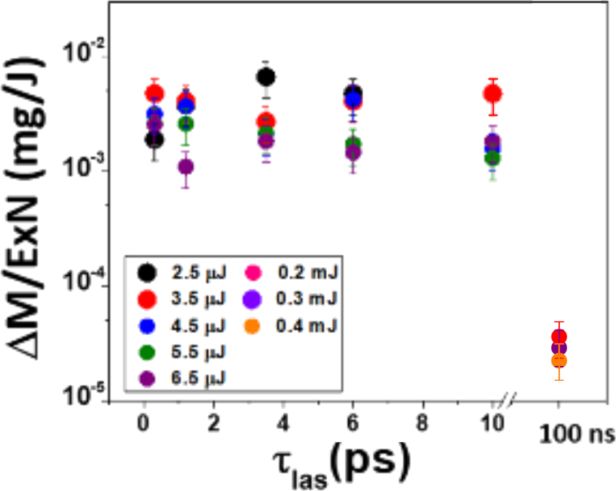

Figure 20: Dependence of mass loss on the pulse duration for different pulse energy and 85 nm film thickness. Figure 20 was used with permission from [208] (“Optimisation of nanoparticle yield for biomedical applications at femto-, pico- and nanosecond laser ablation of thin gold films in water”, by A. Nastulyavichus et al. Laser Phys. Lett., vol 19, article no. 045603; published on 4 March 2022; https://doi.org/10.1088/1612-202X/ac581a); © 2022 IOP Publishing; permission conveyed through Copyright Clearance Center, Inc. All rights reserved. This content is not subject to CC BY 4.0.
Figure 20: Dependence of mass loss on the pulse duration for different pulse energy and 85 nm film thickness. Figure 20...
As shown in Figure 21a and Figure 21b, the results of ablation in air and water show opposite trends in terms of pulse duration. For ablation in air, the femtosecond range is optimal, due to the high peak power, increasing the production of NPs with increasing fluence. In water, the highest ablation volume and crater depth is found for picosecond pulses. The reduced yield for PLAL at femtosecond pulses is associated to nonlinear effects in the liquid and the corresponding energy losses and beam profile disturbance. Figure 21c depicts how the ablation crater in water increases considerably when using a laser in the picosecond range, 10 ps, compared to a sub-picosecond laser, 300 fs.

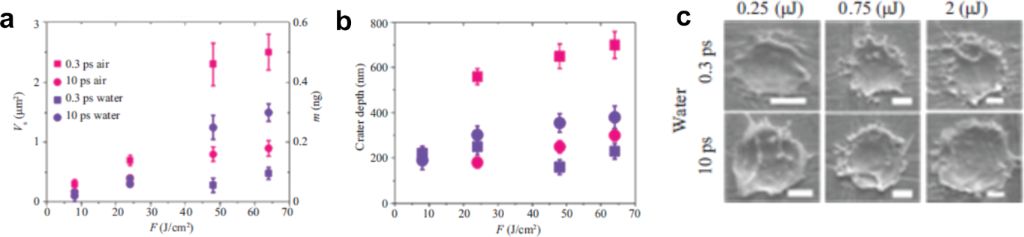

Figure 21: Pulse width dependence with pulse energy for (a) ablated mass and (b) crater depth in water. (c) Crater shape after ablation. Scale bar: 1 µm. Figure 21a–c was used with permission from [170] (“Quantitative evaluation of LAL productivity of colloidal nanomaterials: Which laser pulse width is more productive, ergonomic, and economic?”, by A. Nastulyavichus et al. Chinese Phys. B, vol 31, article no. 077803; published on 6 November 2021; https://doi.org/10.1088/1674-1056/ac5602); © 2022 IOP Publishing; permission conveyed through Copyright Clearance Center, Inc. All rights reserved. This content is not subject to CC BY 4.0.
Figure 21: Pulse width dependence with pulse energy for (a) ablated mass and (b) crater depth in water. (c) Cr...
In addition, the ablation threshold and pulse duration relationship has been studied in gold films immersed in water by varying the target thickness [208]. Thickness and pulse duration influence the energy required for effective material removal. For 175 and 330 nm thicknesses, the ablation threshold decreases as pulse duration increases. Longer pulse durations in the picosecond range (10 ps) allow for greater energy deposition depth during electron–phonon coupling. In contrast, thinner films, 85 nm, show relatively stable ablation thresholds across varying pulse durations, as shown in Figure 22a. For thin films, the ablation process is less influenced by thermal diffusion and more dependent on rapid energy transfer. The energy required for ablation remains relatively constant because heat is more effectively dissipated to the surrounding liquid compared to thicker films. In air, mass loss is more efficient for shorter pulse durations (sub-picosecond range, 300 fs) due to the reduced thermal diffusion effects [208]. Nevertheless, in water, a longer pulse duration between 2 and 6 ps increases crater depth up to 300–400 nm, as demonstrated in Figure 22b,c. This is attributed to the decrease in peak power, which reduces the influence of nonlinear interactions with the liquid, maximising the energy reaching the target surface. Overall, the morphology of the craters is influenced by the interplay between pulse duration and the resulting thermal and nonlinear effects during the ablation process [168]. In the nanosecond range, crater depth and volume decrease, shifting from precision ablation to greater thermal interaction and reduced efficiency. Nanosecond pulses produce broader, less defined craters with increased convexity, exceeding the beam diameter at higher energies. In this range, plasma formation, shielding, and scattered energy reduce ablation efficiency compared to shorter pulses. Prolonged interaction decreases particle size and uniformity control, enabling mass removal under a well-established plasma scaling relationship [170].

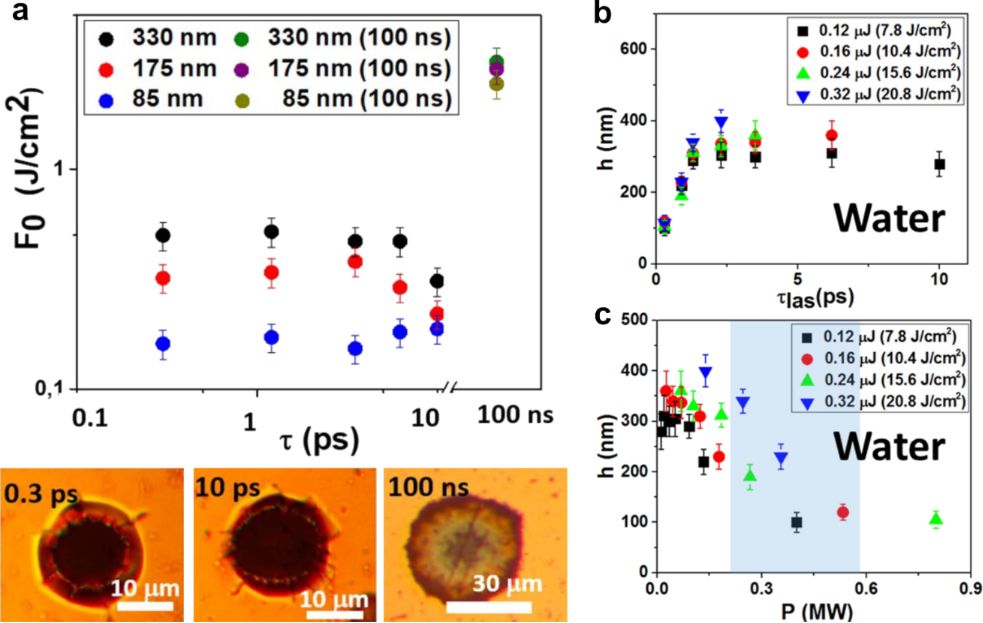

Figure 22: (a) Threshold fluence dependence on the pulse duration; insets: optical images of single-pulse craters in films of 330 nm thickness (E = 4.5 µJ for 0.3, 10 ps; 0.5 mJ for 100 ns). Figure 22a was used with permission from [208] (“Optimisation of nanoparticle yield for biomedical applications at femto-, pico- and nanosecond laser ablation of thin gold films in water”, by A. Nastulyavichus et al. Laser Phys. Lett., vol 19, article no. 045603; published on 4 March 2022; https://doi.org/10.1088/1612-202X/ac581a); © 2022 IOP Publishing; permission conveyed through Copyright Clearance Center, Inc. All rights reserved. This content is not subject to CC BY 4.0. (b) Dependences of the crater depth on different pulse durations at fixed energy values in water. (c) Ablation depth versus peak power for ablation in water. Figure 22b and Figure 22c were used with permission from [168] (“Ablation efficiency of gold at fs/ps laser treatment in water and air”, by N. A. Smirnov et al. Laser Phys. Lett., vol 19, article no. 026001; published on 13 January 2022; https://doi.org/10.1088/1612-202X/ac46ab); © 2022 IOP Publishing; permission conveyed through Copyright Clearance Center, Inc. All rights reserved. This content is not subject to CC BY 4.0.
Figure 22: (a) Threshold fluence dependence on the pulse duration; insets: optical images of single-pulse crat...
Experimental evidence shows that pulse duration critically governs ablation mechanisms, NP yield, and size control in PLAL. CW irradiation leads to inefficient large-scale NP generation due to continuous heating, liquid boiling, and beam scattering. Nanosecond pulses favour thermal ablation and plasma shielding, producing wide, thermally affected craters and lower yields [208]. Picosecond pulses provide an optimal balance between nonlinear absorption and thermal diffusion, maximising ablation volume (crater depths of 300–400 nm) and NP yield, with record productivities of 8.3 g·h−1 reported for Pt using megahertz repetition rates and high-speed scanning (500 m·s−1) [54]. Femtosecond pulses enable highly localised, nonthermal ablation but suffer from strong nonlinear effects (self-focusing and filamentation), reducing productivity compared to picosecond pulses [170]. Higher repetition rates (≥200 kHz) decrease mean NP size via secondary irradiation, while double-pulse PLAL allows for additional control: delays of 600 ps reduce the large-NP fraction by ≈9 wt % [204], and microsecond-scale delays tune the cavitation bubble dynamics, further narrowing size distributions [205].
Spatiotemporal beam shaping techniques in PLAL
The techniques explored in the previous sections propose the incorporation of temporal or spatial beam shaping techniques to the standard PLAL methodology to upscale NP production or control the size distribution obtained. However, there are techniques that modify the beam both spatially and temporally to combine the benefits of both approaches for PLAL.
Simultaneous spatial and temporal focusing femtosecond PLAL
The difficulties related to nonlinear interactions of the femtosecond pulses with the liquid mentioned in the previous sections limit their employment in PLAL when high productivity is required. To address this limitation and reduce the nonlinear interactions, a simultaneous spatial and temporal focusing (SSTF) setup was proposed. The key idea of SSTF is to employ a diffractive grating to add a spatial chirp to the femtosecond beam, so the different spectral components are separated and only recombine at the spatial focus of the objective lens. Thus, the temporal pulse width becomes a function of the distance while propagating from the lens to the target, with the shortest pulse width recovered at the focal spot. The use of femtosecond lasers in PLAL presents a key limitation related to energy attenuation within the liquid medium [1]. The extremely high peak power of ultrashort pulses often induces nonlinear optical phenomena, such as filamentation and optical breakdown, prior to reaching the target surface, which significantly decreases ablation efficiency. The SSTF configuration effectively mitigates these drawbacks by confining the peak intensity to a narrow focal region [60]. In this setup, the pulse duration lengthens away from the focus, suppressing nonlinear propagation effects and, thereby, enhancing the effective energy transfer to the target (Figure 23d).
Figure 23: Images of Au colloids as function of the pulse energy (I – 100 µJ, II – 120 µJ, III – 140 µJ, IV – 160 µJ, V – 180 µJ, and VI – 200 µJ) for (a) SSTF, (b) IOS and (c) COS systems. (d) Implemented experimental setup of the SSTF technique for femtosecond laser ablation in liquid. (e) Productivity values obtained from the colloids in (a), (b), and (c), proving the enhanced SSTF production. Figure 23a–e was reproduced with permission from [60], © 2019 Chinese Laser Press. This content is not subject to CC BY 4.0.
Figure 23: Images of Au colloids as function of the pulse energy (I – 100 µJ, II – 120 µJ, III – 140 µJ, IV – ...
The proposed SSTF Au NP production (Figure 23a) is compared against an analogous image system (IOS) without temporal focusing effect (Figure 23b) based on a 4f system that collimates the beam, followed by focusing with a spherical lens, and the conventional PLAL setup (COS) directly using the beam output and focusing it with a standard spherical lens (Figure 23c). The characterisation of the energy losses through different water layers confirms a maximum energy loss of 5% for the SSTF setup, 40% for the IOS system, and 70% for the COS, showing the large reduction of nonlinear effects when employing SSTF PLAL compared to the standard femtosecond PLAL (COS). The increase of the energy delivered to the target confirms that, as for ablation in air, femtosecond pulses represent an efficient pulse duration for ablation processes. The Au NP productivity is increased by a factor of two compared to the standard femtosecond PLAL system even when experimental parameters such as fluence are favourable for the conventional femtosecond PLAL system. When compared with a system with the same parameters (IOS), the NP productivity increase factor is enhanced to ten [60].
Multibeam PLAL
After exploring the spatial and temporal beam influence on PLAL, an unexplored limitation is the employment of a single beam. Generally, using a single beam in laser applications such as material processing and NP synthesis limits the processing speed and NP yield. Yet, alternatives to the single beam have been explored only scarcely for PLAL. Multibeam (MB) irradiation for PLAL has been proposed employing a diffractive optical element (DOE) to split the laser beam into several sub-beams [209] to reduce energy losses associated, for example, with a programmable spatial light modulator [210]. Modern DOEs are flexible and reliable devices that enable the reshaping of a laser beam to almost any desirable distribution, for example, creating a line or a 2D pattern of sub-beams, while maintaining the parameters of the light source (beam size, divergence, and polarisation). The MB technique is currently widely used in various laser applications such as material processing [211,212], optical sensing [213,214], and lithography [215]. Recently, first experiments on multibeam laser ablation in liquids (MB-PLAL) were performed to investigate the possibility of increasing the productivity of the synthesis of colloidal alloy NPs [55,56]. Different DOEs with splitting factors from two to eleven and a standard galvanometric scanner were used. The increased efficiency of MB-PLAL for NP production was demonstrated (Figure 24). With eleven beams, the obtained productivity was 3–4 times higher than that of standard single-beam PLAL and, for FeNi NPs, it reached 1.6 g·h−1, which is comparable in terms of production per watt with the record values for PLAL-produced NPs obtained with a fast polygon scanning system, which is expensive and not widely available [53]. The size distributions of the NPs obtained with MB and single-beam PLAL setups are found to be identical [55,56].

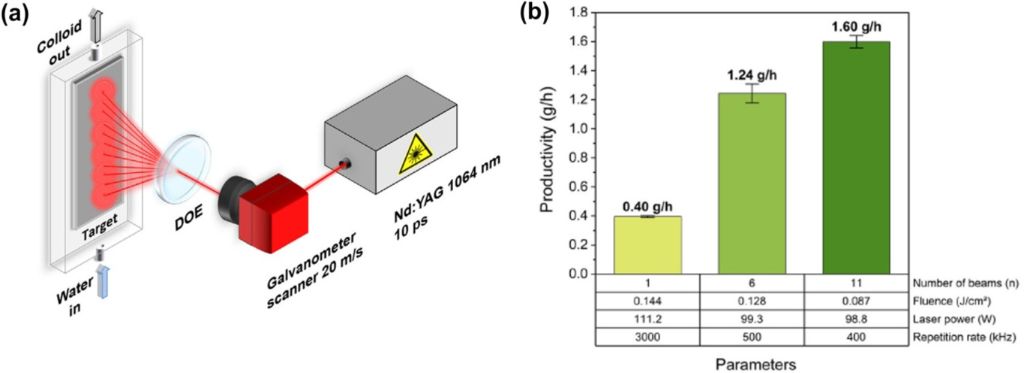

Figure 24: (a) Schematic illustration of the MB-PLAL process. (b) Productivity of FeNi NPs in water with a different number of laser beams. Figure 24a and Figure 24b were reproduced from [55] (© 2024 I. Y. Khairani et al., published by Wiley-VCH GmbH, distributed under the terms of the Creative Commons Attribution 4.0 International License, https://creativecommons.org/licenses/by/4.0).
Figure 24: (a) Schematic illustration of the MB-PLAL process. (b) Productivity of FeNi NPs in water with a dif...
It is important to underline that the increase in the NP productivity by MB-PLAL is not due to simply a larger number of laser beams but due to the possibility of bypassing the CB, the main limiting factor in single-beam PLAL [53]. To maintain the optimum fluence when the laser beam is split, the repetition rate is reduced by the same factor as the number of beams generated. The fact that the pulse repetition rate can be reduced proportionally to the DOE splitting factor to keep the same number of pulses per time helps to bypass the bubble both temporally (the interpulse time can be shorter than the bubble lifetime) and spatially (the interpulse distance at a given scanning speed can be smaller than the lateral bubble size). Gatsa et al. [56] investigated in detail the effects of these two factors separately (keeping all the rest of PLAL parameters fixed) and demonstrated that, at certain conditions (e.g., very short interpulse distances), the gain in productivity with MB-PLAL can be even higher than the DOE beam splitting factor (examples of the dependencies for high-entropy alloy NPs are shown in Figure 25). The obtained results suggest that the PLAL productivity of NPs at the level of several grams per hour can be routinely achieved by the multibeam approach using modern compact kilowatt-class lasers and simple inexpensive scanning systems.

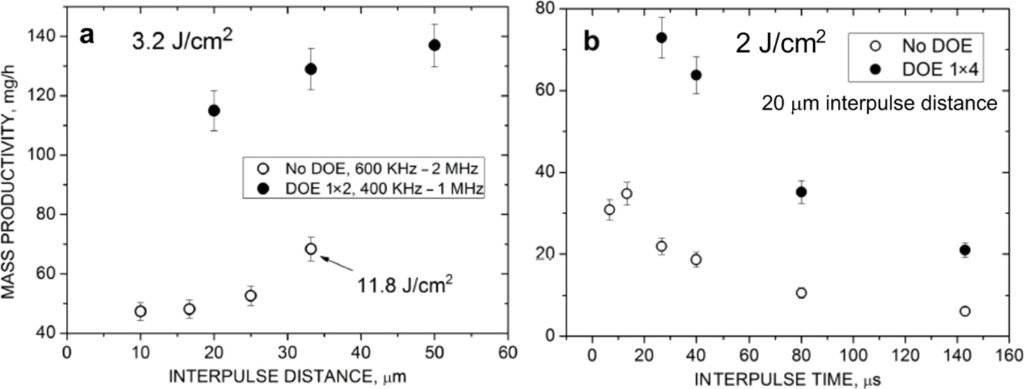

Figure 25: Productivity of CrFeCoNiMn high entropy alloy NPs by ps PLAL in water with and without DOEs as a function of (a) interpulse distance and (b) interpulse time. Figure 25a and Figure 25b were reproduced from [56] (© 2024 O. Gatsa et al., published by MDPI, distributed under the terms of the Creative Commons Attribution 4.0 International License, https://creativecommons.org/licenses/by/4.0).
Figure 25: Productivity of CrFeCoNiMn high entropy alloy NPs by ps PLAL in water with and without DOEs as a fu...
SSTF represents a major step forward for femtosecond PLAL. By spatially chirping the beam so that the shortest pulse duration is recovered only at the focal spot, SSTF suppresses nonlinear effects such as filamentation and optical breakdown. Experimental data confirm that energy losses in water drop dramatically with SSTF (≈5%) compared to IOS (≈40%) and conventional PLAL (≈70%), enabling more efficient energy delivery. As a result, Au NP productivity increases two times relative to standard femtosecond PLAL and 10 times compared to IOS systems using the same parameters [60]. MB-PLAL further enhances scalability by splitting a single beam into multiple sub-beams using DOEs. Productivity scales nearly linearly with the number of beams, reaching 1.6 g·h−1 for FeNi NPs with eleven beams with simple and accessible equipment. MB-PLAL bypasses cavitation bubble limitations both temporally and spatially, allowing for a repetition rate reduction while maintaining the same total number of pulses. Under short interpulse distances, productivity gains can even exceed the DOE splitting factor, indicating strong potential for routine NP production in the gram-per-hour range using compact kilowatt-class lasers [55]. Together, SSTF and MB-PLAL demonstrate that combining spatial and temporal control is a powerful route toward highly productive, energy-efficient, and scalable PLAL systems without compromising NP size distribution.
Future Perspectives
The production of NPs via PLAL needs careful consideration of multiple parameters, including laser fluence, irradiance, focal length, beam shape, temporal pulse range, and repetition rate, to thoroughly evaluate and optimise productivity. A key advantage of PLAL over chemical synthesis lies in its simplicity and versatility, requiring only basic components such as a laser, scanner, chamber, liquid, and target. However, unresolved issues still need to be addressed to unlock the full potential of PLAL and enable further advancements in its scalability and efficiency for broader industrial use. The current review covers beam shaping strategies towards the overcoming of the current PLAL limitations. Further approaches related to beam shaping and beam control strategies are yet to be explored, representing an opened research field towards the industrialisation of PLAL and its broadening of applications:
Raster scanning speed-up. Raster and galvanometer laser scans are growing at breakneck pace, driven by emerging trends such as machine learning and digitalisation of experiments [53,54]. As it is possible to obtain better control and energy distribution on the sample, the production rates of NPs have considerably increased. These technologies aim to improve motion control, refine trajectory planning, and facilitate predictive maintenance, enhancing both accuracy and reliability. The production of pulsed laser nanomaterials in liquid media could achieve significant qualitative and quantitative advancements by correcting optical aberrations introduced by optical elements. This would enable the development of advanced focusing techniques, such as processing with focal structures generated by cylindrical lenses or optimising lens types for immersion in liquids. Integrating high-speed processing systems with application-specific, customised optical configurations presents a promising approach to addressing persistent challenges that currently limit the efficiency of PLAL.
Smart beam optical delivery systems. By integrating advanced beam delivery systems, the aim is to reduce the stiffness of the system by mitigating nonlinear effects, using SSTF, as well as to spatially structure the beam both statically, using diffractive optical elements or free-form optics, and dynamically, using spatial light modulators or digital micromirror devices. Normally, the high-power laser used in PLAL exceeds, by several orders of magnitude, the optimum energy required for laser ablation. Therefore, parallel processing [216], different spatial profiles [217], or systems for focusing through turbid media [218] present an effective alternative to enhanced NP yield. Furthermore, the application of metamaterials in NP synthesis presents significant potential. Metamaterials can be engineered to precisely control light–matter interactions, optimising laser energy absorption in the target material and enhancing ablation efficiency. Moreover, metamaterials exhibiting negative refractive indices or plasmonic resonances can be strategically designed to localise and intensify energy deposition in the target, enabling more controlled and efficient ablation processes. The PLAL scientific community must keep abreast of technologies developed in other fields that may be adaptable for PLAL applications.
Boost efficiency across different pulse duration ranges. Knowing and using the appropriate temporal range for each application will not only allow for the generation and modification of nanomaterials with specific properties but will also reduce, or even eliminate, the post-processing steps common in industrial applications, reducing costs and production time. The duration of the laser pulse plays a crucial role in the synthesis of nanocomposites, affecting nearly every stage of their formation, including morphology, composition, atomic redistribution, structural shape, oxidation processes, vacancy generation, and crystallisation dynamics [219-224]. To precisely control PLAL nanomaterials, enhancing productivity across various pulse width regimes is crucial, rather than limiting high production to picosecond pulses alone. Additionally, it is worth noting that the potential of extremely short pulse durations, such as those in the attosecond range, remains unexplored for NP generation in PLAL.
Tailoring strategies in temporal regime. Tailoring the temporal pulse envelope of ultrashort pulses could be introduced to the PLAL method. While existing techniques, such as double-pulse laser irradiation [203-205] or burst-pulse irradiation, still require further investigation to optimise productivity. The door is now open for further research in more complex areas such as ablation with shorter pulses in the attosecond regime. Furthermore, the ability to shape the temporal profile of laser pulses offers a means to fine-tune energy delivery rates to align with specific material reactions, highlighting the need for continued development of these temporal beam manipulation techniques.
Automatization of NP synthesis: Automated processes significantly outperform humans in speed, and feedback systems enable real-time adjustments during fabrication. Process automation in tasks like liquid refilling, beam focalisation, and component cleaning reduces variations caused by human error. This also lessens the labour-intensive nature of PLAL, saving time that would otherwise be lost to production halts and reducing downtime. While some studies have explored off-site fabrication monitoring and management [15], achieving broader commercialisation of PLAL will require higher levels of automation. In this way, analysing datasets on target material properties, laser parameters, and liquid media could be automatized by artificial intelligence algorithms [225]. The development of dedicated digital tools for augmenting the research outcome and reproducibility can determine the best conditions for NP synthesis. Additionally, this enhanced understanding of optimal PLAL conditions can accelerate production scaling, reduce trial-and-error experimentation and enable large-scale output to meet market demands.
Fluid mechanics and ablation chamber designs. While various fluid dynamics strategies have been developed to enhance production rates, such as modifications to the ablation chamber, there is still potential for improvement. In this regard, improved fluid mechanics simulations can optimise not only the chamber design but also the management of turbulence, bubble removal, reduction of NP accumulation areas, and the selection of the liquid for appropriate applications. Also, the use of 3D printing offers an innovative alternative to manufacturing ablation chambers in PLAL, allowing for customised designs that optimise fluid flow, reduce material redeposition and improve NP stability. It also facilitates the integration of channels, filters, and surfaces with specific properties to modulate process dynamics. The use of advanced laser-compatible materials and the possibility of rapid prototyping speed up system experimentation and optimisation, even going as far as to automatize the procedure of designing a chamber. Overall, this technology improves the efficiency, reproducibility, and control of the nanoparticle synthesis process.
The growing global population and its increasing demands necessitate the development of more efficient methods for nanomaterial synthesis. PLAL has emerged as a versatile and promising technique, with extensive applications and significant support from the scientific community focused on advancing eco-friendly fabrication technologies. Enhancing the productivity of PLAL is a critical objective as it could significantly lower the cost and increase the accessibility of sustainable nanomaterial production for diverse stakeholders, including researchers, industries, and consumers. Furthermore, improving PLAL productivity will expand its applicability, unlocking new opportunities for innovation.
Acknowledgements
The authors are very grateful to the “Serveis Centrals d’Instrumentació Científica” (SCIC) of the University Jaume I. The graphical abstract is reprinted from [5], (“Green nanoparticle synthesis at scale: a perspective on overcoming the limits of pulsed laser ablation in liquids for high-throughput production” © 2023 I. Khairani, et al., published by The Royal Society of Chemistry, distributed under the terms of the Creative Commons Attribution-NonCommercial 3.0 Unported Deed License, https://creativecommons.org/licenses/by-nc/3.0/). This content is not subject to CC BY 4.0.
Funding
This work has been funded by Ministerio de Ciencia e Innovación with grant PRE2020-094889 funded by MCIN/AEI/ 10.13039/501100011033, “ESF Investing in your future”. The project PID2022-142907OB-I00 funded by MCIN/AEI/10.13039/501100011033 and “ERDF: A Way of Making Europe” and research project PID2023-153196OB-I00 funded by MICIU/AEI/10.13039/501100011033, by FEDER, and UE. N.M.B. and A.V.B acknowledge funding from the European Regional Development Fund and the State Budget of the Czech Republic (project SenDiSo: CZ.02.01.01/00/22_008/0004596). A.V.B acknowledges support from the Czech Science Foundation (GAČR), project 22-38449L. C.D-B. acknowledges support from Generalitat Valenciana (CIDEIG/2023/08) and University Jaume I (UJI-2024-21). S. M-P., J.L. and G.M-V. thank Generalitat Valenciana for funding project CIPROM/2023/44.
Data Availability Statement
Data sharing is not applicable as no new data was generated or analyzed in this study.
References
-
Zhang, D.; Gökce, B.; Barcikowski, S. Chem. Rev. 2017, 117, 3990–4103. doi:10.1021/acs.chemrev.6b00468
Return to citation in text: [1] [2] [3] -
Fazio, E.; Gökce, B.; De Giacomo, A.; Meneghetti, M.; Compagnini, G.; Tommasini, M.; Waag, F.; Lucotti, A.; Zanchi, C. G.; Ossi, P. M.; Dell’Aglio, M.; D’Urso, L.; Condorelli, M.; Scardaci, V.; Biscaglia, F.; Litti, L.; Gobbo, M.; Gallo, G.; Santoro, M.; Trusso, S.; Neri, F. Nanomaterials 2020, 10, 2317. doi:10.3390/nano10112317
Return to citation in text: [1] [2] -
Yang, G. W. Prog. Mater. Sci. 2007, 52, 648–698. doi:10.1016/j.pmatsci.2006.10.016
Return to citation in text: [1] -
Zeng, H.; Du, X.-W.; Singh, S. C.; Kulinich, S. A.; Yang, S.; He, J.; Cai, W. Adv. Funct. Mater. 2012, 22, 1333–1353. doi:10.1002/adfm.201102295
Return to citation in text: [1] -
Khairani, I. Y.; Mínguez-Vega, G.; Doñate-Buendía, C.; Gökce, B. Phys. Chem. Chem. Phys. 2023, 25, 19380–19408. doi:10.1039/d3cp01214j
Return to citation in text: [1] [2] [3] [4] [5] [6] [7] -
Fojtik, A.; Giersig, M.; Henglein, A. Ber. Bunsen-Ges. 1993, 97, 1493–1496. doi:10.1002/bbpc.19930971112
Return to citation in text: [1] -
Henglein, A. J. Phys. Chem. 1993, 97, 5457–5471. doi:10.1021/j100123a004
Return to citation in text: [1] -
Mehta, K.; Kumar, P.; Kushawaha, R. K.; Baruah, P. K. J. Laser Appl. 2024, 36, 042005. doi:10.2351/7.0001613
Return to citation in text: [1] -
Kanitz, A.; Kalus, M.-R.; Gurevich, E. L.; Ostendorf, A.; Barcikowski, S.; Amans, D. Plasma Sources Sci. Technol. 2019, 28, 103001. doi:10.1088/1361-6595/ab3dbe
Return to citation in text: [1] [2] [3] -
Long, J.; Eliceiri, M.; Vangelatos, Z.; Rho, Y.; Wang, L.; Su, Z.; Xie, X.; Zhang, Y.; Grigoropoulos, C. P. Opt. Express 2020, 28, 14300. doi:10.1364/oe.391584
Return to citation in text: [1] [2] -
Shaheen, M. E.; Abdelwahab, A. Y. E. Opt. Laser Technol. 2025, 186, 112705. doi:10.1016/j.optlastec.2025.112705
Return to citation in text: [1] -
Ahmed, S. F.; Mofijur, M.; Rafa, N.; Chowdhury, A. T.; Chowdhury, S.; Nahrin, M.; Islam, A. B. M. S.; Ong, H. C. Environ. Res. 2022, 204, 111967. doi:10.1016/j.envres.2021.111967
Return to citation in text: [1] -
Coviello, V.; Forrer, D.; Amendola, V. ChemPhysChem 2022, 23, e202200136. doi:10.1002/cphc.202200136
Return to citation in text: [1] -
Jendrzej, S.; Gökce, B.; Epple, M.; Barcikowski, S. ChemPhysChem 2017, 18, 1012–1019. doi:10.1002/cphc.201601139
Return to citation in text: [1] [2] [3] -
Crivellaro, S.; Guadagnini, A.; Arboleda, D. M.; Schinca, D.; Amendola, V. Rev. Sci. Instrum. 2019, 90, 033902. doi:10.1063/1.5083811
Return to citation in text: [1] [2] -
Ming, W.; Hu, S.; Xie, Z.; Zhang, F.; Zhang, G.; Guo, X.; Huang, H. Opt. Laser Technol. 2024, 174, 110618. doi:10.1016/j.optlastec.2024.110618
Return to citation in text: [1] -
Sobhan, M. A.; Ams, M.; Withford, M. J.; Goldys, E. M. J. Nanopart. Res. 2010, 12, 2831–2842. doi:10.1007/s11051-010-9868-7
Return to citation in text: [1] -
Spellauge, M.; Doñate-Buendía, C.; Barcikowski, S.; Gökce, B.; Huber, H. P. Light: Sci. Appl. 2022, 11, 68. doi:10.1038/s41377-022-00751-6
Return to citation in text: [1] [2] [3] [4] [5] [6] [7] -
Dell’Aglio, M.; Santagata, A.; Valenza, G.; De Stradis, A.; De Giacomo, A. ChemPhysChem 2017, 18, 1165–1174. doi:10.1002/cphc.201601231
Return to citation in text: [1] -
Kanitz, A.; Hoppius, J. S.; Fiebrandt, M.; Awakowicz, P.; Esen, C.; Ostendorf, A.; Gurevich, E. L. Appl. Phys. A: Mater. Sci. Process. 2017, 123, 674. doi:10.1007/s00339-017-1280-z
Return to citation in text: [1] [2] [3] -
Berthe, L.; Fabbro, R.; Peyre, P.; Tollier, L.; Bartnicki, E. J. Appl. Phys. 1997, 82, 2826–2832. doi:10.1063/1.366113
Return to citation in text: [1] -
Lam, J.; Lombard, J.; Dujardin, C.; Ledoux, G.; Merabia, S.; Amans, D. Appl. Phys. Lett. 2016, 108, 074104. doi:10.1063/1.4942389
Return to citation in text: [1] [2] [3] -
Chemin, A.; Fawaz, M. W.; Amans, D. Appl. Surf. Sci. 2022, 574, 151592. doi:10.1016/j.apsusc.2021.151592
Return to citation in text: [1] -
Lee, S. J.; Theerthagiri, J.; Choi, M. Y. Chem. Eng. J. 2022, 427, 130970. doi:10.1016/j.cej.2021.130970
Return to citation in text: [1] -
Ando, K.; Nakajima, T. Nanoscale 2020, 12, 9640–9646. doi:10.1039/c9nr10560c
Return to citation in text: [1] -
Chen, C.; Zhigilei, L. V. Light: Sci. Appl. 2022, 11, 111. doi:10.1038/s41377-022-00800-0
Return to citation in text: [1] [2] -
Shih, C.-Y.; Shugaev, M. V.; Wu, C.; Zhigilei, L. V. Phys. Chem. Chem. Phys. 2020, 22, 15769. doi:10.1039/d0cp90142c
Return to citation in text: [1] -
Rehbock, C.; Jakobi, J.; Gamrad, L.; van der Meer, S.; Tiedemann, D.; Taylor, U.; Kues, W.; Rath, D.; Barcikowski, S. Beilstein J. Nanotechnol. 2014, 5, 1523–1541. doi:10.3762/bjnano.5.165
Return to citation in text: [1] [2] -
Amendola, V.; Amans, D.; Ishikawa, Y.; Koshizaki, N.; Scirè, S.; Compagnini, G.; Reichenberger, S.; Barcikowski, S. Chem. – Eur. J. 2020, 26, 9206–9242. doi:10.1002/chem.202000686
Return to citation in text: [1] -
Abed, M. A.; Mutlak, F. A.-H.; Ahmed, A. F.; Nayef, U. M.; Abdulridha, S. K.; Jabir, M. S. J. Phys.: Conf. Ser. 2021, 1795, 012013. doi:10.1088/1742-6596/1795/1/012013
Return to citation in text: [1] -
Xu, X.; Xu, F.; Qu, C.; Jiang, G.; Yu, H.; Repich, H.; Han, H.; Cao, F.; Li, L.; Wang, H. Adv. Funct. Mater. 2021, 31, 2101059. doi:10.1002/adfm.202101059
Return to citation in text: [1] -
Swiatkowska-Warkocka, Z.; Pyatenko, A.; Krok, F.; Jany, B. R.; Marszalek, M. Sci. Rep. 2015, 5, 9849. doi:10.1038/srep09849
Return to citation in text: [1] -
Torresan, V.; Forrer, D.; Guadagnini, A.; Badocco, D.; Pastore, P.; Casarin, M.; Selloni, A.; Coral, D.; Ceolin, M.; Fernández van Raap, M. B.; Busato, A.; Marzola, P.; Spinelli, A. E.; Amendola, V. ACS Nano 2020, 14, 12840–12853. doi:10.1021/acsnano.0c03614
Return to citation in text: [1] -
Torres-Mendieta, R.; Ventura-Espinosa, D.; Sabater, S.; Lancis, J.; Mínguez-Vega, G.; Mata, J. A. Sci. Rep. 2016, 6, 30478. doi:10.1038/srep30478
Return to citation in text: [1] -
Gurbatov, S. O.; Puzikov, V.; Storozhenko, D.; Modin, E.; Mitsai, E.; Cherepakhin, A.; Shevlyagin, A.; Gerasimenko, A. V.; Kulinich, S. A.; Kuchmizhak, A. A. ACS Appl. Mater. Interfaces 2023, 15, 3336–3347. doi:10.1021/acsami.2c18999
Return to citation in text: [1] [2] -
Waag, F.; Li, Y.; Ziefuß, A. R.; Bertin, E.; Kamp, M.; Duppel, V.; Marzun, G.; Kienle, L.; Barcikowski, S.; Gökce, B. RSC Adv. 2019, 9, 18547–18558. doi:10.1039/c9ra03254a
Return to citation in text: [1] -
Fieser, D.; Lan, Y.; Gulino, A.; Compagnini, G.; Aaron, D.; Mench, M.; Bridges, D.; Shortt, H.; Liaw, P.; Hu, A. Nanomaterials 2024, 14, 554. doi:10.3390/nano14060554
Return to citation in text: [1] -
Tahir, S.; Smoliarova, T.; Doñate-Buendía, C.; Farle, M.; Shkodich, N.; Gökce, B. Beilstein J. Nanotechnol. 2025, 16, 823–836. doi:10.3762/bjnano.16.62
Return to citation in text: [1] -
Zhang, D.; Li, Z.; Sugioka, K. J. Phys.: Photonics 2021, 3, 042002. doi:10.1088/2515-7647/ac0bfd
Return to citation in text: [1] -
Kabashin, A. V.; Meunier, M. J. Appl. Phys. 2003, 94, 7941–7943. doi:10.1063/1.1626793
Return to citation in text: [1] -
Menazea, A. A. Radiat. Phys. Chem. 2020, 168, 108616. doi:10.1016/j.radphyschem.2019.108616
Return to citation in text: [1] [2] [3] -
Fernández-Arias, M.; Vilas, A. M.; Boutinguiza, M.; Rodríguez, D.; Arias-González, F.; Pou-Álvarez, P.; Riveiro, A.; Gil, J.; Pou, J. Nanomaterials 2022, 12, 2621. doi:10.3390/nano12152621
Return to citation in text: [1] [2] -
Das, A.; Akkanaboina, M.; Rathod, J.; Sai Prasad Goud, R.; Ravi Kumar, K.; Reddy, R. C.; Ravendran, R.; Vutova, K.; Nageswara Rao, S. V. S.; Soma, V. R. Beilstein J. Nanotechnol. 2024, 15, 1639–1653. doi:10.3762/bjnano.15.129
Return to citation in text: [1] -
Mostafa, A. M.; Mwafy, E. A. J. Mater. Res. Technol. 2020, 9, 3241–3248. doi:10.1016/j.jmrt.2020.01.071
Return to citation in text: [1] -
Heidarinassab, S.; Nyabadza, A.; Ahad, I. U.; Brabazon, D. Materials 2024, 17, 4527. doi:10.3390/ma17184527
Return to citation in text: [1] -
Nayak, S. K.; Ahmed, M. S.; Velpandian, M.; Meduri, P.; Rathod, J.; Soma, V. R.; Raavi, S. S. K. Opt. Mater. (Amsterdam, Neth.) 2024, 147, 114630. doi:10.1016/j.optmat.2023.114630
Return to citation in text: [1] -
Mangababu, A.; Sai Prasad Goud, R.; Byram, C.; Rathod, J.; Banerjee, D.; Rao Soma, V.; Nageswara Rao, S. V. S. Appl. Surf. Sci. 2022, 589, 152802. doi:10.1016/j.apsusc.2022.152802
Return to citation in text: [1] -
Choi, I.; Lee, S.-J.; Kim, J. C.; Kim, Y.-g.; Hyeon, D. Y.; Hong, K.-S.; Suh, J.; Shin, D.; Jeong, H. Y.; Park, K.-I. Appl. Surf. Sci. 2020, 511, 145614. doi:10.1016/j.apsusc.2020.145614
Return to citation in text: [1] -
Jendrzej, S.; Gondecki, L.; Debus, J.; Moldenhauer, H.; Tenberge, P.; Barcikowski, S.; Gökce, B. Appl. Surf. Sci. 2019, 467–468, 811–818. doi:10.1016/j.apsusc.2018.10.060
Return to citation in text: [1] -
Peggiani, S.; Marabotti, P.; Lotti, R. A.; Facibeni, A.; Serafini, P.; Milani, A.; Russo, V.; Li Bassi, A.; Casari, C. S. Phys. Chem. Chem. Phys. 2020, 22, 26312–26321. doi:10.1039/d0cp04132g
Return to citation in text: [1] [2] -
Yang, L.; May, P. W.; Yin, L.; Brown, R.; Scott, T. B. Chem. Mater. 2006, 18, 5058–5064. doi:10.1021/cm061485e
Return to citation in text: [1] -
Zheng, J.; Zheng, Z.; Gong, W.; Hu, X.; Gao, W.; Ren, X.; Zhao, H. Chem. Phys. Lett. 2008, 465, 275–278. doi:10.1016/j.cplett.2008.10.014
Return to citation in text: [1] -
Streubel, R.; Barcikowski, S.; Gökce, B. Opt. Lett. 2016, 41, 1486. doi:10.1364/ol.41.001486
Return to citation in text: [1] [2] [3] [4] [5] [6] [7] [8] [9] -
Waag, F.; Streubel, R.; Gökce, B.; Barcikowski, S. Appl. Nanosci. 2021, 11, 1303–1312. doi:10.1007/s13204-021-01693-y
Return to citation in text: [1] [2] [3] [4] [5] [6] -
Khairani, I. Y.; Spellauge, M.; Riahi, F.; Huber, H. P.; Gökce, B.; Doñate‐Buendía, C. Adv. Photonics Res. 2024, 5, 2300290. doi:10.1002/adpr.202300290
Return to citation in text: [1] [2] [3] [4] [5] [6] [7] -
Gatsa, O.; Tahir, S.; Flimelová, M.; Riahi, F.; Doñate-Buendia, C.; Gökce, B.; Bulgakov, A. V. Nanomaterials 2024, 14, 365. doi:10.3390/nano14040365
Return to citation in text: [1] [2] [3] [4] [5] [6] -
Wagener, P.; Schwenke, A.; Chichkov, B. N.; Barcikowski, S. J. Phys. Chem. C 2010, 114, 7618–7625. doi:10.1021/jp911243a
Return to citation in text: [1] -
Monsa, Y.; Gal, G.; Lerner, N.; Bar, I. Nanotechnology 2020, 31, 235601. doi:10.1088/1361-6528/ab78ac
Return to citation in text: [1] -
Menéndez-Manjón, A.; Wagener, P.; Barcikowski, S. J. Phys. Chem. C 2011, 115, 5108–5114. doi:10.1021/jp109370q
Return to citation in text: [1] [2] [3] [4] [5] [6] [7] [8] -
Doñate-Buendía, C.; Fernández-Alonso, M.; Lancis, J.; Mínguez-Vega, G. Photonics Res. 2019, 7, 1249. doi:10.1364/prj.7.001249
Return to citation in text: [1] [2] [3] [4] [5] [6] -
Kohsakowski, S.; Santagata, A.; Dell’Aglio, M.; de Giacomo, A.; Barcikowski, S.; Wagener, P.; Gökce, B. Appl. Surf. Sci. 2017, 403, 487–499. doi:10.1016/j.apsusc.2017.01.077
Return to citation in text: [1] -
Scaramuzza, S.; de Faria, C. M. G.; Coviello, V.; Forrer, D.; Artiglia, L.; Badocco, D.; Pastore, P.; Ghigna, P.; Postuma, I.; Cansolino, L.; Ferrari, C.; Bortolussi, S.; Vago, R.; Spinelli, A. E.; Bekić, M.; Čolić, M.; Amendola, V. Adv. Funct. Mater. 2023, 33, 2303366. doi:10.1002/adfm.202303366
Return to citation in text: [1] [2] -
Aiyyzhy, K. O.; Barmina, E. V.; Zavestovskaya, I. N.; Kasatova, A. I.; Petrunya, D. S.; Uvarov, O. V.; Saraykin, V. V.; Zhilnikova, M. I.; Voronov, V. V.; Shafeev, G. A.; Taskaev, S. Y.; Zelepukin, I. V.; Deyev, S. M. Laser Phys. Lett. 2022, 19, 066002. doi:10.1088/1612-202x/ac642c
Return to citation in text: [1] -
Pereira, P. F. S.; de Paula e Silva, A. C. A.; da Silva Pimentel, B. N. A.; Pinatti, I. M.; Simões, A. Z.; Vergani, C. E.; Barreto-Vieira, D. F.; da Silva, M. A. N.; Miranda, M. D.; Monteiro, M. E. S.; Tucci, A.; Doñate-Buendía, C.; Mínguez-Vega, G.; Andrés, J.; Longo, E. Sci. Rep. 2022, 12, 8118. doi:10.1038/s41598-022-11902-5
Return to citation in text: [1] -
Mwenze, N. M.; Juma, M.; Maaza, M.; Birech, Z.; Dhlamini, M. S. Mater. Today: Proc. 2023, in press. doi:10.1016/j.matpr.2023.08.195
Return to citation in text: [1] -
Mostafa, A. M.; Mwafy, E. A.; Hasanin, M. S. Opt. Laser Technol. 2020, 121, 105824. doi:10.1016/j.optlastec.2019.105824
Return to citation in text: [1] -
Geoffrion, L. D.; Hesabizadeh, T.; Medina-Cruz, D.; Kusper, M.; Taylor, P.; Vernet-Crua, A.; Chen, J.; Ajo, A.; Webster, T. J.; Guisbiers, G. ACS Omega 2020, 5, 2660–2669. doi:10.1021/acsomega.9b03172
Return to citation in text: [1] [2] -
Fernández-Arias, M.; Boutinguiza, M.; Del Val, J.; Covarrubias, C.; Bastias, F.; Gómez, L.; Maureira, M.; Arias-González, F.; Riveiro, A.; Pou, J. Appl. Surf. Sci. 2020, 507, 145032. doi:10.1016/j.apsusc.2019.145032
Return to citation in text: [1] -
Khashan, K. S.; Abdulameer, F. A.; Jabir, M. S.; Hadi, A. A.; Sulaiman, G. M. Adv. Nat. Sci.: Nanosci. Nanotechnol. 2020, 11, 035010. doi:10.1088/2043-6254/aba1de
Return to citation in text: [1] -
Amendola, V.; Guadagnini, A.; Agnoli, S.; Badocco, D.; Pastore, P.; Fracasso, G.; Gerosa, M.; Vurro, F.; Busato, A.; Marzola, P. J. Colloid Interface Sci. 2021, 596, 332–341. doi:10.1016/j.jcis.2021.03.096
Return to citation in text: [1] -
Pastukhov, A. I.; Shipunova, V. O.; Babkova, J. S.; Zelepukin, I. V.; Raab, M.; Schmitt, R.; Al-Kattan, A.; Pliss, A.; Kuzmin, A.; Popov, A. A.; Klimentov, S. M.; Prasad, P. N.; Deyev, S. M.; Kabashin, A. V. ACS Appl. Nano Mater. 2024, 7, 18737–18754. doi:10.1021/acsanm.4c01970
Return to citation in text: [1] [2] -
Riedel, R.; Mahr, N.; Yao, C.; Wu, A.; Yang, F.; Hampp, N. Nanoscale 2020, 12, 3007–3018. doi:10.1039/c9nr07129f
Return to citation in text: [1] -
Doñate-Buendia, C.; Torres-Mendieta, R.; Pyatenko, A.; Falomir, E.; Fernández-Alonso, M.; Mínguez-Vega, G. ACS Omega 2018, 3, 2735–2742. doi:10.1021/acsomega.7b02082
Return to citation in text: [1] [2] -
Zwiehoff, S.; Johny, J.; Behrends, C.; Landmann, A.; Mentzel, F.; Bäumer, C.; Kröninger, K.; Rehbock, C.; Timmermann, B.; Barcikowski, S. Small 2022, 18, 2106383. doi:10.1002/smll.202106383
Return to citation in text: [1] -
Popov, A. L.; Kolmanovich, D. D.; Chukavin, N. N.; Zelepukin, I. V.; Tikhonowski, G. V.; Pastukhov, A. I.; Popov, A. A.; Shemyakov, A. E.; Klimentov, S. M.; Ryabov, V. A.; Deyev, S. M.; Zavestovskaya, I. N.; Kabashin, A. V. Molecules 2024, 29, 3936. doi:10.3390/molecules29163936
Return to citation in text: [1] -
Cortes, F. R. U.; Falomir, E.; Lancis, J.; Mínguez-Vega, G. Appl. Surf. Sci. 2024, 665, 160326. doi:10.1016/j.apsusc.2024.160326
Return to citation in text: [1] -
Chen, T.; Yang, F.; Wu, X.; Chen, Y.; Yang, G. Carbon 2020, 167, 196–201. doi:10.1016/j.carbon.2020.06.003
Return to citation in text: [1] -
Ji, S.; Li, P.; Zhao, X.; Wei, S.; Cheng, X.; Wu, L.; Ye, Y.; Ma, K.; Cai, Y.; Liang, C. Sens. Actuators, B 2023, 383, 133595. doi:10.1016/j.snb.2023.133595
Return to citation in text: [1] -
Lanza, G.; Betancourth, D.; Avila, A.; Riascos, H.; Perez-Taborda, J. A. Kuwait J. Sci. 2025, 52, 100294. doi:10.1016/j.kjs.2024.100294
Return to citation in text: [1] -
Lee, S. J.; Lee, H.; Begildayeva, T.; Yu, Y.; Theerthagiri, J.; Kim, Y.; Lee, Y. W.; Han, S. W.; Choi, M. Y. Biosens. Bioelectron. 2022, 197, 113766. doi:10.1016/j.bios.2021.113766
Return to citation in text: [1] -
Molina-Prados, S.; Cros, A.; Martínez-León, L.; Krečmarová, M.; Sánchez-Royo, J. F.; Lancis, J.; Mínguez-Vega, G.; Garro, N. Appl. Surf. Sci. 2025, 713, 164287. doi:10.1016/j.apsusc.2025.164287
Return to citation in text: [1] -
Torres‐Mendieta, R.; Mondragón, R.; Puerto‐Belda, V.; Mendoza‐Yero, O.; Lancis, J.; Juliá, J. E.; Mínguez‐Vega, G. ChemPhysChem 2017, 18, 1055–1060. doi:10.1002/cphc.201601083
Return to citation in text: [1] -
Seifikar, F.; Azizian, S.; Eslamipanah, M.; Jaleh, B. Sol. Energy 2022, 246, 74–88. doi:10.1016/j.solener.2022.09.040
Return to citation in text: [1] -
Mondragón, R.; Torres-Mendieta, R.; Meucci, M.; Mínguez-Vega, G.; Enrique Juliá, J.; Sani, E. J. Photonics Energy 2016, 6, 034001. doi:10.1117/1.jpe.6.034001
Return to citation in text: [1] -
Doñate-Buendia, C.; Kürnsteiner, P.; Stern, F.; Wilms, M. B.; Streubel, R.; Kusoglu, I. M.; Tenkamp, J.; Bruder, E.; Pirch, N.; Barcikowski, S.; Durst, K.; Schleifenbaum, J. H.; Walther, F.; Gault, B.; Gökce, B. Acta Mater. 2021, 206, 116566. doi:10.1016/j.actamat.2020.116566
Return to citation in text: [1] -
Logunov, L.; Ulesov, A.; Khramenkova, V.; Liu, X.; Kuchmizhak, A. A.; Vinogradov, A.; Makarov, S. Nanomaterials 2023, 13, 965. doi:10.3390/nano13060965
Return to citation in text: [1] -
Hupfeld, T.; Wegner, A.; Blanke, M.; Doñate‐Buendía, C.; Sharov, V.; Nieskens, S.; Piechotta, M.; Giese, M.; Barcikowski, S.; Gökce, B. Adv. Opt. Mater. 2020, 8, 2000473. doi:10.1002/adom.202000473
Return to citation in text: [1] -
Forsythe, R. C.; Cox, C. P.; Wilsey, M. K.; Müller, A. M. Chem. Rev. 2021, 121, 7568–7637. doi:10.1021/acs.chemrev.0c01069
Return to citation in text: [1] -
Cuadra, J. G.; Molina-Prados, S.; Mínguez-Vega, G.; Estrada, A. C.; Trindade, T.; Oliveira, C.; Seabra, M. P.; Labrincha, J.; Porcar, S.; Cadena, R.; Fraga, D.; Carda, J. B. Appl. Surf. Sci. 2023, 617, 156519. doi:10.1016/j.apsusc.2023.156519
Return to citation in text: [1] -
Jaleh, B.; Sahraei, A.; Eslamipanah, M.; Seifikar, F.; Azizian, S.; Jalali, S.; Enghardt, S.; Kruppke, B.; Khonakdar, H. A.; Gawande, M. B. Nano-Struct. Nano-Objects 2025, 42, 101471. doi:10.1016/j.nanoso.2025.101471
Return to citation in text: [1] -
Ye, F.; Musselman, K. P. APL Mater. 2024, 12, 050602. doi:10.1063/5.0199104
Return to citation in text: [1] -
Choi, J.-G.; Baek, S.; Lee, J.; Park, S. Int. J. Extreme Manuf. 2025, 7, 062001. doi:10.1088/2631-7990/ade836
Return to citation in text: [1] -
Cortes, F. R. U.; Falomir, E.; Doñate-Buendía, C.; Mínguez-Vega, G. J. Phys. Chem. C 2025, 129, 10378–10414. doi:10.1021/acs.jpcc.5c01343
Return to citation in text: [1] -
Peckus, D.; Mykolaitis, J.; Tamulevičienė, A.; Klimaitė, G.; Khatmi, G.; Juodėnas, M.; Lazauskas, A.; Tamulevičius, S.; Tamulevičius, T. Opt. Mater. (Amsterdam, Neth.) 2025, 161, 116796. doi:10.1016/j.optmat.2025.116796
Return to citation in text: [1] -
Hendel, T.; Wuithschick, M.; Kettemann, F.; Birnbaum, A.; Rademann, K.; Polte, J. Anal. Chem. (Washington, DC, U. S.) 2015, 87, 5846–5847. doi:10.1021/acs.analchem.5b01602
Return to citation in text: [1] -
Cui, T. J.; Zhang, S.; Alù, A.; Wegener, M.; Pendry, S. J.; Luo, J.; Lai, Y.; Wang, Z.; Lin, X.; Chen, H.; Chen, P.; Wu, R.-X.; Yin, Y.; Zhao, P.; Chen, H.; Li, Y.; Zhou, Z.; Engheta, N.; Asadchy, V.; Simovski, C.; Tretyakov, S.; Yang, B.; Campbell, S. D.; Hao, Y.; Werner, D. H.; Sun, S.; Zhou, L.; Xu, S.; Sun, H.-B.; Zhou, Z.; Li, Z.; Zheng, G.; Chen, X.; Li, T.; Zhu, S.; Zhou, J.; Zhao, J.; Liu, Z.; Zhang, Y.; Zhang, Q.; Gu, M.; Xiao, S.; Liu, Y.; Zhang, X.; Tang, Y.; Li, G.; Zentgraf, T.; Koshelev, K.; Kivshar, Y.; Li, X.; Badloe, T.; Huang, L.; Rho, J.; Wang, S.; Tsai, D. P.; Bykov, A. Y.; Krasavin, A. V.; Zayats, A. V.; McDonnell, C.; Ellenbogen, T.; Luo, X.; Pu, M.; Garcia-Vidal, F. J.; Liu, L.; Li, Z.; Tang, W.; Ma, H. F.; Zhang, J.; Luo, Y.; Zhang, X.; Zhang, H. C.; He, P. H.; Zhang, L. P.; Wan, X.; Wu, H.; Liu, S.; Jiang, W. X.; Zhang, X. G.; Qiu, C.-W.; Ma, Q.; Liu, C.; Li, L.; Han, J.; Li, L.; Cotrufo, M.; Caloz, C.; Deck-Léger, Z.-L.; Bahrami, A.; Céspedes, O.; Galiffi, E.; Huidobro, P. A.; Cheng, Q.; Dai, J. Y.; Ke, J. C.; Zhang, L.; Galdi, V.; di Renzo, M. J. Phys.: Photonics 2024, 6, 032502. doi:10.1088/2515-7647/ad1a3b
Return to citation in text: [1] -
Tsuji, T.; Nakanishi, M.; Mizuki, T.; Ozono, S.; Tsuji, M.; Tsuboi, Y. Sci. Adv. Mater. 2012, 4, 391–400. doi:10.1166/sam.2012.1295
Return to citation in text: [1] -
Mauclair, C.; Najih, B.; Comte, V.; Bourquard, F.; Delaigue, M. Opto-Electron. Sci. 2025, 4, 250002. doi:10.29026/oes.2025.250002
Return to citation in text: [1] -
Forbes, A. Laser Photonics Rev. 2019, 13, 1900140. doi:10.1002/lpor.201900140
Return to citation in text: [1] -
Wu, R.; Feng, Z.; Zheng, Z.; Liang, R.; Benítez, P.; Miñano, J. C.; Duerr, F. Laser Photonics Rev. 2018, 12, 1700310. doi:10.1002/lpor.201700310
Return to citation in text: [1] -
Torres-Peiró, S.; González-Ausejo, J.; Mendoza-Yero, O.; Mínguez-Vega, G.; Andrés, P.; Lancis, J. Opt. Express 2013, 21, 31830–31836. doi:10.1364/oe.21.031830
Return to citation in text: [1] -
Torres-Peiró, S.; González-Ausejo, J.; Mendoza-Yero, O.; Mínguez-Vega, G.; Lancis, J. Appl. Surf. Sci. 2014, 303, 393–398. doi:10.1016/j.apsusc.2014.03.012
Return to citation in text: [1] -
Salter, P. S.; Booth, M. J. Light: Sci. Appl. 2019, 8, 110. doi:10.1038/s41377-019-0215-1
Return to citation in text: [1] -
Martínez-León, L.; Clemente, P.; Tajahuerce, E.; Mínguez-Vega, G.; Mendoza-Yero, O.; Fernández-Alonso, M.; Lancis, J.; Climent, V.; Andrés, P. Appl. Phys. Lett. 2009, 94, 011104. doi:10.1063/1.3063047
Return to citation in text: [1] -
Förster, D. J.; Jäggi, B.; Michalowski, A.; Neuenschwander, B. Materials 2021, 14, 3331. doi:10.3390/ma14123331
Return to citation in text: [1] -
Weiner, A. M. Rev. Sci. Instrum. 2000, 71, 1929–1960. doi:10.1063/1.1150614
Return to citation in text: [1] -
Mínguez-Vega, G.; Mendoza-Yero, O.; Lancis, J.; Gisbert, R.; Andrés, P. Opt. Express 2008, 16, 16993–16998. doi:10.1364/oe.16.016993
Return to citation in text: [1] -
Leaird, D. E.; Weiner, A. M. IEEE J. Quantum Electron. 2001, 37, 494–504. doi:10.1109/3.914397
Return to citation in text: [1] -
Kerse, C.; Kalaycıoğlu, H.; Elahi, P.; Çetin, B.; Kesim, D. K.; Akçaalan, Ö.; Yavaş, S.; Aşık, M. D.; Öktem, B.; Hoogland, H.; Holzwarth, R.; Ilday, F. Ö. Nature 2016, 537, 84–88. doi:10.1038/nature18619
Return to citation in text: [1] -
Rao, D. C. K.; Mooss, V. S.; Mishra, Y. N.; Hanstorp, D. Sci. Rep. 2022, 12, 18680. doi:10.1038/s41598-022-23194-w
Return to citation in text: [1] [2] [3] -
Ashcom, J. B.; Gattass, R. R.; Schaffer, C. B.; Mazur, E. J. Opt. Soc. Am. B 2006, 23, 2317–2322. doi:10.1364/josab.23.002317
Return to citation in text: [1] -
Couairon, A.; Mysyrowicz, A. Phys. Rep. 2007, 441, 47–189. doi:10.1016/j.physrep.2006.12.005
Return to citation in text: [1] [2] -
Fibich, G.; Gaeta, A. L. Opt. Lett. 2000, 25, 335–337. doi:10.1364/ol.25.000335
Return to citation in text: [1] -
Gudkov, S. V.; Astashev, M. E.; Baimler, I. V.; Uvarov, O. V.; Voronov, V. V.; Simakin, A. V. J. Phys. Chem. B 2022, 126, 5678–5688. doi:10.1021/acs.jpcb.2c02089
Return to citation in text: [1] -
Sepehri Javan, N.; Naderali, R.; Hosseinpour Azad, M.; Najafi, M. N. Phys. Plasmas 2018, 25, 082310. doi:10.1063/1.5043277
Return to citation in text: [1] -
Davletshin, Y. R.; Kumaradas, J. C. Beilstein J. Nanotechnol. 2016, 7, 869–880. doi:10.3762/bjnano.7.79
Return to citation in text: [1] -
Wen, X.; Lin, Q.; Niu, G.; Shi, Q.; Duan, Y. Appl. Opt. 2016, 55, 6706–6712. doi:10.1364/ao.55.006706
Return to citation in text: [1] -
Romero, C.; Borrego-Varillas, R.; Camino, A.; Mínguez-Vega, G.; Mendoza-Yero, O.; Hernández-Toro, J.; Vázquez de Aldana, J. R. Opt. Express 2011, 19, 4977–4984. doi:10.1364/oe.19.004977
Return to citation in text: [1] -
Borrego-Varillas, R.; Perez-Vizcaino, J.; Mendoza-Yero, O.; Minguez-Vega, G.; de Aldana, J. R. V.; Lancis, J. IEEE Photonics Technol. Lett. 2014, 26, 1661–1664. doi:10.1109/lpt.2014.2330362
Return to citation in text: [1] -
Besner, S.; Kabashin, A. V.; Meunier, M. Appl. Phys. Lett. 2006, 89, 233122. doi:10.1063/1.2402944
Return to citation in text: [1] -
Videla, F. A.; Torchia, G. A.; Schinca, D. C.; Scaffardi, L. B.; Moreno, P.; Méndez, C.; Giovanetti, L. J.; Ramallo Lopez, J. M.; Roso, L. J. Appl. Phys. 2010, 107, 114308. doi:10.1063/1.3428432
Return to citation in text: [1] [2] -
Belmouaddine, H.; Shi, M.; Sanche, L.; Houde, D. Phys. Chem. Chem. Phys. 2018, 20, 23403–23413. doi:10.1039/c8cp02054j
Return to citation in text: [1] -
Tangeysh, B.; Moore Tibbetts, K.; Odhner, J. H.; Wayland, B. B.; Levis, R. J. J. Phys. Chem. C 2013, 117, 18719–18727. doi:10.1021/jp4056494
Return to citation in text: [1] -
Nakamura, T.; Yamazaki, Y.; Sato, S. KONA Powder Part. J. 2022, 39, 110–118. doi:10.14356/kona.2022002
Return to citation in text: [1] -
Saraeva, I. N.; Luong, N. V.; Kudryashov, S. I.; Rudenko, A. A.; Khmelnitskiy, R. A.; Shakhmin, A. L.; Kharin, A. Y.; Ionin, A. A.; Zayarny, D. A.; Tung, D. H.; Duong, P. V.; Minh, P. H. J. Photochem. Photobiol., A 2018, 360, 125–131. doi:10.1016/j.jphotochem.2018.04.004
Return to citation in text: [1] -
Mendoza-Yero, O.; Carbonell-Leal, M.; Doñate-Buendía, C.; Mínguez-Vega, G.; Lancis, J. Opt. Express 2016, 24, 15307–15318. doi:10.1364/oe.24.015307
Return to citation in text: [1] -
Liu, W.; Kosareva, O.; Golubtsov, I. S.; Iwasaki, A.; Becker, A.; Kandidov, V. P.; Chin, S. L. Appl. Phys. B: Lasers Opt. 2003, 76, 215–229. doi:10.1007/s00340-002-1087-1
Return to citation in text: [1] -
Vogel, A.; Linz, N.; Freidank, S.; Paltauf, G. Phys. Rev. Lett. 2008, 100, 038102. doi:10.1103/physrevlett.100.038102
Return to citation in text: [1] [2] -
Reich, S.; Schönfeld, P.; Letzel, A.; Kohsakowski, S.; Olbinado, M.; Gökce, B.; Barcikowski, S.; Plech, A. ChemPhysChem 2017, 18, 1084–1090. doi:10.1002/cphc.201601198
Return to citation in text: [1] [2] -
Dolgaev, S. I.; Simakin, A. V.; Voronov, V. V.; Shafeev, G. A.; Bozon-Verduraz, F. Appl. Surf. Sci. 2002, 186, 546–551. doi:10.1016/s0169-4332(01)00634-1
Return to citation in text: [1] -
Menéndez-Manjón, A.; Barcikowski, S.; Shafeev, G. A.; Mazhukin, V. I.; Chichkov, B. N. Laser Part. Beams 2010, 28, 45–52. doi:10.1017/s0263034609990553
Return to citation in text: [1] -
Mostafa, A. M.; Mwafy, E. A. Environ. Nanotechnol. Monit. Manage. 2020, 14, 100382. doi:10.1016/j.enmm.2020.100382
Return to citation in text: [1] [2] -
Abbasi, M.; Dorranian, D. Opt. Spectrosc. 2015, 118, 472–481. doi:10.1134/s0030400x15030029
Return to citation in text: [1] -
Guillén, G. G.; Palma, M. I. M.; Krishnan, B.; Avellaneda, D.; Castillo, G. A.; Roy, T. K. D.; Shaji, S. Mater. Chem. Phys. 2015, 162, 561–570. doi:10.1016/j.matchemphys.2015.06.030
Return to citation in text: [1] [2] -
Tabatabaie, N.; Dorranian, D. Appl. Phys. A: Mater. Sci. Process. 2016, 122, 558. doi:10.1007/s00339-016-0091-y
Return to citation in text: [1] -
Dittrich, S.; Streubel, R.; McDonnell, C.; Huber, H. P.; Barcikowski, S.; Gökce, B. Appl. Phys. A: Mater. Sci. Process. 2019, 125, 432. doi:10.1007/s00339-019-2704-8
Return to citation in text: [1] [2] -
Sun, X.; Yu, J.; Hu, Y.; Cui, D.; Chen, G.; Chu, D.; Duan, J. Appl. Opt. 2019, 58, 9027–9032. doi:10.1364/ao.58.009027
Return to citation in text: [1] -
Intartaglia, R.; Bagga, K.; Brandi, F. Opt. Express 2014, 22, 3117–3127. doi:10.1364/oe.22.003117
Return to citation in text: [1] -
Pyatenko, A.; Shimokawa, K.; Yamaguchi, M.; Nishimura, O.; Suzuki, M. Appl. Phys. A: Mater. Sci. Process. 2004, 79, 803–806. doi:10.1007/s00339-004-2841-5
Return to citation in text: [1] -
Marrapu, H.; Avasarala, R.; Soma, V. R.; Balivada, S. K.; Podagatlapalli, G. K. RSC Adv. 2020, 10, 41217–41228. doi:10.1039/d0ra05942k
Return to citation in text: [1] [2] [3] [4] [5] -
Al-Mamun, S. A.; Nakajima, R.; Ishigaki, T. J. Colloid Interface Sci. 2013, 392, 172–182. doi:10.1016/j.jcis.2012.10.027
Return to citation in text: [1] [2] [3] -
Podagatlapalli, G. K.; Hamad, S.; Mohiddon, M. A.; Rao, S. V. Laser Phys. Lett. 2015, 12, 036003. doi:10.1088/1612-2011/12/3/036003
Return to citation in text: [1] [2] [3] [4] [5] -
Ryabchikov, Y. V.; Kana, A.; Mirza, I. Crystals 2025, 15, 132. doi:10.3390/cryst15020132
Return to citation in text: [1] [2] [3] [4] -
Lim, K. Y.; Quinto-Su, P. A.; Klaseboer, E.; Khoo, B. C.; Venugopalan, V.; Ohl, C.-D. Phys. Rev. E: Stat., Nonlinear, Soft Matter Phys. 2010, 81, 016308. doi:10.1103/physreve.81.016308
Return to citation in text: [1] -
Andrews, D. L. Structured Light and Its Applications: An Introduction to Phase-Structured Beams and Nanoscale Optical Forces; Academic Press, 2008. doi:10.1016/b978-0-12-374027-4.x0001-1
Return to citation in text: [1] -
Summers, A. M.; Yu, X.; Wang, X.; Raoul, M.; Nelson, J.; Todd, D.; Zigo, S.; Lei, S.; Trallero-Herrero, C. A. Opt. Express 2017, 25, 1646–1655. doi:10.1364/oe.25.001646
Return to citation in text: [1] [2] -
Zhan, Q. Adv. Opt. Photonics 2009, 1, 1–57. doi:10.1364/aop.1.000001
Return to citation in text: [1] [2] -
Dorn, R.; Quabis, S.; Leuchs, G. Phys. Rev. Lett. 2003, 91, 233901. doi:10.1103/physrevlett.91.233901
Return to citation in text: [1] -
Grünewald, J.; Gehringer, F.; Schmöller, M.; Wudy, K. Metals (Basel, Switz.) 2021, 11, 1989. doi:10.3390/met11121989
Return to citation in text: [1] -
Jian, C.; Ye, Z.; Pickel, A. D. J. Appl. Phys. 2022, 132, 245104. doi:10.1063/5.0103369
Return to citation in text: [1] -
Syubaev, S.; Zhizhchenko, A.; Kuchmizhak, A.; Porfirev, A.; Pustovalov, E.; Vitrik, O.; Kulchin, Y.; Khonina, S.; Kudryashov, S. Opt. Express 2017, 25, 10214–10223. doi:10.1364/oe.25.010214
Return to citation in text: [1] [2] [3] -
Toyoda, K.; Miyamoto, K.; Aoki, N.; Morita, R.; Omatsu, T. Nano Lett. 2012, 12, 3645–3649. doi:10.1021/nl301347j
Return to citation in text: [1] -
Nivas, J. J. J.; Shutong, H.; Anoop, K. K.; Rubano, A.; Fittipaldi, R.; Vecchione, A.; Paparo, D.; Marrucci, L.; Bruzzese, R.; Amoruso, S. Opt. Lett. 2015, 40, 4611–4614. doi:10.1364/ol.40.004611
Return to citation in text: [1] -
Tang, Y.; Perrie, W.; Rico Sierra, D.; Li, Q.; Liu, D.; Edwardson, S. P.; Dearden, G. Micromachines 2021, 12, 376. doi:10.3390/mi12040376
Return to citation in text: [1] [2] [3] -
Veysset, D.; Gutiérrez-Hernández, U.; Dresselhaus-Cooper, L.; De Colle, F.; Kooi, S.; Nelson, K. A.; Quinto-Su, P. A.; Pezeril, T. Phys. Rev. E 2018, 97, 053112. doi:10.1103/physreve.97.053112
Return to citation in text: [1] [2] -
Liang, X.-X.; Linz, N.; Freidank, S.; Paltauf, G.; Vogel, A. J. Fluid Mech. 2022, 940, A5. doi:10.1017/jfm.2022.202
Return to citation in text: [1] -
Wagener, P.; Ibrahimkutty, S.; Menzel, A.; Plech, A.; Barcikowski, S. Phys. Chem. Chem. Phys. 2013, 15, 3068–3074. doi:10.1039/c2cp42592k
Return to citation in text: [1] -
Altakroury, A. R.; Gatsa, O.; Riahi, F.; Fu, Z.; Flimelová, M.; Samokhvalov, A.; Barcikowski, S.; Doñate-Buendía, C.; Bulgakov, A. V.; Gökce, B. Beilstein J. Nanotechnol. 2025, 16, 407–417. doi:10.3762/bjnano.16.31
Return to citation in text: [1] [2] [3] [4] -
Zheng, X.; Ando, K.; Wang, X.; Sakka, T.; Nakajima, T. J. Phys. D: Appl. Phys. 2022, 55, 275106. doi:10.1088/1361-6463/ac6400
Return to citation in text: [1] [2] [3] -
Kucherik, A. O.; Ryabchikov, Y. V.; Kutrovskaya, S. V.; Al‐Kattan, A.; Arakelyan, S. M.; Itina, T. E.; Kabashin, A. V. ChemPhysChem 2017, 18, 1185–1191. doi:10.1002/cphc.201601419
Return to citation in text: [1] -
Arakelyan, S. M.; Veiko, V. P.; Kutrovskaya, S. V.; Kucherik, A. O.; Osipov, A. V.; Vartanyan, T. A.; Itina, T. E. J. Nanopart. Res. 2016, 18, 155. doi:10.1007/s11051-016-3468-0
Return to citation in text: [1] -
Jaeggi, B.; Neuenschwander, B.; Schmid, M.; Muralt, M.; Zuercher, J.; Hunziker, U. Phys. Procedia 2011, 12, 164–171. doi:10.1016/j.phpro.2011.03.118
Return to citation in text: [1] [2] -
Le Harzic, R.; Breitling, D.; Weikert, M.; Sommer, S.; Föhl, C.; Valette, S.; Donnet, C.; Audouard, E.; Dausinger, F. Appl. Surf. Sci. 2005, 249, 322–331. doi:10.1016/j.apsusc.2004.12.027
Return to citation in text: [1] -
Tyurnina, A. E.; Shur, V. Y.; Kozin, R. V.; Kuznetsov, D. K.; Mingaliev, E. A. Proc. SPIE 2013, 9065, 90650D. doi:10.1117/12.2053557
Return to citation in text: [1] -
Vogel, A.; Nahen, K.; Theisen, D.; Birngruber, R.; Thomas, R. J.; Rockwell, B. A. Appl. Opt. 1999, 38, 3636–3643. doi:10.1364/ao.38.003636
Return to citation in text: [1] -
Schubert, H. K.; Engels, D. J.; Meijer, R. A.; Liu, B.; Versolato, O. O. Phys. Rev. Res. 2024, 6, 023182. doi:10.1103/physrevresearch.6.023182
Return to citation in text: [1] -
Miguez, M. L.; De Souza, T. G. B.; Barbano, E. C.; Zilio, S. C.; Misoguti, L. Opt. Express 2017, 25, 3553–3565. doi:10.1364/oe.25.003553
Return to citation in text: [1] -
Smirnov, N. A.; Kudryashov, S. I.; Rudenko, А. А.; Nastulyavichus, A. A.; Ionin, A. A. Laser Phys. Lett. 2022, 19, 026001. doi:10.1088/1612-202x/ac46ab
Return to citation in text: [1] [2] [3] -
Babenko, V. A.; Sychev, A. A.; Bunkin, N. F. Appl. Sci. 2023, 13, 2183. doi:10.3390/app13042183
Return to citation in text: [1] -
Nastulyavichus, A.; Smirnov, N.; Kudryashov, S. Chin. Phys. B 2022, 31, 077803. doi:10.1088/1674-1056/ac5602
Return to citation in text: [1] [2] [3] [4] [5] -
Balu, M.; Lentsch, G.; Korta, D. Z.; König, K.; Kelly, K. M.; Tromberg, B. J.; Zachary, C. B. Lasers Surg. Med. 2017, 49, 555–562. doi:10.1002/lsm.22655
Return to citation in text: [1] -
Vogel, A.; Nahen, K.; Theisen, D.; Noack, J. IEEE J. Sel. Top. Quantum Electron. 1996, 2, 847–860. doi:10.1109/2944.577307
Return to citation in text: [1] -
Dittrich, S.; Spellauge, M.; Barcikowski, S.; Huber, H. P.; Gökce, B. Opto-Electron. Adv. 2022, 5, 210053. doi:10.29026/oea.2022.210053
Return to citation in text: [1] [2] -
Semerok, A.; Sallé, B.; Wagner, J.-F.; Petite, G. Femtosecond, picosecond, and nanosecond laser microablation: Laser plasma and crater investigation. In Laser and Particle Beams; Batani, K., Ed.; Cambridge University Press, 2002; Vol. 20, pp 67–72. doi:10.1017/s0263034602201093
Return to citation in text: [1] [2] -
Hamad, A. H. Effects of Different Laser Pulse Regimes (Nanosecond, Picosecond and Femtosecond) on the Ablation of Materials for Production of Nanoparticles in Liquid Solution. In High Energy and Short Pulse Lasers; Viskup, R., Ed.; IntechOpen: Rijeka, Croatia, 2016. doi:10.5772/63892
Return to citation in text: [1] [2] -
Chichkov, B. N.; Momma, C.; Nolte, S.; von Alvensleben, F.; Tünnermann, A. Appl. Phys. A: Mater. Sci. Process. 1996, 63, 109–115. doi:10.1007/bf01567637
Return to citation in text: [1] [2] -
Mannion, P. T.; Magee, J.; Coyne, E.; O’Connor, G. M.; Glynn, T. J. Appl. Surf. Sci. 2004, 233, 275–287. doi:10.1016/j.apsusc.2004.03.229
Return to citation in text: [1] [2] -
Nolte, S.; Momma, C.; Jacobs, H.; Tünnermann, A.; Chichkov, B. N.; Wellegehausen, B.; Welling, H. J. Opt. Soc. Am. B 1997, 14, 2716–2722. doi:10.1364/josab.14.002716
Return to citation in text: [1] [2] -
Yao, J.; Qi, D.; Liang, H.; He, Y.; Yao, Y.; Jia, T.; Yang, Y.; Sun, Z.; Zhang, S. Ultrafast Sci. 2022, 2022, 9754131. doi:10.34133/2022/9754131
Return to citation in text: [1] [2] -
Shaheen, M. E.; Gagnon, J. E.; Fryer, B. J. Laser Phys. 2014, 24, 106102. doi:10.1088/1054-660x/24/10/106102
Return to citation in text: [1] -
Hodak, J.; Martini, I.; Hartland, G. V. Chem. Phys. Lett. 1998, 284, 135–141. doi:10.1016/s0009-2614(97)01369-9
Return to citation in text: [1] -
Pyatenko, A.; Wang, H.; Koshizaki, N.; Tsuji, T. Laser Photonics Rev. 2013, 7, 596–604. doi:10.1002/lpor.201300013
Return to citation in text: [1] -
Morshedian, N. Plasma Sci. Technol. (Bristol, U. K.) 2017, 19, 095501. doi:10.1088/2058-6272/aa74c5
Return to citation in text: [1] -
Takamizawa, A.; Kajimoto, S.; Hobley, J.; Hatanaka, K.; Ohta, K.; Fukumura, H. Phys. Chem. Chem. Phys. 2003, 5, 888–895. doi:10.1039/b210609d
Return to citation in text: [1] -
Kudryashov, S. I.; Allen, S. D. J. Appl. Phys. 2006, 100, 104908. doi:10.1063/1.2372317
Return to citation in text: [1] -
Nikolov, A. S.; Balchev, I. I.; Nedyalkov, N. N.; Kostadinov, I. K.; Karashanova, D. B.; Atanasova, G. B. Appl. Phys. A: Mater. Sci. Process. 2017, 123, 719. doi:10.1007/s00339-017-1328-0
Return to citation in text: [1] -
Biswas, J.; Singh, S. S.; Samuel, G. L. Mater. Today: Proc. 2024, in press. doi:10.1016/j.matpr.2024.04.032
Return to citation in text: [1] -
Tomko, J.; Naddeo, J. J.; Jimenez, R.; Tan, Y.; Steiner, M.; Fitz-Gerald, J. M.; Bubb, D. M.; O'Malley, S. M. Phys. Chem. Chem. Phys. 2015, 17, 16327–16333. doi:10.1039/c5cp01965f
Return to citation in text: [1] -
Kohsakowski, S.; Gökce, B.; Tanabe, R.; Wagener, P.; Plech, A.; Ito, Y.; Barcikowski, S. Phys. Chem. Chem. Phys. 2016, 18, 16585–16593. doi:10.1039/c6cp01232a
Return to citation in text: [1] -
Spellauge, M.; Tack, M.; Streubel, R.; Miertz, M.; Exner, K. S.; Reichenberger, S.; Barcikowski, S.; Huber, H. P.; Ziefuss, A. R. Small 2023, 19, 2206485. doi:10.1002/smll.202206485
Return to citation in text: [1] [2] -
Winter, J.; Rapp, S.; Spellauge, M.; Eulenkamp, C.; Schmidt, M.; Huber, H. P. Appl. Surf. Sci. 2020, 511, 145514. doi:10.1016/j.apsusc.2020.145514
Return to citation in text: [1] -
Spellauge, M.; Winter, J.; Rapp, S.; McDonnell, C.; Sotier, F.; Schmidt, M.; Huber, H. P. Appl. Surf. Sci. 2021, 545, 148930. doi:10.1016/j.apsusc.2021.148930
Return to citation in text: [1] -
Shih, C.-Y.; Shugaev, M. V.; Wu, C.; Zhigilei, L. V. J. Phys. Chem. C 2017, 121, 16549–16567. doi:10.1021/acs.jpcc.7b02301
Return to citation in text: [1] [2] [3] -
Inogamov, N. A.; Zhakhovskii, V. V.; Khokhlov, V. A. J. Exp. Theor. Phys. 2018, 127, 79–106. doi:10.1134/s1063776118070075
Return to citation in text: [1] -
Kanitz, A.; Förster, D. J.; Hoppius, J. S.; Weber, R.; Ostendorf, A.; Gurevich, E. L. Appl. Surf. Sci. 2019, 475, 204–210. doi:10.1016/j.apsusc.2018.12.184
Return to citation in text: [1] [2] [3] -
Lizunov, S. A.; Bulgakov, A. V.; Campbell, E. E. B.; Bulgakova, N. M. Appl. Phys. A: Mater. Sci. Process. 2022, 128, 602. doi:10.1007/s00339-022-05733-4
Return to citation in text: [1] -
Starinskiy, S. V.; Shukhov, Y. G.; Bulgakov, A. V. Appl. Surf. Sci. 2017, 396, 1765–1774. doi:10.1016/j.apsusc.2016.11.221
Return to citation in text: [1] -
Wang, Q.; Luo, S.; Chen, Z.; Qi, H.; Deng, J.; Hu, Z. Opt. Laser Technol. 2016, 80, 116–124. doi:10.1016/j.optlastec.2016.01.001
Return to citation in text: [1] -
Gedvilas, M.; Mikšys, J.; Berzinš, J.; Stankevič, V.; Račiukaitis, G. Sci. Rep. 2017, 7, 5218. doi:10.1038/s41598-017-05548-x
Return to citation in text: [1] -
Guillermin, M.; Liebig, C.; Garrelie, F.; Stoian, R.; Loir, A.-S.; Audouard, E. Appl. Surf. Sci. 2009, 255, 5163–5166. doi:10.1016/j.apsusc.2008.07.207
Return to citation in text: [1] -
Zhu, D.; Yan, J.; Xie, J. Opt. Lett. 2020, 45, 1758–1761. doi:10.1364/ol.384326
Return to citation in text: [1] -
Li, B.; Jiang, L.; Li, X.; Cheng, Z.; Ran, P.; Zuo, P.; Qu, L.; Zhang, J.; Lu, Y. Adv. Funct. Mater. 2019, 29, 1806229. doi:10.1002/adfm.201806229
Return to citation in text: [1] -
Li, X.; Zhang, G.; Jiang, L.; Shi, X.; Zhang, K.; Rong, W.; Duan, J.; Lu, Y. Opt. Express 2015, 23, 4226–4232. doi:10.1364/oe.23.004226
Return to citation in text: [1] [2] [3] -
Doñate-Buendia, C.; Spellauge, M.; Streubel, R.; Riahi, F.; Barcikowski, S.; Huber, H. P.; Gökce, B. J. Phys. D: Appl. Phys. 2023, 56, 104001. doi:10.1088/1361-6463/acbaaa
Return to citation in text: [1] [2] [3] [4] [5] [6] -
Dell'Aglio, M.; Gaudiuso, R.; ElRashedy, R.; De Pascale, O.; Palazzo, G.; De Giacomo, A. Phys. Chem. Chem. Phys. 2013, 15, 20868. doi:10.1039/c3cp54194k
Return to citation in text: [1] [2] [3] [4] [5] -
Riahi, F.; Bußmann, A.; Doñate-Buendia, C.; Adami, S.; Adams, N. A.; Barcikowski, S.; Gökce, B. Photonics Res. 2023, 11, 2054–2071. doi:10.1364/prj.498204
Return to citation in text: [1] [2] -
Riahi, F.; Doñate-Buendia, C.; Barcikowski, S.; Gökce, B. Part. Part. Syst. Charact. 2024, 41, 2300145. doi:10.1002/ppsc.202300145
Return to citation in text: [1] [2] -
Nastulyavichus, A.; Kudryashov, S.; Ionin, A.; Gonchukov, S. Laser Phys. Lett. 2022, 19, 045603. doi:10.1088/1612-202x/ac581a
Return to citation in text: [1] [2] [3] [4] [5] -
Kress, B.; Hejmadi, V. Proc. SPIE 2010, 7716, 77161J. doi:10.1117/12.859086
Return to citation in text: [1] -
Silvennoinen, M.; Kaakkunen, J.; Paivasaari, K.; Vahimaa, P. Opt. Express 2014, 22, 2603–2608. doi:10.1364/oe.22.002603
Return to citation in text: [1] -
Indrišiūnas, S.; Voisiat, B.; Gedvilas, M.; Račiukaitis, G. J. Laser Appl. 2017, 29, 011501. doi:10.2351/1.4976679
Return to citation in text: [1] -
Hauschwitz, P.; Martan, J.; Bičišťová, R.; Beltrami, C.; Moskal, D.; Brodsky, A.; Kaplan, N.; Mužík, J.; Štepánková, D.; Brajer, J.; Rostohar, D.; Kopeček, J.; Prokešová, L.; Honner, M.; Lang, V.; Smrž, M.; Mocek, T. Sci. Rep. 2021, 11, 22944. doi:10.1038/s41598-021-02290-3
Return to citation in text: [1] -
Vandenhouten, R.; Hermerschmidt, A.; Fiebelkorn, R. Design and quality metrics of point patterns for coded structured light illumination with diffractive optical elements in optical 3D sensors. In SPIE Proceedings; Kress, B. C.; Osten, W.; Urbach, H. P., Eds.; SPIE, 2017; Vol. 10335, pp 1033518 ff. doi:10.1117/12.2270248
Return to citation in text: [1] -
Satya Bharati, M. S.; Chandu, B.; Rao, S. V. RSC Adv. 2019, 9, 1517–1525. doi:10.1039/c8ra08462a
Return to citation in text: [1] -
Ma, J.; Wong, K. S.; Li, S.; Chen, Z.; Zhou, J.; Zhong, Y. J. Opt. Soc. Korea 2015, 19, 63–68. doi:10.3807/josk.2015.19.1.063
Return to citation in text: [1] -
Mínguez-Vega, G.; Lancis, J.; Caraquitena, J.; Torres-Company, V.; Andrés, P. Opt. Lett. 2006, 31, 2631–2633. doi:10.1364/ol.31.002631
Return to citation in text: [1] -
Mendoza-Yero, O.; Mínguez-Vega, G.; Lancis, J. Opt. Lett. 2014, 39, 1740–1743. doi:10.1364/ol.39.001740
Return to citation in text: [1] -
Cao, J.; Yang, Q.; Miao, Y.; Li, Y.; Qiu, S.; Zhu, Z.; Wang, P.; Chen, Z. Light: Sci. Appl. 2022, 11, 108. doi:10.1038/s41377-022-00795-8
Return to citation in text: [1] -
Han, C.; Wang, R.; Pan, A.; Wang, W.; Huang, H.; Zhang, J.; Niu, C. Opt. Laser Technol. 2019, 109, 27–32. doi:10.1016/j.optlastec.2018.07.058
Return to citation in text: [1] -
Tymoczko, A.; Kamp, M.; Rehbock, C.; Kienle, L.; Cattaruzza, E.; Barcikowski, S.; Amendola, V. Nanoscale Horiz. 2019, 4, 1326–1332. doi:10.1039/c9nh00332k
Return to citation in text: [1] -
Nazemi, M.; Panikkanvalappil, S. R.; Liao, C.-K.; Mahmoud, M. A.; El-Sayed, M. A. ACS Nano 2021, 15, 10241–10252. doi:10.1021/acsnano.1c02347
Return to citation in text: [1] -
González-Rubio, G.; Díaz-Núñez, P.; Rivera, A.; Prada, A.; Tardajos, G.; González-Izquierdo, J.; Bañares, L.; Llombart, P.; Macdowell, L. G.; Alcolea Palafox, M.; Liz-Marzán, L. M.; Peña-Rodríguez, O.; Guerrero-Martínez, A. Science 2017, 358, 640–644. doi:10.1126/science.aan8478
Return to citation in text: [1] -
Zhang, K.; Ivanov, D. S.; Ganeev, R. A.; Boltaev, G. S.; Krishnendu, P. S.; Singh, S. C.; Garcia, M. E.; Zavestovskaya, I. N.; Guo, C. Nanomaterials 2019, 9, 767. doi:10.3390/nano9050767
Return to citation in text: [1] -
Curcio, M.; De Bonis, A.; Santagata, A.; Galasso, A.; Teghil, R. Opt. Laser Technol. 2021, 138, 106916. doi:10.1016/j.optlastec.2021.106916
Return to citation in text: [1] -
Revignas, D.; Amendola, V. J. Chem. Educ. 2022, 99, 2112–2120. doi:10.1021/acs.jchemed.1c01288
Return to citation in text: [1]
| 107. | Mínguez-Vega, G.; Mendoza-Yero, O.; Lancis, J.; Gisbert, R.; Andrés, P. Opt. Express 2008, 16, 16993–16998. doi:10.1364/oe.16.016993 |
| 108. | Leaird, D. E.; Weiner, A. M. IEEE J. Quantum Electron. 2001, 37, 494–504. doi:10.1109/3.914397 |
| 109. | Kerse, C.; Kalaycıoğlu, H.; Elahi, P.; Çetin, B.; Kesim, D. K.; Akçaalan, Ö.; Yavaş, S.; Aşık, M. D.; Öktem, B.; Hoogland, H.; Holzwarth, R.; Ilday, F. Ö. Nature 2016, 537, 84–88. doi:10.1038/nature18619 |
| 105. | Förster, D. J.; Jäggi, B.; Michalowski, A.; Neuenschwander, B. Materials 2021, 14, 3331. doi:10.3390/ma14123331 |
| 106. | Weiner, A. M. Rev. Sci. Instrum. 2000, 71, 1929–1960. doi:10.1063/1.1150614 |
| 177. | Mannion, P. T.; Magee, J.; Coyne, E.; O’Connor, G. M.; Glynn, T. J. Appl. Surf. Sci. 2004, 233, 275–287. doi:10.1016/j.apsusc.2004.03.229 |
| 186. | Nikolov, A. S.; Balchev, I. I.; Nedyalkov, N. N.; Kostadinov, I. K.; Karashanova, D. B.; Atanasova, G. B. Appl. Phys. A: Mater. Sci. Process. 2017, 123, 719. doi:10.1007/s00339-017-1328-0 |
| 104. | Martínez-León, L.; Clemente, P.; Tajahuerce, E.; Mínguez-Vega, G.; Mendoza-Yero, O.; Fernández-Alonso, M.; Lancis, J.; Climent, V.; Andrés, P. Appl. Phys. Lett. 2009, 94, 011104. doi:10.1063/1.3063047 |
| 54. | Waag, F.; Streubel, R.; Gökce, B.; Barcikowski, S. Appl. Nanosci. 2021, 11, 1303–1312. doi:10.1007/s13204-021-01693-y |
| 184. | Takamizawa, A.; Kajimoto, S.; Hobley, J.; Hatanaka, K.; Ohta, K.; Fukumura, H. Phys. Chem. Chem. Phys. 2003, 5, 888–895. doi:10.1039/b210609d |
| 185. | Kudryashov, S. I.; Allen, S. D. J. Appl. Phys. 2006, 100, 104908. doi:10.1063/1.2372317 |
| 18. | Spellauge, M.; Doñate-Buendía, C.; Barcikowski, S.; Gökce, B.; Huber, H. P. Light: Sci. Appl. 2022, 11, 68. doi:10.1038/s41377-022-00751-6 |
| 112. | Couairon, A.; Mysyrowicz, A. Phys. Rep. 2007, 441, 47–189. doi:10.1016/j.physrep.2006.12.005 |
| 113. | Fibich, G.; Gaeta, A. L. Opt. Lett. 2000, 25, 335–337. doi:10.1364/ol.25.000335 |
| 128. | Vogel, A.; Linz, N.; Freidank, S.; Paltauf, G. Phys. Rev. Lett. 2008, 100, 038102. doi:10.1103/physrevlett.100.038102 |
| 53. | Streubel, R.; Barcikowski, S.; Gökce, B. Opt. Lett. 2016, 41, 1486. doi:10.1364/ol.41.001486 |
| 111. | Ashcom, J. B.; Gattass, R. R.; Schaffer, C. B.; Mazur, E. J. Opt. Soc. Am. B 2006, 23, 2317–2322. doi:10.1364/josab.23.002317 |
| 162. | Jaeggi, B.; Neuenschwander, B.; Schmid, M.; Muralt, M.; Zuercher, J.; Hunziker, U. Phys. Procedia 2011, 12, 164–171. doi:10.1016/j.phpro.2011.03.118 |
| 59. | Menéndez-Manjón, A.; Wagener, P.; Barcikowski, S. J. Phys. Chem. C 2011, 115, 5108–5114. doi:10.1021/jp109370q |
| 112. | Couairon, A.; Mysyrowicz, A. Phys. Rep. 2007, 441, 47–189. doi:10.1016/j.physrep.2006.12.005 |
| 182. | Pyatenko, A.; Wang, H.; Koshizaki, N.; Tsuji, T. Laser Photonics Rev. 2013, 7, 596–604. doi:10.1002/lpor.201300013 |
| 59. | Menéndez-Manjón, A.; Wagener, P.; Barcikowski, S. J. Phys. Chem. C 2011, 115, 5108–5114. doi:10.1021/jp109370q |
| 183. | Morshedian, N. Plasma Sci. Technol. (Bristol, U. K.) 2017, 19, 095501. doi:10.1088/2058-6272/aa74c5 |
| 59. | Menéndez-Manjón, A.; Wagener, P.; Barcikowski, S. J. Phys. Chem. C 2011, 115, 5108–5114. doi:10.1021/jp109370q |
| 60. | Doñate-Buendía, C.; Fernández-Alonso, M.; Lancis, J.; Mínguez-Vega, G. Photonics Res. 2019, 7, 1249. doi:10.1364/prj.7.001249 |
| 110. | Rao, D. C. K.; Mooss, V. S.; Mishra, Y. N.; Hanstorp, D. Sci. Rep. 2022, 12, 18680. doi:10.1038/s41598-022-23194-w |
| 174. | Semerok, A.; Sallé, B.; Wagner, J.-F.; Petite, G. Femtosecond, picosecond, and nanosecond laser microablation: Laser plasma and crater investigation. In Laser and Particle Beams; Batani, K., Ed.; Cambridge University Press, 2002; Vol. 20, pp 67–72. doi:10.1017/s0263034602201093 |
| 187. | Biswas, J.; Singh, S. S.; Samuel, G. L. Mater. Today: Proc. 2024, in press. doi:10.1016/j.matpr.2024.04.032 |
| 120. | Besner, S.; Kabashin, A. V.; Meunier, M. Appl. Phys. Lett. 2006, 89, 233122. doi:10.1063/1.2402944 |
| 121. | Videla, F. A.; Torchia, G. A.; Schinca, D. C.; Scaffardi, L. B.; Moreno, P.; Méndez, C.; Giovanetti, L. J.; Ramallo Lopez, J. M.; Roso, L. J. Appl. Phys. 2010, 107, 114308. doi:10.1063/1.3428432 |
| 122. | Belmouaddine, H.; Shi, M.; Sanche, L.; Houde, D. Phys. Chem. Chem. Phys. 2018, 20, 23403–23413. doi:10.1039/c8cp02054j |
| 110. | Rao, D. C. K.; Mooss, V. S.; Mishra, Y. N.; Hanstorp, D. Sci. Rep. 2022, 12, 18680. doi:10.1038/s41598-022-23194-w |
| 118. | Romero, C.; Borrego-Varillas, R.; Camino, A.; Mínguez-Vega, G.; Mendoza-Yero, O.; Hernández-Toro, J.; Vázquez de Aldana, J. R. Opt. Express 2011, 19, 4977–4984. doi:10.1364/oe.19.004977 |
| 119. | Borrego-Varillas, R.; Perez-Vizcaino, J.; Mendoza-Yero, O.; Minguez-Vega, G.; de Aldana, J. R. V.; Lancis, J. IEEE Photonics Technol. Lett. 2014, 26, 1661–1664. doi:10.1109/lpt.2014.2330362 |
| 114. | Gudkov, S. V.; Astashev, M. E.; Baimler, I. V.; Uvarov, O. V.; Voronov, V. V.; Simakin, A. V. J. Phys. Chem. B 2022, 126, 5678–5688. doi:10.1021/acs.jpcb.2c02089 |
| 115. | Sepehri Javan, N.; Naderali, R.; Hosseinpour Azad, M.; Najafi, M. N. Phys. Plasmas 2018, 25, 082310. doi:10.1063/1.5043277 |
| 116. | Davletshin, Y. R.; Kumaradas, J. C. Beilstein J. Nanotechnol. 2016, 7, 869–880. doi:10.3762/bjnano.7.79 |
| 117. | Wen, X.; Lin, Q.; Niu, G.; Shi, Q.; Duan, Y. Appl. Opt. 2016, 55, 6706–6712. doi:10.1364/ao.55.006706 |
| 193. | Shih, C.-Y.; Shugaev, M. V.; Wu, C.; Zhigilei, L. V. J. Phys. Chem. C 2017, 121, 16549–16567. doi:10.1021/acs.jpcc.7b02301 |
| 194. | Inogamov, N. A.; Zhakhovskii, V. V.; Khokhlov, V. A. J. Exp. Theor. Phys. 2018, 127, 79–106. doi:10.1134/s1063776118070075 |
| 191. | Winter, J.; Rapp, S.; Spellauge, M.; Eulenkamp, C.; Schmidt, M.; Huber, H. P. Appl. Surf. Sci. 2020, 511, 145514. doi:10.1016/j.apsusc.2020.145514 |
| 192. | Spellauge, M.; Winter, J.; Rapp, S.; McDonnell, C.; Sotier, F.; Schmidt, M.; Huber, H. P. Appl. Surf. Sci. 2021, 545, 148930. doi:10.1016/j.apsusc.2021.148930 |
| 190. | Spellauge, M.; Tack, M.; Streubel, R.; Miertz, M.; Exner, K. S.; Reichenberger, S.; Barcikowski, S.; Huber, H. P.; Ziefuss, A. R. Small 2023, 19, 2206485. doi:10.1002/smll.202206485 |
| 18. | Spellauge, M.; Doñate-Buendía, C.; Barcikowski, S.; Gökce, B.; Huber, H. P. Light: Sci. Appl. 2022, 11, 68. doi:10.1038/s41377-022-00751-6 |
| 18. | Spellauge, M.; Doñate-Buendía, C.; Barcikowski, S.; Gökce, B.; Huber, H. P. Light: Sci. Appl. 2022, 11, 68. doi:10.1038/s41377-022-00751-6 |
| 125. | Saraeva, I. N.; Luong, N. V.; Kudryashov, S. I.; Rudenko, A. A.; Khmelnitskiy, R. A.; Shakhmin, A. L.; Kharin, A. Y.; Ionin, A. A.; Zayarny, D. A.; Tung, D. H.; Duong, P. V.; Minh, P. H. J. Photochem. Photobiol., A 2018, 360, 125–131. doi:10.1016/j.jphotochem.2018.04.004 |
| 22. | Lam, J.; Lombard, J.; Dujardin, C.; Ledoux, G.; Merabia, S.; Amans, D. Appl. Phys. Lett. 2016, 108, 074104. doi:10.1063/1.4942389 |
| 126. | Mendoza-Yero, O.; Carbonell-Leal, M.; Doñate-Buendía, C.; Mínguez-Vega, G.; Lancis, J. Opt. Express 2016, 24, 15307–15318. doi:10.1364/oe.24.015307 |
| 53. | Streubel, R.; Barcikowski, S.; Gökce, B. Opt. Lett. 2016, 41, 1486. doi:10.1364/ol.41.001486 |
| 188. | Tomko, J.; Naddeo, J. J.; Jimenez, R.; Tan, Y.; Steiner, M.; Fitz-Gerald, J. M.; Bubb, D. M.; O'Malley, S. M. Phys. Chem. Chem. Phys. 2015, 17, 16327–16333. doi:10.1039/c5cp01965f |
| 121. | Videla, F. A.; Torchia, G. A.; Schinca, D. C.; Scaffardi, L. B.; Moreno, P.; Méndez, C.; Giovanetti, L. J.; Ramallo Lopez, J. M.; Roso, L. J. Appl. Phys. 2010, 107, 114308. doi:10.1063/1.3428432 |
| 10. | Long, J.; Eliceiri, M.; Vangelatos, Z.; Rho, Y.; Wang, L.; Su, Z.; Xie, X.; Zhang, Y.; Grigoropoulos, C. P. Opt. Express 2020, 28, 14300. doi:10.1364/oe.391584 |
| 22. | Lam, J.; Lombard, J.; Dujardin, C.; Ledoux, G.; Merabia, S.; Amans, D. Appl. Phys. Lett. 2016, 108, 074104. doi:10.1063/1.4942389 |
| 129. | Reich, S.; Schönfeld, P.; Letzel, A.; Kohsakowski, S.; Olbinado, M.; Gökce, B.; Barcikowski, S.; Plech, A. ChemPhysChem 2017, 18, 1084–1090. doi:10.1002/cphc.201601198 |
| 123. | Tangeysh, B.; Moore Tibbetts, K.; Odhner, J. H.; Wayland, B. B.; Levis, R. J. J. Phys. Chem. C 2013, 117, 18719–18727. doi:10.1021/jp4056494 |
| 124. | Nakamura, T.; Yamazaki, Y.; Sato, S. KONA Powder Part. J. 2022, 39, 110–118. doi:10.14356/kona.2022002 |
| 189. | Kohsakowski, S.; Gökce, B.; Tanabe, R.; Wagener, P.; Plech, A.; Ito, Y.; Barcikowski, S. Phys. Chem. Chem. Phys. 2016, 18, 16585–16593. doi:10.1039/c6cp01232a |
| 195. | Kanitz, A.; Förster, D. J.; Hoppius, J. S.; Weber, R.; Ostendorf, A.; Gurevich, E. L. Appl. Surf. Sci. 2019, 475, 204–210. doi:10.1016/j.apsusc.2018.12.184 |
| 9. | Kanitz, A.; Kalus, M.-R.; Gurevich, E. L.; Ostendorf, A.; Barcikowski, S.; Amans, D. Plasma Sources Sci. Technol. 2019, 28, 103001. doi:10.1088/1361-6595/ab3dbe |
| 26. | Chen, C.; Zhigilei, L. V. Light: Sci. Appl. 2022, 11, 111. doi:10.1038/s41377-022-00800-0 |
| 82. | Torres‐Mendieta, R.; Mondragón, R.; Puerto‐Belda, V.; Mendoza‐Yero, O.; Lancis, J.; Juliá, J. E.; Mínguez‐Vega, G. ChemPhysChem 2017, 18, 1055–1060. doi:10.1002/cphc.201601083 |
| 83. | Seifikar, F.; Azizian, S.; Eslamipanah, M.; Jaleh, B. Sol. Energy 2022, 246, 74–88. doi:10.1016/j.solener.2022.09.040 |
| 84. | Mondragón, R.; Torres-Mendieta, R.; Meucci, M.; Mínguez-Vega, G.; Enrique Juliá, J.; Sani, E. J. Photonics Energy 2016, 6, 034001. doi:10.1117/1.jpe.6.034001 |
| 85. | Doñate-Buendia, C.; Kürnsteiner, P.; Stern, F.; Wilms, M. B.; Streubel, R.; Kusoglu, I. M.; Tenkamp, J.; Bruder, E.; Pirch, N.; Barcikowski, S.; Durst, K.; Schleifenbaum, J. H.; Walther, F.; Gault, B.; Gökce, B. Acta Mater. 2021, 206, 116566. doi:10.1016/j.actamat.2020.116566 |
| 86. | Logunov, L.; Ulesov, A.; Khramenkova, V.; Liu, X.; Kuchmizhak, A. A.; Vinogradov, A.; Makarov, S. Nanomaterials 2023, 13, 965. doi:10.3390/nano13060965 |
| 87. | Hupfeld, T.; Wegner, A.; Blanke, M.; Doñate‐Buendía, C.; Sharov, V.; Nieskens, S.; Piechotta, M.; Giese, M.; Barcikowski, S.; Gökce, B. Adv. Opt. Mater. 2020, 8, 2000473. doi:10.1002/adom.202000473 |
| 71. | Pastukhov, A. I.; Shipunova, V. O.; Babkova, J. S.; Zelepukin, I. V.; Raab, M.; Schmitt, R.; Al-Kattan, A.; Pliss, A.; Kuzmin, A.; Popov, A. A.; Klimentov, S. M.; Prasad, P. N.; Deyev, S. M.; Kabashin, A. V. ACS Appl. Nano Mater. 2024, 7, 18737–18754. doi:10.1021/acsanm.4c01970 |
| 80. | Lee, S. J.; Lee, H.; Begildayeva, T.; Yu, Y.; Theerthagiri, J.; Kim, Y.; Lee, Y. W.; Han, S. W.; Choi, M. Y. Biosens. Bioelectron. 2022, 197, 113766. doi:10.1016/j.bios.2021.113766 |
| 81. | Molina-Prados, S.; Cros, A.; Martínez-León, L.; Krečmarová, M.; Sánchez-Royo, J. F.; Lancis, J.; Mínguez-Vega, G.; Garro, N. Appl. Surf. Sci. 2025, 713, 164287. doi:10.1016/j.apsusc.2025.164287 |
| 14. | Jendrzej, S.; Gökce, B.; Epple, M.; Barcikowski, S. ChemPhysChem 2017, 18, 1012–1019. doi:10.1002/cphc.201601139 |
| 197. | Starinskiy, S. V.; Shukhov, Y. G.; Bulgakov, A. V. Appl. Surf. Sci. 2017, 396, 1765–1774. doi:10.1016/j.apsusc.2016.11.221 |
| 18. | Spellauge, M.; Doñate-Buendía, C.; Barcikowski, S.; Gökce, B.; Huber, H. P. Light: Sci. Appl. 2022, 11, 68. doi:10.1038/s41377-022-00751-6 |
| 93. | Cortes, F. R. U.; Falomir, E.; Doñate-Buendía, C.; Mínguez-Vega, G. J. Phys. Chem. C 2025, 129, 10378–10414. doi:10.1021/acs.jpcc.5c01343 |
| 53. | Streubel, R.; Barcikowski, S.; Gökce, B. Opt. Lett. 2016, 41, 1486. doi:10.1364/ol.41.001486 |
| 54. | Waag, F.; Streubel, R.; Gökce, B.; Barcikowski, S. Appl. Nanosci. 2021, 11, 1303–1312. doi:10.1007/s13204-021-01693-y |
| 2. | Fazio, E.; Gökce, B.; De Giacomo, A.; Meneghetti, M.; Compagnini, G.; Tommasini, M.; Waag, F.; Lucotti, A.; Zanchi, C. G.; Ossi, P. M.; Dell’Aglio, M.; D’Urso, L.; Condorelli, M.; Scardaci, V.; Biscaglia, F.; Litti, L.; Gobbo, M.; Gallo, G.; Santoro, M.; Trusso, S.; Neri, F. Nanomaterials 2020, 10, 2317. doi:10.3390/nano10112317 |
| 136. | Dittrich, S.; Streubel, R.; McDonnell, C.; Huber, H. P.; Barcikowski, S.; Gökce, B. Appl. Phys. A: Mater. Sci. Process. 2019, 125, 432. doi:10.1007/s00339-019-2704-8 |
| 190. | Spellauge, M.; Tack, M.; Streubel, R.; Miertz, M.; Exner, K. S.; Reichenberger, S.; Barcikowski, S.; Huber, H. P.; Ziefuss, A. R. Small 2023, 19, 2206485. doi:10.1002/smll.202206485 |
| 92. | Choi, J.-G.; Baek, S.; Lee, J.; Park, S. Int. J. Extreme Manuf. 2025, 7, 062001. doi:10.1088/2631-7990/ade836 |
| 195. | Kanitz, A.; Förster, D. J.; Hoppius, J. S.; Weber, R.; Ostendorf, A.; Gurevich, E. L. Appl. Surf. Sci. 2019, 475, 204–210. doi:10.1016/j.apsusc.2018.12.184 |
| 88. | Forsythe, R. C.; Cox, C. P.; Wilsey, M. K.; Müller, A. M. Chem. Rev. 2021, 121, 7568–7637. doi:10.1021/acs.chemrev.0c01069 |
| 89. | Cuadra, J. G.; Molina-Prados, S.; Mínguez-Vega, G.; Estrada, A. C.; Trindade, T.; Oliveira, C.; Seabra, M. P.; Labrincha, J.; Porcar, S.; Cadena, R.; Fraga, D.; Carda, J. B. Appl. Surf. Sci. 2023, 617, 156519. doi:10.1016/j.apsusc.2023.156519 |
| 196. | Lizunov, S. A.; Bulgakov, A. V.; Campbell, E. E. B.; Bulgakova, N. M. Appl. Phys. A: Mater. Sci. Process. 2022, 128, 602. doi:10.1007/s00339-022-05733-4 |
| 90. | Jaleh, B.; Sahraei, A.; Eslamipanah, M.; Seifikar, F.; Azizian, S.; Jalali, S.; Enghardt, S.; Kruppke, B.; Khonakdar, H. A.; Gawande, M. B. Nano-Struct. Nano-Objects 2025, 42, 101471. doi:10.1016/j.nanoso.2025.101471 |
| 195. | Kanitz, A.; Förster, D. J.; Hoppius, J. S.; Weber, R.; Ostendorf, A.; Gurevich, E. L. Appl. Surf. Sci. 2019, 475, 204–210. doi:10.1016/j.apsusc.2018.12.184 |
| 95. | Hendel, T.; Wuithschick, M.; Kettemann, F.; Birnbaum, A.; Rademann, K.; Polte, J. Anal. Chem. (Washington, DC, U. S.) 2015, 87, 5846–5847. doi:10.1021/acs.analchem.5b01602 |
| 73. | Doñate-Buendia, C.; Torres-Mendieta, R.; Pyatenko, A.; Falomir, E.; Fernández-Alonso, M.; Mínguez-Vega, G. ACS Omega 2018, 3, 2735–2742. doi:10.1021/acsomega.7b02082 |
| 94. | Peckus, D.; Mykolaitis, J.; Tamulevičienė, A.; Klimaitė, G.; Khatmi, G.; Juodėnas, M.; Lazauskas, A.; Tamulevičius, S.; Tamulevičius, T. Opt. Mater. (Amsterdam, Neth.) 2025, 161, 116796. doi:10.1016/j.optmat.2025.116796 |
| 5. | Khairani, I. Y.; Mínguez-Vega, G.; Doñate-Buendía, C.; Gökce, B. Phys. Chem. Chem. Phys. 2023, 25, 19380–19408. doi:10.1039/d3cp01214j |
| 102. | Torres-Peiró, S.; González-Ausejo, J.; Mendoza-Yero, O.; Mínguez-Vega, G.; Lancis, J. Appl. Surf. Sci. 2014, 303, 393–398. doi:10.1016/j.apsusc.2014.03.012 |
| 103. | Salter, P. S.; Booth, M. J. Light: Sci. Appl. 2019, 8, 110. doi:10.1038/s41377-019-0215-1 |
| 100. | Wu, R.; Feng, Z.; Zheng, Z.; Liang, R.; Benítez, P.; Miñano, J. C.; Duerr, F. Laser Photonics Rev. 2018, 12, 1700310. doi:10.1002/lpor.201700310 |
| 101. | Torres-Peiró, S.; González-Ausejo, J.; Mendoza-Yero, O.; Mínguez-Vega, G.; Andrés, P.; Lancis, J. Opt. Express 2013, 21, 31830–31836. doi:10.1364/oe.21.031830 |
| 96. | Cui, T. J.; Zhang, S.; Alù, A.; Wegener, M.; Pendry, S. J.; Luo, J.; Lai, Y.; Wang, Z.; Lin, X.; Chen, H.; Chen, P.; Wu, R.-X.; Yin, Y.; Zhao, P.; Chen, H.; Li, Y.; Zhou, Z.; Engheta, N.; Asadchy, V.; Simovski, C.; Tretyakov, S.; Yang, B.; Campbell, S. D.; Hao, Y.; Werner, D. H.; Sun, S.; Zhou, L.; Xu, S.; Sun, H.-B.; Zhou, Z.; Li, Z.; Zheng, G.; Chen, X.; Li, T.; Zhu, S.; Zhou, J.; Zhao, J.; Liu, Z.; Zhang, Y.; Zhang, Q.; Gu, M.; Xiao, S.; Liu, Y.; Zhang, X.; Tang, Y.; Li, G.; Zentgraf, T.; Koshelev, K.; Kivshar, Y.; Li, X.; Badloe, T.; Huang, L.; Rho, J.; Wang, S.; Tsai, D. P.; Bykov, A. Y.; Krasavin, A. V.; Zayats, A. V.; McDonnell, C.; Ellenbogen, T.; Luo, X.; Pu, M.; Garcia-Vidal, F. J.; Liu, L.; Li, Z.; Tang, W.; Ma, H. F.; Zhang, J.; Luo, Y.; Zhang, X.; Zhang, H. C.; He, P. H.; Zhang, L. P.; Wan, X.; Wu, H.; Liu, S.; Jiang, W. X.; Zhang, X. G.; Qiu, C.-W.; Ma, Q.; Liu, C.; Li, L.; Han, J.; Li, L.; Cotrufo, M.; Caloz, C.; Deck-Léger, Z.-L.; Bahrami, A.; Céspedes, O.; Galiffi, E.; Huidobro, P. A.; Cheng, Q.; Dai, J. Y.; Ke, J. C.; Zhang, L.; Galdi, V.; di Renzo, M. J. Phys.: Photonics 2024, 6, 032502. doi:10.1088/2515-7647/ad1a3b |
| 97. | Tsuji, T.; Nakanishi, M.; Mizuki, T.; Ozono, S.; Tsuji, M.; Tsuboi, Y. Sci. Adv. Mater. 2012, 4, 391–400. doi:10.1166/sam.2012.1295 |
| 98. | Mauclair, C.; Najih, B.; Comte, V.; Bourquard, F.; Delaigue, M. Opto-Electron. Sci. 2025, 4, 250002. doi:10.29026/oes.2025.250002 |
| 99. | Forbes, A. Laser Photonics Rev. 2019, 13, 1900140. doi:10.1002/lpor.201900140 |
| 59. | Menéndez-Manjón, A.; Wagener, P.; Barcikowski, S. J. Phys. Chem. C 2011, 115, 5108–5114. doi:10.1021/jp109370q |
| 159. | Zheng, X.; Ando, K.; Wang, X.; Sakka, T.; Nakajima, T. J. Phys. D: Appl. Phys. 2022, 55, 275106. doi:10.1088/1361-6463/ac6400 |
| 158. | Altakroury, A. R.; Gatsa, O.; Riahi, F.; Fu, Z.; Flimelová, M.; Samokhvalov, A.; Barcikowski, S.; Doñate-Buendía, C.; Bulgakov, A. V.; Gökce, B. Beilstein J. Nanotechnol. 2025, 16, 407–417. doi:10.3762/bjnano.16.31 |
| 15. | Crivellaro, S.; Guadagnini, A.; Arboleda, D. M.; Schinca, D.; Amendola, V. Rev. Sci. Instrum. 2019, 90, 033902. doi:10.1063/1.5083811 |
| 158. | Altakroury, A. R.; Gatsa, O.; Riahi, F.; Fu, Z.; Flimelová, M.; Samokhvalov, A.; Barcikowski, S.; Doñate-Buendía, C.; Bulgakov, A. V.; Gökce, B. Beilstein J. Nanotechnol. 2025, 16, 407–417. doi:10.3762/bjnano.16.31 |
| 203. | Li, X.; Zhang, G.; Jiang, L.; Shi, X.; Zhang, K.; Rong, W.; Duan, J.; Lu, Y. Opt. Express 2015, 23, 4226–4232. doi:10.1364/oe.23.004226 |
| 204. | Doñate-Buendia, C.; Spellauge, M.; Streubel, R.; Riahi, F.; Barcikowski, S.; Huber, H. P.; Gökce, B. J. Phys. D: Appl. Phys. 2023, 56, 104001. doi:10.1088/1361-6463/acbaaa |
| 205. | Dell'Aglio, M.; Gaudiuso, R.; ElRashedy, R.; De Pascale, O.; Palazzo, G.; De Giacomo, A. Phys. Chem. Chem. Phys. 2013, 15, 20868. doi:10.1039/c3cp54194k |
| 159. | Zheng, X.; Ando, K.; Wang, X.; Sakka, T.; Nakajima, T. J. Phys. D: Appl. Phys. 2022, 55, 275106. doi:10.1088/1361-6463/ac6400 |
| 5. | Khairani, I. Y.; Mínguez-Vega, G.; Doñate-Buendía, C.; Gökce, B. Phys. Chem. Chem. Phys. 2023, 25, 19380–19408. doi:10.1039/d3cp01214j |
| 159. | Zheng, X.; Ando, K.; Wang, X.; Sakka, T.; Nakajima, T. J. Phys. D: Appl. Phys. 2022, 55, 275106. doi:10.1088/1361-6463/ac6400 |
| 225. | Revignas, D.; Amendola, V. J. Chem. Educ. 2022, 99, 2112–2120. doi:10.1021/acs.jchemed.1c01288 |
| 155. | Veysset, D.; Gutiérrez-Hernández, U.; Dresselhaus-Cooper, L.; De Colle, F.; Kooi, S.; Nelson, K. A.; Quinto-Su, P. A.; Pezeril, T. Phys. Rev. E 2018, 97, 053112. doi:10.1103/physreve.97.053112 |
| 217. | Mendoza-Yero, O.; Mínguez-Vega, G.; Lancis, J. Opt. Lett. 2014, 39, 1740–1743. doi:10.1364/ol.39.001740 |
| 156. | Liang, X.-X.; Linz, N.; Freidank, S.; Paltauf, G.; Vogel, A. J. Fluid Mech. 2022, 940, A5. doi:10.1017/jfm.2022.202 |
| 216. | Mínguez-Vega, G.; Lancis, J.; Caraquitena, J.; Torres-Company, V.; Andrés, P. Opt. Lett. 2006, 31, 2631–2633. doi:10.1364/ol.31.002631 |
| 158. | Altakroury, A. R.; Gatsa, O.; Riahi, F.; Fu, Z.; Flimelová, M.; Samokhvalov, A.; Barcikowski, S.; Doñate-Buendía, C.; Bulgakov, A. V.; Gökce, B. Beilstein J. Nanotechnol. 2025, 16, 407–417. doi:10.3762/bjnano.16.31 |
| 219. | Han, C.; Wang, R.; Pan, A.; Wang, W.; Huang, H.; Zhang, J.; Niu, C. Opt. Laser Technol. 2019, 109, 27–32. doi:10.1016/j.optlastec.2018.07.058 |
| 220. | Tymoczko, A.; Kamp, M.; Rehbock, C.; Kienle, L.; Cattaruzza, E.; Barcikowski, S.; Amendola, V. Nanoscale Horiz. 2019, 4, 1326–1332. doi:10.1039/c9nh00332k |
| 221. | Nazemi, M.; Panikkanvalappil, S. R.; Liao, C.-K.; Mahmoud, M. A.; El-Sayed, M. A. ACS Nano 2021, 15, 10241–10252. doi:10.1021/acsnano.1c02347 |
| 222. | González-Rubio, G.; Díaz-Núñez, P.; Rivera, A.; Prada, A.; Tardajos, G.; González-Izquierdo, J.; Bañares, L.; Llombart, P.; Macdowell, L. G.; Alcolea Palafox, M.; Liz-Marzán, L. M.; Peña-Rodríguez, O.; Guerrero-Martínez, A. Science 2017, 358, 640–644. doi:10.1126/science.aan8478 |
| 223. | Zhang, K.; Ivanov, D. S.; Ganeev, R. A.; Boltaev, G. S.; Krishnendu, P. S.; Singh, S. C.; Garcia, M. E.; Zavestovskaya, I. N.; Guo, C. Nanomaterials 2019, 9, 767. doi:10.3390/nano9050767 |
| 224. | Curcio, M.; De Bonis, A.; Santagata, A.; Galasso, A.; Teghil, R. Opt. Laser Technol. 2021, 138, 106916. doi:10.1016/j.optlastec.2021.106916 |
| 157. | Wagener, P.; Ibrahimkutty, S.; Menzel, A.; Plech, A.; Barcikowski, S. Phys. Chem. Chem. Phys. 2013, 15, 3068–3074. doi:10.1039/c2cp42592k |
| 218. | Cao, J.; Yang, Q.; Miao, Y.; Li, Y.; Qiu, S.; Zhu, Z.; Wang, P.; Chen, Z. Light: Sci. Appl. 2022, 11, 108. doi:10.1038/s41377-022-00795-8 |
| 53. | Streubel, R.; Barcikowski, S.; Gökce, B. Opt. Lett. 2016, 41, 1486. doi:10.1364/ol.41.001486 |
| 54. | Waag, F.; Streubel, R.; Gökce, B.; Barcikowski, S. Appl. Nanosci. 2021, 11, 1303–1312. doi:10.1007/s13204-021-01693-y |
| 165. | Vogel, A.; Nahen, K.; Theisen, D.; Birngruber, R.; Thomas, R. J.; Rockwell, B. A. Appl. Opt. 1999, 38, 3636–3643. doi:10.1364/ao.38.003636 |
| 5. | Khairani, I. Y.; Mínguez-Vega, G.; Doñate-Buendía, C.; Gökce, B. Phys. Chem. Chem. Phys. 2023, 25, 19380–19408. doi:10.1039/d3cp01214j |
| 160. | Kucherik, A. O.; Ryabchikov, Y. V.; Kutrovskaya, S. V.; Al‐Kattan, A.; Arakelyan, S. M.; Itina, T. E.; Kabashin, A. V. ChemPhysChem 2017, 18, 1185–1191. doi:10.1002/cphc.201601419 |
| 161. | Arakelyan, S. M.; Veiko, V. P.; Kutrovskaya, S. V.; Kucherik, A. O.; Osipov, A. V.; Vartanyan, T. A.; Itina, T. E. J. Nanopart. Res. 2016, 18, 155. doi:10.1007/s11051-016-3468-0 |
| 163. | Le Harzic, R.; Breitling, D.; Weikert, M.; Sommer, S.; Föhl, C.; Valette, S.; Donnet, C.; Audouard, E.; Dausinger, F. Appl. Surf. Sci. 2005, 249, 322–331. doi:10.1016/j.apsusc.2004.12.027 |
| 164. | Tyurnina, A. E.; Shur, V. Y.; Kozin, R. V.; Kuznetsov, D. K.; Mingaliev, E. A. Proc. SPIE 2013, 9065, 90650D. doi:10.1117/12.2053557 |
| 162. | Jaeggi, B.; Neuenschwander, B.; Schmid, M.; Muralt, M.; Zuercher, J.; Hunziker, U. Phys. Procedia 2011, 12, 164–171. doi:10.1016/j.phpro.2011.03.118 |
| 158. | Altakroury, A. R.; Gatsa, O.; Riahi, F.; Fu, Z.; Flimelová, M.; Samokhvalov, A.; Barcikowski, S.; Doñate-Buendía, C.; Bulgakov, A. V.; Gökce, B. Beilstein J. Nanotechnol. 2025, 16, 407–417. doi:10.3762/bjnano.16.31 |
| 142. | Podagatlapalli, G. K.; Hamad, S.; Mohiddon, M. A.; Rao, S. V. Laser Phys. Lett. 2015, 12, 036003. doi:10.1088/1612-2011/12/3/036003 |
| 5. | Khairani, I. Y.; Mínguez-Vega, G.; Doñate-Buendía, C.; Gökce, B. Phys. Chem. Chem. Phys. 2023, 25, 19380–19408. doi:10.1039/d3cp01214j |
| 28. | Rehbock, C.; Jakobi, J.; Gamrad, L.; van der Meer, S.; Tiedemann, D.; Taylor, U.; Kues, W.; Rath, D.; Barcikowski, S. Beilstein J. Nanotechnol. 2014, 5, 1523–1541. doi:10.3762/bjnano.5.165 |
| 140. | Marrapu, H.; Avasarala, R.; Soma, V. R.; Balivada, S. K.; Podagatlapalli, G. K. RSC Adv. 2020, 10, 41217–41228. doi:10.1039/d0ra05942k |
| 143. | Ryabchikov, Y. V.; Kana, A.; Mirza, I. Crystals 2025, 15, 132. doi:10.3390/cryst15020132 |
| 133. | Abbasi, M.; Dorranian, D. Opt. Spectrosc. 2015, 118, 472–481. doi:10.1134/s0030400x15030029 |
| 134. | Guillén, G. G.; Palma, M. I. M.; Krishnan, B.; Avellaneda, D.; Castillo, G. A.; Roy, T. K. D.; Shaji, S. Mater. Chem. Phys. 2015, 162, 561–570. doi:10.1016/j.matchemphys.2015.06.030 |
| 135. | Tabatabaie, N.; Dorranian, D. Appl. Phys. A: Mater. Sci. Process. 2016, 122, 558. doi:10.1007/s00339-016-0091-y |
| 129. | Reich, S.; Schönfeld, P.; Letzel, A.; Kohsakowski, S.; Olbinado, M.; Gökce, B.; Barcikowski, S.; Plech, A. ChemPhysChem 2017, 18, 1084–1090. doi:10.1002/cphc.201601198 |
| 130. | Dolgaev, S. I.; Simakin, A. V.; Voronov, V. V.; Shafeev, G. A.; Bozon-Verduraz, F. Appl. Surf. Sci. 2002, 186, 546–551. doi:10.1016/s0169-4332(01)00634-1 |
| 131. | Menéndez-Manjón, A.; Barcikowski, S.; Shafeev, G. A.; Mazhukin, V. I.; Chichkov, B. N. Laser Part. Beams 2010, 28, 45–52. doi:10.1017/s0263034609990553 |
| 132. | Mostafa, A. M.; Mwafy, E. A. Environ. Nanotechnol. Monit. Manage. 2020, 14, 100382. doi:10.1016/j.enmm.2020.100382 |
| 127. | Liu, W.; Kosareva, O.; Golubtsov, I. S.; Iwasaki, A.; Becker, A.; Kandidov, V. P.; Chin, S. L. Appl. Phys. B: Lasers Opt. 2003, 76, 215–229. doi:10.1007/s00340-002-1087-1 |
| 173. | Dittrich, S.; Spellauge, M.; Barcikowski, S.; Huber, H. P.; Gökce, B. Opto-Electron. Adv. 2022, 5, 210053. doi:10.29026/oea.2022.210053 |
| 128. | Vogel, A.; Linz, N.; Freidank, S.; Paltauf, G. Phys. Rev. Lett. 2008, 100, 038102. doi:10.1103/physrevlett.100.038102 |
| 172. | Vogel, A.; Nahen, K.; Theisen, D.; Noack, J. IEEE J. Sel. Top. Quantum Electron. 1996, 2, 847–860. doi:10.1109/2944.577307 |
| 1. | Zhang, D.; Gökce, B.; Barcikowski, S. Chem. Rev. 2017, 117, 3990–4103. doi:10.1021/acs.chemrev.6b00468 |
| 175. | Hamad, A. H. Effects of Different Laser Pulse Regimes (Nanosecond, Picosecond and Femtosecond) on the Ablation of Materials for Production of Nanoparticles in Liquid Solution. In High Energy and Short Pulse Lasers; Viskup, R., Ed.; IntechOpen: Rijeka, Croatia, 2016. doi:10.5772/63892 |
| 110. | Rao, D. C. K.; Mooss, V. S.; Mishra, Y. N.; Hanstorp, D. Sci. Rep. 2022, 12, 18680. doi:10.1038/s41598-022-23194-w |
| 174. | Semerok, A.; Sallé, B.; Wagner, J.-F.; Petite, G. Femtosecond, picosecond, and nanosecond laser microablation: Laser plasma and crater investigation. In Laser and Particle Beams; Batani, K., Ed.; Cambridge University Press, 2002; Vol. 20, pp 67–72. doi:10.1017/s0263034602201093 |
| 167. | Miguez, M. L.; De Souza, T. G. B.; Barbano, E. C.; Zilio, S. C.; Misoguti, L. Opt. Express 2017, 25, 3553–3565. doi:10.1364/oe.25.003553 |
| 5. | Khairani, I. Y.; Mínguez-Vega, G.; Doñate-Buendía, C.; Gökce, B. Phys. Chem. Chem. Phys. 2023, 25, 19380–19408. doi:10.1039/d3cp01214j |
| 171. | Balu, M.; Lentsch, G.; Korta, D. Z.; König, K.; Kelly, K. M.; Tromberg, B. J.; Zachary, C. B. Lasers Surg. Med. 2017, 49, 555–562. doi:10.1002/lsm.22655 |
| 168. | Smirnov, N. A.; Kudryashov, S. I.; Rudenko, А. А.; Nastulyavichus, A. A.; Ionin, A. A. Laser Phys. Lett. 2022, 19, 026001. doi:10.1088/1612-202x/ac46ab |
| 169. | Babenko, V. A.; Sychev, A. A.; Bunkin, N. F. Appl. Sci. 2023, 13, 2183. doi:10.3390/app13042183 |
| 170. | Nastulyavichus, A.; Smirnov, N.; Kudryashov, S. Chin. Phys. B 2022, 31, 077803. doi:10.1088/1674-1056/ac5602 |
| 137. | Sun, X.; Yu, J.; Hu, Y.; Cui, D.; Chen, G.; Chu, D.; Duan, J. Appl. Opt. 2019, 58, 9027–9032. doi:10.1364/ao.58.009027 |
| 53. | Streubel, R.; Barcikowski, S.; Gökce, B. Opt. Lett. 2016, 41, 1486. doi:10.1364/ol.41.001486 |
| 59. | Menéndez-Manjón, A.; Wagener, P.; Barcikowski, S. J. Phys. Chem. C 2011, 115, 5108–5114. doi:10.1021/jp109370q |
| 136. | Dittrich, S.; Streubel, R.; McDonnell, C.; Huber, H. P.; Barcikowski, S.; Gökce, B. Appl. Phys. A: Mater. Sci. Process. 2019, 125, 432. doi:10.1007/s00339-019-2704-8 |
| 166. | Schubert, H. K.; Engels, D. J.; Meijer, R. A.; Liu, B.; Versolato, O. O. Phys. Rev. Res. 2024, 6, 023182. doi:10.1103/physrevresearch.6.023182 |
| 176. | Chichkov, B. N.; Momma, C.; Nolte, S.; von Alvensleben, F.; Tünnermann, A. Appl. Phys. A: Mater. Sci. Process. 1996, 63, 109–115. doi:10.1007/bf01567637 |
| 181. | Hodak, J.; Martini, I.; Hartland, G. V. Chem. Phys. Lett. 1998, 284, 135–141. doi:10.1016/s0009-2614(97)01369-9 |
| 178. | Nolte, S.; Momma, C.; Jacobs, H.; Tünnermann, A.; Chichkov, B. N.; Wellegehausen, B.; Welling, H. J. Opt. Soc. Am. B 1997, 14, 2716–2722. doi:10.1364/josab.14.002716 |
| 180. | Shaheen, M. E.; Gagnon, J. E.; Fryer, B. J. Laser Phys. 2014, 24, 106102. doi:10.1088/1054-660x/24/10/106102 |
| 179. | Yao, J.; Qi, D.; Liang, H.; He, Y.; Yao, Y.; Jia, T.; Yang, Y.; Sun, Z.; Zhang, S. Ultrafast Sci. 2022, 2022, 9754131. doi:10.34133/2022/9754131 |
| 20. | Kanitz, A.; Hoppius, J. S.; Fiebrandt, M.; Awakowicz, P.; Esen, C.; Ostendorf, A.; Gurevich, E. L. Appl. Phys. A: Mater. Sci. Process. 2017, 123, 674. doi:10.1007/s00339-017-1280-z |
| 179. | Yao, J.; Qi, D.; Liang, H.; He, Y.; Yao, Y.; Jia, T.; Yang, Y.; Sun, Z.; Zhang, S. Ultrafast Sci. 2022, 2022, 9754131. doi:10.34133/2022/9754131 |
| 175. | Hamad, A. H. Effects of Different Laser Pulse Regimes (Nanosecond, Picosecond and Femtosecond) on the Ablation of Materials for Production of Nanoparticles in Liquid Solution. In High Energy and Short Pulse Lasers; Viskup, R., Ed.; IntechOpen: Rijeka, Croatia, 2016. doi:10.5772/63892 |
| 176. | Chichkov, B. N.; Momma, C.; Nolte, S.; von Alvensleben, F.; Tünnermann, A. Appl. Phys. A: Mater. Sci. Process. 1996, 63, 109–115. doi:10.1007/bf01567637 |
| 178. | Nolte, S.; Momma, C.; Jacobs, H.; Tünnermann, A.; Chichkov, B. N.; Wellegehausen, B.; Welling, H. J. Opt. Soc. Am. B 1997, 14, 2716–2722. doi:10.1364/josab.14.002716 |
| 177. | Mannion, P. T.; Magee, J.; Coyne, E.; O’Connor, G. M.; Glynn, T. J. Appl. Surf. Sci. 2004, 233, 275–287. doi:10.1016/j.apsusc.2004.03.229 |
| 205. | Dell'Aglio, M.; Gaudiuso, R.; ElRashedy, R.; De Pascale, O.; Palazzo, G.; De Giacomo, A. Phys. Chem. Chem. Phys. 2013, 15, 20868. doi:10.1039/c3cp54194k |
| 203. | Li, X.; Zhang, G.; Jiang, L.; Shi, X.; Zhang, K.; Rong, W.; Duan, J.; Lu, Y. Opt. Express 2015, 23, 4226–4232. doi:10.1364/oe.23.004226 |
| 207. | Riahi, F.; Doñate-Buendia, C.; Barcikowski, S.; Gökce, B. Part. Part. Syst. Charact. 2024, 41, 2300145. doi:10.1002/ppsc.202300145 |
| 207. | Riahi, F.; Doñate-Buendia, C.; Barcikowski, S.; Gökce, B. Part. Part. Syst. Charact. 2024, 41, 2300145. doi:10.1002/ppsc.202300145 |
| 170. | Nastulyavichus, A.; Smirnov, N.; Kudryashov, S. Chin. Phys. B 2022, 31, 077803. doi:10.1088/1674-1056/ac5602 |
| 206. | Riahi, F.; Bußmann, A.; Doñate-Buendia, C.; Adami, S.; Adams, N. A.; Barcikowski, S.; Gökce, B. Photonics Res. 2023, 11, 2054–2071. doi:10.1364/prj.498204 |
| 204. | Doñate-Buendia, C.; Spellauge, M.; Streubel, R.; Riahi, F.; Barcikowski, S.; Huber, H. P.; Gökce, B. J. Phys. D: Appl. Phys. 2023, 56, 104001. doi:10.1088/1361-6463/acbaaa |
| 193. | Shih, C.-Y.; Shugaev, M. V.; Wu, C.; Zhigilei, L. V. J. Phys. Chem. C 2017, 121, 16549–16567. doi:10.1021/acs.jpcc.7b02301 |
| 206. | Riahi, F.; Bußmann, A.; Doñate-Buendia, C.; Adami, S.; Adams, N. A.; Barcikowski, S.; Gökce, B. Photonics Res. 2023, 11, 2054–2071. doi:10.1364/prj.498204 |
| 55. | Khairani, I. Y.; Spellauge, M.; Riahi, F.; Huber, H. P.; Gökce, B.; Doñate‐Buendía, C. Adv. Photonics Res. 2024, 5, 2300290. doi:10.1002/adpr.202300290 |
| 56. | Gatsa, O.; Tahir, S.; Flimelová, M.; Riahi, F.; Doñate-Buendia, C.; Gökce, B.; Bulgakov, A. V. Nanomaterials 2024, 14, 365. doi:10.3390/nano14040365 |
| 205. | Dell'Aglio, M.; Gaudiuso, R.; ElRashedy, R.; De Pascale, O.; Palazzo, G.; De Giacomo, A. Phys. Chem. Chem. Phys. 2013, 15, 20868. doi:10.1039/c3cp54194k |
| 208. | Nastulyavichus, A.; Kudryashov, S.; Ionin, A.; Gonchukov, S. Laser Phys. Lett. 2022, 19, 045603. doi:10.1088/1612-202x/ac581a |
| 143. | Ryabchikov, Y. V.; Kana, A.; Mirza, I. Crystals 2025, 15, 132. doi:10.3390/cryst15020132 |
| 208. | Nastulyavichus, A.; Kudryashov, S.; Ionin, A.; Gonchukov, S. Laser Phys. Lett. 2022, 19, 045603. doi:10.1088/1612-202x/ac581a |
| 59. | Menéndez-Manjón, A.; Wagener, P.; Barcikowski, S. J. Phys. Chem. C 2011, 115, 5108–5114. doi:10.1021/jp109370q |
| 168. | Smirnov, N. A.; Kudryashov, S. I.; Rudenko, А. А.; Nastulyavichus, A. A.; Ionin, A. A. Laser Phys. Lett. 2022, 19, 026001. doi:10.1088/1612-202x/ac46ab |
| 143. | Ryabchikov, Y. V.; Kana, A.; Mirza, I. Crystals 2025, 15, 132. doi:10.3390/cryst15020132 |
| 170. | Nastulyavichus, A.; Smirnov, N.; Kudryashov, S. Chin. Phys. B 2022, 31, 077803. doi:10.1088/1674-1056/ac5602 |
| 143. | Ryabchikov, Y. V.; Kana, A.; Mirza, I. Crystals 2025, 15, 132. doi:10.3390/cryst15020132 |
| 54. | Waag, F.; Streubel, R.; Gökce, B.; Barcikowski, S. Appl. Nanosci. 2021, 11, 1303–1312. doi:10.1007/s13204-021-01693-y |
| 132. | Mostafa, A. M.; Mwafy, E. A. Environ. Nanotechnol. Monit. Manage. 2020, 14, 100382. doi:10.1016/j.enmm.2020.100382 |
| 139. | Pyatenko, A.; Shimokawa, K.; Yamaguchi, M.; Nishimura, O.; Suzuki, M. Appl. Phys. A: Mater. Sci. Process. 2004, 79, 803–806. doi:10.1007/s00339-004-2841-5 |
| 168. | Smirnov, N. A.; Kudryashov, S. I.; Rudenko, А. А.; Nastulyavichus, A. A.; Ionin, A. A. Laser Phys. Lett. 2022, 19, 026001. doi:10.1088/1612-202x/ac46ab |
| 20. | Kanitz, A.; Hoppius, J. S.; Fiebrandt, M.; Awakowicz, P.; Esen, C.; Ostendorf, A.; Gurevich, E. L. Appl. Phys. A: Mater. Sci. Process. 2017, 123, 674. doi:10.1007/s00339-017-1280-z |
| 208. | Nastulyavichus, A.; Kudryashov, S.; Ionin, A.; Gonchukov, S. Laser Phys. Lett. 2022, 19, 045603. doi:10.1088/1612-202x/ac581a |
| 59. | Menéndez-Manjón, A.; Wagener, P.; Barcikowski, S. J. Phys. Chem. C 2011, 115, 5108–5114. doi:10.1021/jp109370q |
| 208. | Nastulyavichus, A.; Kudryashov, S.; Ionin, A.; Gonchukov, S. Laser Phys. Lett. 2022, 19, 045603. doi:10.1088/1612-202x/ac581a |
| 134. | Guillén, G. G.; Palma, M. I. M.; Krishnan, B.; Avellaneda, D.; Castillo, G. A.; Roy, T. K. D.; Shaji, S. Mater. Chem. Phys. 2015, 162, 561–570. doi:10.1016/j.matchemphys.2015.06.030 |
| 140. | Marrapu, H.; Avasarala, R.; Soma, V. R.; Balivada, S. K.; Podagatlapalli, G. K. RSC Adv. 2020, 10, 41217–41228. doi:10.1039/d0ra05942k |
| 141. | Al-Mamun, S. A.; Nakajima, R.; Ishigaki, T. J. Colloid Interface Sci. 2013, 392, 172–182. doi:10.1016/j.jcis.2012.10.027 |
| 142. | Podagatlapalli, G. K.; Hamad, S.; Mohiddon, M. A.; Rao, S. V. Laser Phys. Lett. 2015, 12, 036003. doi:10.1088/1612-2011/12/3/036003 |
| 170. | Nastulyavichus, A.; Smirnov, N.; Kudryashov, S. Chin. Phys. B 2022, 31, 077803. doi:10.1088/1674-1056/ac5602 |
| 138. | Intartaglia, R.; Bagga, K.; Brandi, F. Opt. Express 2014, 22, 3117–3127. doi:10.1364/oe.22.003117 |
| 208. | Nastulyavichus, A.; Kudryashov, S.; Ionin, A.; Gonchukov, S. Laser Phys. Lett. 2022, 19, 045603. doi:10.1088/1612-202x/ac581a |
| 170. | Nastulyavichus, A.; Smirnov, N.; Kudryashov, S. Chin. Phys. B 2022, 31, 077803. doi:10.1088/1674-1056/ac5602 |
| 141. | Al-Mamun, S. A.; Nakajima, R.; Ishigaki, T. J. Colloid Interface Sci. 2013, 392, 172–182. doi:10.1016/j.jcis.2012.10.027 |
| 146. | Summers, A. M.; Yu, X.; Wang, X.; Raoul, M.; Nelson, J.; Todd, D.; Zigo, S.; Lei, S.; Trallero-Herrero, C. A. Opt. Express 2017, 25, 1646–1655. doi:10.1364/oe.25.001646 |
| 211. | Indrišiūnas, S.; Voisiat, B.; Gedvilas, M.; Račiukaitis, G. J. Laser Appl. 2017, 29, 011501. doi:10.2351/1.4976679 |
| 212. | Hauschwitz, P.; Martan, J.; Bičišťová, R.; Beltrami, C.; Moskal, D.; Brodsky, A.; Kaplan, N.; Mužík, J.; Štepánková, D.; Brajer, J.; Rostohar, D.; Kopeček, J.; Prokešová, L.; Honner, M.; Lang, V.; Smrž, M.; Mocek, T. Sci. Rep. 2021, 11, 22944. doi:10.1038/s41598-021-02290-3 |
| 146. | Summers, A. M.; Yu, X.; Wang, X.; Raoul, M.; Nelson, J.; Todd, D.; Zigo, S.; Lei, S.; Trallero-Herrero, C. A. Opt. Express 2017, 25, 1646–1655. doi:10.1364/oe.25.001646 |
| 210. | Silvennoinen, M.; Kaakkunen, J.; Paivasaari, K.; Vahimaa, P. Opt. Express 2014, 22, 2603–2608. doi:10.1364/oe.22.002603 |
| 142. | Podagatlapalli, G. K.; Hamad, S.; Mohiddon, M. A.; Rao, S. V. Laser Phys. Lett. 2015, 12, 036003. doi:10.1088/1612-2011/12/3/036003 |
| 142. | Podagatlapalli, G. K.; Hamad, S.; Mohiddon, M. A.; Rao, S. V. Laser Phys. Lett. 2015, 12, 036003. doi:10.1088/1612-2011/12/3/036003 |
| 213. | Vandenhouten, R.; Hermerschmidt, A.; Fiebelkorn, R. Design and quality metrics of point patterns for coded structured light illumination with diffractive optical elements in optical 3D sensors. In SPIE Proceedings; Kress, B. C.; Osten, W.; Urbach, H. P., Eds.; SPIE, 2017; Vol. 10335, pp 1033518 ff. doi:10.1117/12.2270248 |
| 214. | Satya Bharati, M. S.; Chandu, B.; Rao, S. V. RSC Adv. 2019, 9, 1517–1525. doi:10.1039/c8ra08462a |
| 1. | Zhang, D.; Gökce, B.; Barcikowski, S. Chem. Rev. 2017, 117, 3990–4103. doi:10.1021/acs.chemrev.6b00468 |
| 2. | Fazio, E.; Gökce, B.; De Giacomo, A.; Meneghetti, M.; Compagnini, G.; Tommasini, M.; Waag, F.; Lucotti, A.; Zanchi, C. G.; Ossi, P. M.; Dell’Aglio, M.; D’Urso, L.; Condorelli, M.; Scardaci, V.; Biscaglia, F.; Litti, L.; Gobbo, M.; Gallo, G.; Santoro, M.; Trusso, S.; Neri, F. Nanomaterials 2020, 10, 2317. doi:10.3390/nano10112317 |
| 3. | Yang, G. W. Prog. Mater. Sci. 2007, 52, 648–698. doi:10.1016/j.pmatsci.2006.10.016 |
| 4. | Zeng, H.; Du, X.-W.; Singh, S. C.; Kulinich, S. A.; Yang, S.; He, J.; Cai, W. Adv. Funct. Mater. 2012, 22, 1333–1353. doi:10.1002/adfm.201102295 |
| 5. | Khairani, I. Y.; Mínguez-Vega, G.; Doñate-Buendía, C.; Gökce, B. Phys. Chem. Chem. Phys. 2023, 25, 19380–19408. doi:10.1039/d3cp01214j |
| 140. | Marrapu, H.; Avasarala, R.; Soma, V. R.; Balivada, S. K.; Podagatlapalli, G. K. RSC Adv. 2020, 10, 41217–41228. doi:10.1039/d0ra05942k |
| 60. | Doñate-Buendía, C.; Fernández-Alonso, M.; Lancis, J.; Mínguez-Vega, G. Photonics Res. 2019, 7, 1249. doi:10.1364/prj.7.001249 |
| 144. | Lim, K. Y.; Quinto-Su, P. A.; Klaseboer, E.; Khoo, B. C.; Venugopalan, V.; Ohl, C.-D. Phys. Rev. E: Stat., Nonlinear, Soft Matter Phys. 2010, 81, 016308. doi:10.1103/physreve.81.016308 |
| 60. | Doñate-Buendía, C.; Fernández-Alonso, M.; Lancis, J.; Mínguez-Vega, G. Photonics Res. 2019, 7, 1249. doi:10.1364/prj.7.001249 |
| 145. | Andrews, D. L. Structured Light and Its Applications: An Introduction to Phase-Structured Beams and Nanoscale Optical Forces; Academic Press, 2008. doi:10.1016/b978-0-12-374027-4.x0001-1 |
| 209. | Kress, B.; Hejmadi, V. Proc. SPIE 2010, 7716, 77161J. doi:10.1117/12.859086 |
| 140. | Marrapu, H.; Avasarala, R.; Soma, V. R.; Balivada, S. K.; Podagatlapalli, G. K. RSC Adv. 2020, 10, 41217–41228. doi:10.1039/d0ra05942k |
| 60. | Doñate-Buendía, C.; Fernández-Alonso, M.; Lancis, J.; Mínguez-Vega, G. Photonics Res. 2019, 7, 1249. doi:10.1364/prj.7.001249 |
| 12. | Ahmed, S. F.; Mofijur, M.; Rafa, N.; Chowdhury, A. T.; Chowdhury, S.; Nahrin, M.; Islam, A. B. M. S.; Ong, H. C. Environ. Res. 2022, 204, 111967. doi:10.1016/j.envres.2021.111967 |
| 204. | Doñate-Buendia, C.; Spellauge, M.; Streubel, R.; Riahi, F.; Barcikowski, S.; Huber, H. P.; Gökce, B. J. Phys. D: Appl. Phys. 2023, 56, 104001. doi:10.1088/1361-6463/acbaaa |
| 9. | Kanitz, A.; Kalus, M.-R.; Gurevich, E. L.; Ostendorf, A.; Barcikowski, S.; Amans, D. Plasma Sources Sci. Technol. 2019, 28, 103001. doi:10.1088/1361-6595/ab3dbe |
| 10. | Long, J.; Eliceiri, M.; Vangelatos, Z.; Rho, Y.; Wang, L.; Su, Z.; Xie, X.; Zhang, Y.; Grigoropoulos, C. P. Opt. Express 2020, 28, 14300. doi:10.1364/oe.391584 |
| 11. | Shaheen, M. E.; Abdelwahab, A. Y. E. Opt. Laser Technol. 2025, 186, 112705. doi:10.1016/j.optlastec.2025.112705 |
| 8. | Mehta, K.; Kumar, P.; Kushawaha, R. K.; Baruah, P. K. J. Laser Appl. 2024, 36, 042005. doi:10.2351/7.0001613 |
| 140. | Marrapu, H.; Avasarala, R.; Soma, V. R.; Balivada, S. K.; Podagatlapalli, G. K. RSC Adv. 2020, 10, 41217–41228. doi:10.1039/d0ra05942k |
| 1. | Zhang, D.; Gökce, B.; Barcikowski, S. Chem. Rev. 2017, 117, 3990–4103. doi:10.1021/acs.chemrev.6b00468 |
| 6. | Fojtik, A.; Giersig, M.; Henglein, A. Ber. Bunsen-Ges. 1993, 97, 1493–1496. doi:10.1002/bbpc.19930971112 |
| 7. | Henglein, A. J. Phys. Chem. 1993, 97, 5457–5471. doi:10.1021/j100123a004 |
| 141. | Al-Mamun, S. A.; Nakajima, R.; Ishigaki, T. J. Colloid Interface Sci. 2013, 392, 172–182. doi:10.1016/j.jcis.2012.10.027 |
| 205. | Dell'Aglio, M.; Gaudiuso, R.; ElRashedy, R.; De Pascale, O.; Palazzo, G.; De Giacomo, A. Phys. Chem. Chem. Phys. 2013, 15, 20868. doi:10.1039/c3cp54194k |
| 14. | Jendrzej, S.; Gökce, B.; Epple, M.; Barcikowski, S. ChemPhysChem 2017, 18, 1012–1019. doi:10.1002/cphc.201601139 |
| 15. | Crivellaro, S.; Guadagnini, A.; Arboleda, D. M.; Schinca, D.; Amendola, V. Rev. Sci. Instrum. 2019, 90, 033902. doi:10.1063/1.5083811 |
| 14. | Jendrzej, S.; Gökce, B.; Epple, M.; Barcikowski, S. ChemPhysChem 2017, 18, 1012–1019. doi:10.1002/cphc.201601139 |
| 13. | Coviello, V.; Forrer, D.; Amendola, V. ChemPhysChem 2022, 23, e202200136. doi:10.1002/cphc.202200136 |
| 154. | Tang, Y.; Perrie, W.; Rico Sierra, D.; Li, Q.; Liu, D.; Edwardson, S. P.; Dearden, G. Micromachines 2021, 12, 376. doi:10.3390/mi12040376 |
| 55. | Khairani, I. Y.; Spellauge, M.; Riahi, F.; Huber, H. P.; Gökce, B.; Doñate‐Buendía, C. Adv. Photonics Res. 2024, 5, 2300290. doi:10.1002/adpr.202300290 |
| 154. | Tang, Y.; Perrie, W.; Rico Sierra, D.; Li, Q.; Liu, D.; Edwardson, S. P.; Dearden, G. Micromachines 2021, 12, 376. doi:10.3390/mi12040376 |
| 60. | Doñate-Buendía, C.; Fernández-Alonso, M.; Lancis, J.; Mínguez-Vega, G. Photonics Res. 2019, 7, 1249. doi:10.1364/prj.7.001249 |
| 155. | Veysset, D.; Gutiérrez-Hernández, U.; Dresselhaus-Cooper, L.; De Colle, F.; Kooi, S.; Nelson, K. A.; Quinto-Su, P. A.; Pezeril, T. Phys. Rev. E 2018, 97, 053112. doi:10.1103/physreve.97.053112 |
| 151. | Syubaev, S.; Zhizhchenko, A.; Kuchmizhak, A.; Porfirev, A.; Pustovalov, E.; Vitrik, O.; Kulchin, Y.; Khonina, S.; Kudryashov, S. Opt. Express 2017, 25, 10214–10223. doi:10.1364/oe.25.010214 |
| 152. | Toyoda, K.; Miyamoto, K.; Aoki, N.; Morita, R.; Omatsu, T. Nano Lett. 2012, 12, 3645–3649. doi:10.1021/nl301347j |
| 53. | Streubel, R.; Barcikowski, S.; Gökce, B. Opt. Lett. 2016, 41, 1486. doi:10.1364/ol.41.001486 |
| 151. | Syubaev, S.; Zhizhchenko, A.; Kuchmizhak, A.; Porfirev, A.; Pustovalov, E.; Vitrik, O.; Kulchin, Y.; Khonina, S.; Kudryashov, S. Opt. Express 2017, 25, 10214–10223. doi:10.1364/oe.25.010214 |
| 55. | Khairani, I. Y.; Spellauge, M.; Riahi, F.; Huber, H. P.; Gökce, B.; Doñate‐Buendía, C. Adv. Photonics Res. 2024, 5, 2300290. doi:10.1002/adpr.202300290 |
| 147. | Zhan, Q. Adv. Opt. Photonics 2009, 1, 1–57. doi:10.1364/aop.1.000001 |
| 153. | Nivas, J. J. J.; Shutong, H.; Anoop, K. K.; Rubano, A.; Fittipaldi, R.; Vecchione, A.; Paparo, D.; Marrucci, L.; Bruzzese, R.; Amoruso, S. Opt. Lett. 2015, 40, 4611–4614. doi:10.1364/ol.40.004611 |
| 154. | Tang, Y.; Perrie, W.; Rico Sierra, D.; Li, Q.; Liu, D.; Edwardson, S. P.; Dearden, G. Micromachines 2021, 12, 376. doi:10.3390/mi12040376 |
| 56. | Gatsa, O.; Tahir, S.; Flimelová, M.; Riahi, F.; Doñate-Buendia, C.; Gökce, B.; Bulgakov, A. V. Nanomaterials 2024, 14, 365. doi:10.3390/nano14040365 |
| 151. | Syubaev, S.; Zhizhchenko, A.; Kuchmizhak, A.; Porfirev, A.; Pustovalov, E.; Vitrik, O.; Kulchin, Y.; Khonina, S.; Kudryashov, S. Opt. Express 2017, 25, 10214–10223. doi:10.1364/oe.25.010214 |
| 56. | Gatsa, O.; Tahir, S.; Flimelová, M.; Riahi, F.; Doñate-Buendia, C.; Gökce, B.; Bulgakov, A. V. Nanomaterials 2024, 14, 365. doi:10.3390/nano14040365 |
| 142. | Podagatlapalli, G. K.; Hamad, S.; Mohiddon, M. A.; Rao, S. V. Laser Phys. Lett. 2015, 12, 036003. doi:10.1088/1612-2011/12/3/036003 |
| 55. | Khairani, I. Y.; Spellauge, M.; Riahi, F.; Huber, H. P.; Gökce, B.; Doñate‐Buendía, C. Adv. Photonics Res. 2024, 5, 2300290. doi:10.1002/adpr.202300290 |
| 56. | Gatsa, O.; Tahir, S.; Flimelová, M.; Riahi, F.; Doñate-Buendia, C.; Gökce, B.; Bulgakov, A. V. Nanomaterials 2024, 14, 365. doi:10.3390/nano14040365 |
| 215. | Ma, J.; Wong, K. S.; Li, S.; Chen, Z.; Zhou, J.; Zhong, Y. J. Opt. Soc. Korea 2015, 19, 63–68. doi:10.3807/josk.2015.19.1.063 |
| 149. | Grünewald, J.; Gehringer, F.; Schmöller, M.; Wudy, K. Metals (Basel, Switz.) 2021, 11, 1989. doi:10.3390/met11121989 |
| 150. | Jian, C.; Ye, Z.; Pickel, A. D. J. Appl. Phys. 2022, 132, 245104. doi:10.1063/5.0103369 |
| 55. | Khairani, I. Y.; Spellauge, M.; Riahi, F.; Huber, H. P.; Gökce, B.; Doñate‐Buendía, C. Adv. Photonics Res. 2024, 5, 2300290. doi:10.1002/adpr.202300290 |
| 56. | Gatsa, O.; Tahir, S.; Flimelová, M.; Riahi, F.; Doñate-Buendia, C.; Gökce, B.; Bulgakov, A. V. Nanomaterials 2024, 14, 365. doi:10.3390/nano14040365 |
| 147. | Zhan, Q. Adv. Opt. Photonics 2009, 1, 1–57. doi:10.1364/aop.1.000001 |
| 148. | Dorn, R.; Quabis, S.; Leuchs, G. Phys. Rev. Lett. 2003, 91, 233901. doi:10.1103/physrevlett.91.233901 |
| 53. | Streubel, R.; Barcikowski, S.; Gökce, B. Opt. Lett. 2016, 41, 1486. doi:10.1364/ol.41.001486 |
| 41. | Menazea, A. A. Radiat. Phys. Chem. 2020, 168, 108616. doi:10.1016/j.radphyschem.2019.108616 |
| 50. | Peggiani, S.; Marabotti, P.; Lotti, R. A.; Facibeni, A.; Serafini, P.; Milani, A.; Russo, V.; Li Bassi, A.; Casari, C. S. Phys. Chem. Chem. Phys. 2020, 22, 26312–26321. doi:10.1039/d0cp04132g |
| 41. | Menazea, A. A. Radiat. Phys. Chem. 2020, 168, 108616. doi:10.1016/j.radphyschem.2019.108616 |
| 50. | Peggiani, S.; Marabotti, P.; Lotti, R. A.; Facibeni, A.; Serafini, P.; Milani, A.; Russo, V.; Li Bassi, A.; Casari, C. S. Phys. Chem. Chem. Phys. 2020, 22, 26312–26321. doi:10.1039/d0cp04132g |
| 51. | Yang, L.; May, P. W.; Yin, L.; Brown, R.; Scott, T. B. Chem. Mater. 2006, 18, 5058–5064. doi:10.1021/cm061485e |
| 52. | Zheng, J.; Zheng, Z.; Gong, W.; Hu, X.; Gao, W.; Ren, X.; Zhao, H. Chem. Phys. Lett. 2008, 465, 275–278. doi:10.1016/j.cplett.2008.10.014 |
| 53. | Streubel, R.; Barcikowski, S.; Gökce, B. Opt. Lett. 2016, 41, 1486. doi:10.1364/ol.41.001486 |
| 54. | Waag, F.; Streubel, R.; Gökce, B.; Barcikowski, S. Appl. Nanosci. 2021, 11, 1303–1312. doi:10.1007/s13204-021-01693-y |
| 55. | Khairani, I. Y.; Spellauge, M.; Riahi, F.; Huber, H. P.; Gökce, B.; Doñate‐Buendía, C. Adv. Photonics Res. 2024, 5, 2300290. doi:10.1002/adpr.202300290 |
| 62. | Scaramuzza, S.; de Faria, C. M. G.; Coviello, V.; Forrer, D.; Artiglia, L.; Badocco, D.; Pastore, P.; Ghigna, P.; Postuma, I.; Cansolino, L.; Ferrari, C.; Bortolussi, S.; Vago, R.; Spinelli, A. E.; Bekić, M.; Čolić, M.; Amendola, V. Adv. Funct. Mater. 2023, 33, 2303366. doi:10.1002/adfm.202303366 |
| 61. | Kohsakowski, S.; Santagata, A.; Dell’Aglio, M.; de Giacomo, A.; Barcikowski, S.; Wagener, P.; Gökce, B. Appl. Surf. Sci. 2017, 403, 487–499. doi:10.1016/j.apsusc.2017.01.077 |
| 5. | Khairani, I. Y.; Mínguez-Vega, G.; Doñate-Buendía, C.; Gökce, B. Phys. Chem. Chem. Phys. 2023, 25, 19380–19408. doi:10.1039/d3cp01214j |
| 35. | Gurbatov, S. O.; Puzikov, V.; Storozhenko, D.; Modin, E.; Mitsai, E.; Cherepakhin, A.; Shevlyagin, A.; Gerasimenko, A. V.; Kulinich, S. A.; Kuchmizhak, A. A. ACS Appl. Mater. Interfaces 2023, 15, 3336–3347. doi:10.1021/acsami.2c18999 |
| 53. | Streubel, R.; Barcikowski, S.; Gökce, B. Opt. Lett. 2016, 41, 1486. doi:10.1364/ol.41.001486 |
| 54. | Waag, F.; Streubel, R.; Gökce, B.; Barcikowski, S. Appl. Nanosci. 2021, 11, 1303–1312. doi:10.1007/s13204-021-01693-y |
| 58. | Monsa, Y.; Gal, G.; Lerner, N.; Bar, I. Nanotechnology 2020, 31, 235601. doi:10.1088/1361-6528/ab78ac |
| 59. | Menéndez-Manjón, A.; Wagener, P.; Barcikowski, S. J. Phys. Chem. C 2011, 115, 5108–5114. doi:10.1021/jp109370q |
| 60. | Doñate-Buendía, C.; Fernández-Alonso, M.; Lancis, J.; Mínguez-Vega, G. Photonics Res. 2019, 7, 1249. doi:10.1364/prj.7.001249 |
| 55. | Khairani, I. Y.; Spellauge, M.; Riahi, F.; Huber, H. P.; Gökce, B.; Doñate‐Buendía, C. Adv. Photonics Res. 2024, 5, 2300290. doi:10.1002/adpr.202300290 |
| 56. | Gatsa, O.; Tahir, S.; Flimelová, M.; Riahi, F.; Doñate-Buendia, C.; Gökce, B.; Bulgakov, A. V. Nanomaterials 2024, 14, 365. doi:10.3390/nano14040365 |
| 57. | Wagener, P.; Schwenke, A.; Chichkov, B. N.; Barcikowski, S. J. Phys. Chem. C 2010, 114, 7618–7625. doi:10.1021/jp911243a |
| 62. | Scaramuzza, S.; de Faria, C. M. G.; Coviello, V.; Forrer, D.; Artiglia, L.; Badocco, D.; Pastore, P.; Ghigna, P.; Postuma, I.; Cansolino, L.; Ferrari, C.; Bortolussi, S.; Vago, R.; Spinelli, A. E.; Bekić, M.; Čolić, M.; Amendola, V. Adv. Funct. Mater. 2023, 33, 2303366. doi:10.1002/adfm.202303366 |
| 63. | Aiyyzhy, K. O.; Barmina, E. V.; Zavestovskaya, I. N.; Kasatova, A. I.; Petrunya, D. S.; Uvarov, O. V.; Saraykin, V. V.; Zhilnikova, M. I.; Voronov, V. V.; Shafeev, G. A.; Taskaev, S. Y.; Zelepukin, I. V.; Deyev, S. M. Laser Phys. Lett. 2022, 19, 066002. doi:10.1088/1612-202x/ac642c |
| 64. | Pereira, P. F. S.; de Paula e Silva, A. C. A.; da Silva Pimentel, B. N. A.; Pinatti, I. M.; Simões, A. Z.; Vergani, C. E.; Barreto-Vieira, D. F.; da Silva, M. A. N.; Miranda, M. D.; Monteiro, M. E. S.; Tucci, A.; Doñate-Buendía, C.; Mínguez-Vega, G.; Andrés, J.; Longo, E. Sci. Rep. 2022, 12, 8118. doi:10.1038/s41598-022-11902-5 |
| 65. | Mwenze, N. M.; Juma, M.; Maaza, M.; Birech, Z.; Dhlamini, M. S. Mater. Today: Proc. 2023, in press. doi:10.1016/j.matpr.2023.08.195 |
| 42. | Fernández-Arias, M.; Vilas, A. M.; Boutinguiza, M.; Rodríguez, D.; Arias-González, F.; Pou-Álvarez, P.; Riveiro, A.; Gil, J.; Pou, J. Nanomaterials 2022, 12, 2621. doi:10.3390/nano12152621 |
| 66. | Mostafa, A. M.; Mwafy, E. A.; Hasanin, M. S. Opt. Laser Technol. 2020, 121, 105824. doi:10.1016/j.optlastec.2019.105824 |
| 76. | Cortes, F. R. U.; Falomir, E.; Lancis, J.; Mínguez-Vega, G. Appl. Surf. Sci. 2024, 665, 160326. doi:10.1016/j.apsusc.2024.160326 |
| 77. | Chen, T.; Yang, F.; Wu, X.; Chen, Y.; Yang, G. Carbon 2020, 167, 196–201. doi:10.1016/j.carbon.2020.06.003 |
| 78. | Ji, S.; Li, P.; Zhao, X.; Wei, S.; Cheng, X.; Wu, L.; Ye, Y.; Ma, K.; Cai, Y.; Liang, C. Sens. Actuators, B 2023, 383, 133595. doi:10.1016/j.snb.2023.133595 |
| 79. | Lanza, G.; Betancourth, D.; Avila, A.; Riascos, H.; Perez-Taborda, J. A. Kuwait J. Sci. 2025, 52, 100294. doi:10.1016/j.kjs.2024.100294 |
| 73. | Doñate-Buendia, C.; Torres-Mendieta, R.; Pyatenko, A.; Falomir, E.; Fernández-Alonso, M.; Mínguez-Vega, G. ACS Omega 2018, 3, 2735–2742. doi:10.1021/acsomega.7b02082 |
| 74. | Zwiehoff, S.; Johny, J.; Behrends, C.; Landmann, A.; Mentzel, F.; Bäumer, C.; Kröninger, K.; Rehbock, C.; Timmermann, B.; Barcikowski, S. Small 2022, 18, 2106383. doi:10.1002/smll.202106383 |
| 75. | Popov, A. L.; Kolmanovich, D. D.; Chukavin, N. N.; Zelepukin, I. V.; Tikhonowski, G. V.; Pastukhov, A. I.; Popov, A. A.; Shemyakov, A. E.; Klimentov, S. M.; Ryabov, V. A.; Deyev, S. M.; Zavestovskaya, I. N.; Kabashin, A. V. Molecules 2024, 29, 3936. doi:10.3390/molecules29163936 |
| 70. | Amendola, V.; Guadagnini, A.; Agnoli, S.; Badocco, D.; Pastore, P.; Fracasso, G.; Gerosa, M.; Vurro, F.; Busato, A.; Marzola, P. J. Colloid Interface Sci. 2021, 596, 332–341. doi:10.1016/j.jcis.2021.03.096 |
| 71. | Pastukhov, A. I.; Shipunova, V. O.; Babkova, J. S.; Zelepukin, I. V.; Raab, M.; Schmitt, R.; Al-Kattan, A.; Pliss, A.; Kuzmin, A.; Popov, A. A.; Klimentov, S. M.; Prasad, P. N.; Deyev, S. M.; Kabashin, A. V. ACS Appl. Nano Mater. 2024, 7, 18737–18754. doi:10.1021/acsanm.4c01970 |
| 72. | Riedel, R.; Mahr, N.; Yao, C.; Wu, A.; Yang, F.; Hampp, N. Nanoscale 2020, 12, 3007–3018. doi:10.1039/c9nr07129f |
| 67. | Geoffrion, L. D.; Hesabizadeh, T.; Medina-Cruz, D.; Kusper, M.; Taylor, P.; Vernet-Crua, A.; Chen, J.; Ajo, A.; Webster, T. J.; Guisbiers, G. ACS Omega 2020, 5, 2660–2669. doi:10.1021/acsomega.9b03172 |
| 68. | Fernández-Arias, M.; Boutinguiza, M.; Del Val, J.; Covarrubias, C.; Bastias, F.; Gómez, L.; Maureira, M.; Arias-González, F.; Riveiro, A.; Pou, J. Appl. Surf. Sci. 2020, 507, 145032. doi:10.1016/j.apsusc.2019.145032 |
| 67. | Geoffrion, L. D.; Hesabizadeh, T.; Medina-Cruz, D.; Kusper, M.; Taylor, P.; Vernet-Crua, A.; Chen, J.; Ajo, A.; Webster, T. J.; Guisbiers, G. ACS Omega 2020, 5, 2660–2669. doi:10.1021/acsomega.9b03172 |
| 69. | Khashan, K. S.; Abdulameer, F. A.; Jabir, M. S.; Hadi, A. A.; Sulaiman, G. M. Adv. Nat. Sci.: Nanosci. Nanotechnol. 2020, 11, 035010. doi:10.1088/2043-6254/aba1de |
| 22. | Lam, J.; Lombard, J.; Dujardin, C.; Ledoux, G.; Merabia, S.; Amans, D. Appl. Phys. Lett. 2016, 108, 074104. doi:10.1063/1.4942389 |
| 23. | Chemin, A.; Fawaz, M. W.; Amans, D. Appl. Surf. Sci. 2022, 574, 151592. doi:10.1016/j.apsusc.2021.151592 |
| 24. | Lee, S. J.; Theerthagiri, J.; Choi, M. Y. Chem. Eng. J. 2022, 427, 130970. doi:10.1016/j.cej.2021.130970 |
| 25. | Ando, K.; Nakajima, T. Nanoscale 2020, 12, 9640–9646. doi:10.1039/c9nr10560c |
| 9. | Kanitz, A.; Kalus, M.-R.; Gurevich, E. L.; Ostendorf, A.; Barcikowski, S.; Amans, D. Plasma Sources Sci. Technol. 2019, 28, 103001. doi:10.1088/1361-6595/ab3dbe |
| 19. | Dell’Aglio, M.; Santagata, A.; Valenza, G.; De Stradis, A.; De Giacomo, A. ChemPhysChem 2017, 18, 1165–1174. doi:10.1002/cphc.201601231 |
| 20. | Kanitz, A.; Hoppius, J. S.; Fiebrandt, M.; Awakowicz, P.; Esen, C.; Ostendorf, A.; Gurevich, E. L. Appl. Phys. A: Mater. Sci. Process. 2017, 123, 674. doi:10.1007/s00339-017-1280-z |
| 21. | Berthe, L.; Fabbro, R.; Peyre, P.; Tollier, L.; Bartnicki, E. J. Appl. Phys. 1997, 82, 2826–2832. doi:10.1063/1.366113 |
| 17. | Sobhan, M. A.; Ams, M.; Withford, M. J.; Goldys, E. M. J. Nanopart. Res. 2010, 12, 2831–2842. doi:10.1007/s11051-010-9868-7 |
| 18. | Spellauge, M.; Doñate-Buendía, C.; Barcikowski, S.; Gökce, B.; Huber, H. P. Light: Sci. Appl. 2022, 11, 68. doi:10.1038/s41377-022-00751-6 |
| 16. | Ming, W.; Hu, S.; Xie, Z.; Zhang, F.; Zhang, G.; Guo, X.; Huang, H. Opt. Laser Technol. 2024, 174, 110618. doi:10.1016/j.optlastec.2024.110618 |
| 29. | Amendola, V.; Amans, D.; Ishikawa, Y.; Koshizaki, N.; Scirè, S.; Compagnini, G.; Reichenberger, S.; Barcikowski, S. Chem. – Eur. J. 2020, 26, 9206–9242. doi:10.1002/chem.202000686 |
| 30. | Abed, M. A.; Mutlak, F. A.-H.; Ahmed, A. F.; Nayef, U. M.; Abdulridha, S. K.; Jabir, M. S. J. Phys.: Conf. Ser. 2021, 1795, 012013. doi:10.1088/1742-6596/1795/1/012013 |
| 26. | Chen, C.; Zhigilei, L. V. Light: Sci. Appl. 2022, 11, 111. doi:10.1038/s41377-022-00800-0 |
| 27. | Shih, C.-Y.; Shugaev, M. V.; Wu, C.; Zhigilei, L. V. Phys. Chem. Chem. Phys. 2020, 22, 15769. doi:10.1039/d0cp90142c |
| 28. | Rehbock, C.; Jakobi, J.; Gamrad, L.; van der Meer, S.; Tiedemann, D.; Taylor, U.; Kues, W.; Rath, D.; Barcikowski, S. Beilstein J. Nanotechnol. 2014, 5, 1523–1541. doi:10.3762/bjnano.5.165 |
| 205. | Dell'Aglio, M.; Gaudiuso, R.; ElRashedy, R.; De Pascale, O.; Palazzo, G.; De Giacomo, A. Phys. Chem. Chem. Phys. 2013, 15, 20868. doi:10.1039/c3cp54194k |
| 204. | Doñate-Buendia, C.; Spellauge, M.; Streubel, R.; Riahi, F.; Barcikowski, S.; Huber, H. P.; Gökce, B. J. Phys. D: Appl. Phys. 2023, 56, 104001. doi:10.1088/1361-6463/acbaaa |
| 204. | Doñate-Buendia, C.; Spellauge, M.; Streubel, R.; Riahi, F.; Barcikowski, S.; Huber, H. P.; Gökce, B. J. Phys. D: Appl. Phys. 2023, 56, 104001. doi:10.1088/1361-6463/acbaaa |
| 193. | Shih, C.-Y.; Shugaev, M. V.; Wu, C.; Zhigilei, L. V. J. Phys. Chem. C 2017, 121, 16549–16567. doi:10.1021/acs.jpcc.7b02301 |
| 198. | Wang, Q.; Luo, S.; Chen, Z.; Qi, H.; Deng, J.; Hu, Z. Opt. Laser Technol. 2016, 80, 116–124. doi:10.1016/j.optlastec.2016.01.001 |
| 199. | Gedvilas, M.; Mikšys, J.; Berzinš, J.; Stankevič, V.; Račiukaitis, G. Sci. Rep. 2017, 7, 5218. doi:10.1038/s41598-017-05548-x |
| 200. | Guillermin, M.; Liebig, C.; Garrelie, F.; Stoian, R.; Loir, A.-S.; Audouard, E. Appl. Surf. Sci. 2009, 255, 5163–5166. doi:10.1016/j.apsusc.2008.07.207 |
| 201. | Zhu, D.; Yan, J.; Xie, J. Opt. Lett. 2020, 45, 1758–1761. doi:10.1364/ol.384326 |
| 202. | Li, B.; Jiang, L.; Li, X.; Cheng, Z.; Ran, P.; Zuo, P.; Qu, L.; Zhang, J.; Lu, Y. Adv. Funct. Mater. 2019, 29, 1806229. doi:10.1002/adfm.201806229 |
| 203. | Li, X.; Zhang, G.; Jiang, L.; Shi, X.; Zhang, K.; Rong, W.; Duan, J.; Lu, Y. Opt. Express 2015, 23, 4226–4232. doi:10.1364/oe.23.004226 |
| 18. | Spellauge, M.; Doñate-Buendía, C.; Barcikowski, S.; Gökce, B.; Huber, H. P. Light: Sci. Appl. 2022, 11, 68. doi:10.1038/s41377-022-00751-6 |
| 204. | Doñate-Buendia, C.; Spellauge, M.; Streubel, R.; Riahi, F.; Barcikowski, S.; Huber, H. P.; Gökce, B. J. Phys. D: Appl. Phys. 2023, 56, 104001. doi:10.1088/1361-6463/acbaaa |
| 18. | Spellauge, M.; Doñate-Buendía, C.; Barcikowski, S.; Gökce, B.; Huber, H. P. Light: Sci. Appl. 2022, 11, 68. doi:10.1038/s41377-022-00751-6 |
| 173. | Dittrich, S.; Spellauge, M.; Barcikowski, S.; Huber, H. P.; Gökce, B. Opto-Electron. Adv. 2022, 5, 210053. doi:10.29026/oea.2022.210053 |
| 44. | Mostafa, A. M.; Mwafy, E. A. J. Mater. Res. Technol. 2020, 9, 3241–3248. doi:10.1016/j.jmrt.2020.01.071 |
| 45. | Heidarinassab, S.; Nyabadza, A.; Ahad, I. U.; Brabazon, D. Materials 2024, 17, 4527. doi:10.3390/ma17184527 |
| 46. | Nayak, S. K.; Ahmed, M. S.; Velpandian, M.; Meduri, P.; Rathod, J.; Soma, V. R.; Raavi, S. S. K. Opt. Mater. (Amsterdam, Neth.) 2024, 147, 114630. doi:10.1016/j.optmat.2023.114630 |
| 47. | Mangababu, A.; Sai Prasad Goud, R.; Byram, C.; Rathod, J.; Banerjee, D.; Rao Soma, V.; Nageswara Rao, S. V. S. Appl. Surf. Sci. 2022, 589, 152802. doi:10.1016/j.apsusc.2022.152802 |
| 48. | Choi, I.; Lee, S.-J.; Kim, J. C.; Kim, Y.-g.; Hyeon, D. Y.; Hong, K.-S.; Suh, J.; Shin, D.; Jeong, H. Y.; Park, K.-I. Appl. Surf. Sci. 2020, 511, 145614. doi:10.1016/j.apsusc.2020.145614 |
| 49. | Jendrzej, S.; Gondecki, L.; Debus, J.; Moldenhauer, H.; Tenberge, P.; Barcikowski, S.; Gökce, B. Appl. Surf. Sci. 2019, 467–468, 811–818. doi:10.1016/j.apsusc.2018.10.060 |
| 39. | Zhang, D.; Li, Z.; Sugioka, K. J. Phys.: Photonics 2021, 3, 042002. doi:10.1088/2515-7647/ac0bfd |
| 40. | Kabashin, A. V.; Meunier, M. J. Appl. Phys. 2003, 94, 7941–7943. doi:10.1063/1.1626793 |
| 41. | Menazea, A. A. Radiat. Phys. Chem. 2020, 168, 108616. doi:10.1016/j.radphyschem.2019.108616 |
| 42. | Fernández-Arias, M.; Vilas, A. M.; Boutinguiza, M.; Rodríguez, D.; Arias-González, F.; Pou-Álvarez, P.; Riveiro, A.; Gil, J.; Pou, J. Nanomaterials 2022, 12, 2621. doi:10.3390/nano12152621 |
| 43. | Das, A.; Akkanaboina, M.; Rathod, J.; Sai Prasad Goud, R.; Ravi Kumar, K.; Reddy, R. C.; Ravendran, R.; Vutova, K.; Nageswara Rao, S. V. S.; Soma, V. R. Beilstein J. Nanotechnol. 2024, 15, 1639–1653. doi:10.3762/bjnano.15.129 |
| 34. | Torres-Mendieta, R.; Ventura-Espinosa, D.; Sabater, S.; Lancis, J.; Mínguez-Vega, G.; Mata, J. A. Sci. Rep. 2016, 6, 30478. doi:10.1038/srep30478 |
| 35. | Gurbatov, S. O.; Puzikov, V.; Storozhenko, D.; Modin, E.; Mitsai, E.; Cherepakhin, A.; Shevlyagin, A.; Gerasimenko, A. V.; Kulinich, S. A.; Kuchmizhak, A. A. ACS Appl. Mater. Interfaces 2023, 15, 3336–3347. doi:10.1021/acsami.2c18999 |
| 36. | Waag, F.; Li, Y.; Ziefuß, A. R.; Bertin, E.; Kamp, M.; Duppel, V.; Marzun, G.; Kienle, L.; Barcikowski, S.; Gökce, B. RSC Adv. 2019, 9, 18547–18558. doi:10.1039/c9ra03254a |
| 37. | Fieser, D.; Lan, Y.; Gulino, A.; Compagnini, G.; Aaron, D.; Mench, M.; Bridges, D.; Shortt, H.; Liaw, P.; Hu, A. Nanomaterials 2024, 14, 554. doi:10.3390/nano14060554 |
| 38. | Tahir, S.; Smoliarova, T.; Doñate-Buendía, C.; Farle, M.; Shkodich, N.; Gökce, B. Beilstein J. Nanotechnol. 2025, 16, 823–836. doi:10.3762/bjnano.16.62 |
| 31. | Xu, X.; Xu, F.; Qu, C.; Jiang, G.; Yu, H.; Repich, H.; Han, H.; Cao, F.; Li, L.; Wang, H. Adv. Funct. Mater. 2021, 31, 2101059. doi:10.1002/adfm.202101059 |
| 32. | Swiatkowska-Warkocka, Z.; Pyatenko, A.; Krok, F.; Jany, B. R.; Marszalek, M. Sci. Rep. 2015, 5, 9849. doi:10.1038/srep09849 |
| 33. | Torresan, V.; Forrer, D.; Guadagnini, A.; Badocco, D.; Pastore, P.; Casarin, M.; Selloni, A.; Coral, D.; Ceolin, M.; Fernández van Raap, M. B.; Busato, A.; Marzola, P.; Spinelli, A. E.; Amendola, V. ACS Nano 2020, 14, 12840–12853. doi:10.1021/acsnano.0c03614 |
© 2026 Molina-Prados et al.; licensee Beilstein-Institut.
This is an open access article licensed under the terms of the Beilstein-Institut Open Access License Agreement (https://www.beilstein-journals.org/bjnano/terms), which is identical to the Creative Commons Attribution 4.0 International License (https://creativecommons.org/licenses/by/4.0). The reuse of material under this license requires that the author(s), source and license are credited. Third-party material in this article could be subject to other licenses (typically indicated in the credit line), and in this case, users are required to obtain permission from the license holder to reuse the material.
